Box Fan Window Mount Brackets
por sina chavoshi en Printables
Pair of brackets that hook over a box fan and sit in the window track, so the fan stands securely in an open window.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a sina chavoshi.
Archivos (1)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

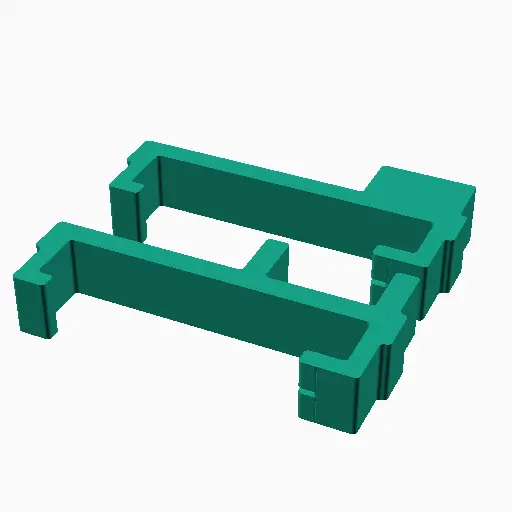

Two brackets that clamp over the frame of a box fan and hold it in a window. The top bracket has a block that drops into the window track; the bottom bracket has none. Hooks at both ends grab the fan, with small teeth on one side for grip. - Both brackets on one plate, 124 × 114 × 22 mm
- Set for a 105.6 mm thick fan frame and a 37 mm window track
Customize it in your browser This model is fully parametric. Measure your fan and window, then change fan_thickness, window_track_width, the hook drop and the number of teeth. Open it in the free OpenSCAD Playground, change the numbers and export your own STL: Open it in OpenSCAD Playground Source The OpenSCAD source and the rest of my models are on GitHub: github.com/SinaChavoshi/3d_printer_agentic_models Designed with AI assistance in OpenSCAD.
Descripción original del autor, publicada en Printables.
