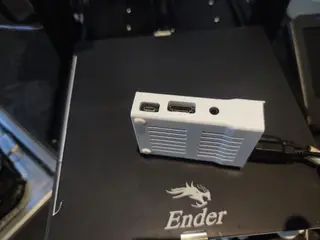

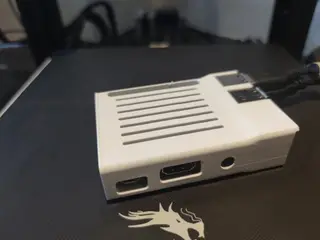

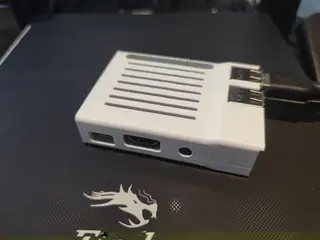

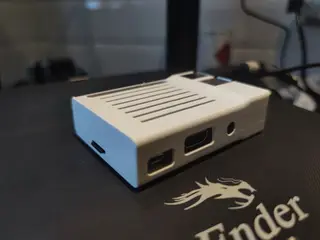

Boltless Raspberry Pi 3B+ case (3, 2 & B+ also fit) - More Cooling, Less Material Used, Printer Mounting Rail
This is a remix of https://www.thingiverse.com/thing:2844013 which is itself based on several other models.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a teun95.
Archivos (4)
- Case_half_rail.stl STL · 1,2 MB
- Case_no_rail.stl STL · 1,3 MB
- Cover.stl STL · 52 KB
- Case_full_rail.stl STL · 1,2 MB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 203
- Publicado
Sobre este modelo
This is a remix of https://www.thingiverse.com/thing:2844013 which is itself based on several other models.
The following is changed: - Scaled the width of the models to 101% - Deepened the indentations of the ports by 0.5mm - Made the bottom 75% (approximately) of the case much thinner, saving material. - Added feet to the bottom of the case so the bottom of the Pi is cooled better - Added rails to the side of the case for mounting on an Ender 3 (v2) or printer that uses the same extrusion profiles - Increased the connector hole sizes to ensure that cables always fit and alignment is not a problem
No bolts or nuts are needed for this case. The lid/cover is held in place by friction and the ports.

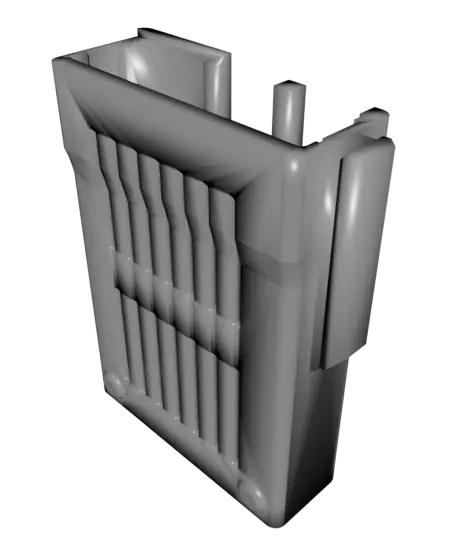

The rail on the side of the case is optional, but it's ideal for mounting it on a 2020/2040 aluminum extrusion v-slot profile. This includes the Ender 3 (v2).
The model with half a rail makes it possible to mount the case under the LCD panel.
