Boiler Lamp - Steampunk Porthole E27 Lamp Shade with Pipe Table and Wall Stand

A riveted boiler barrel with six bolted portholes, vertical straps, banded hoops and a toothed collar. The light escapes through the portholes and the shoulder vents. The stand is built like plumbing: a pipe-elbow arm with flanges and a pressure gauge, a collared riveted column and a two-tier riveted base.

One design, three ways to use it:

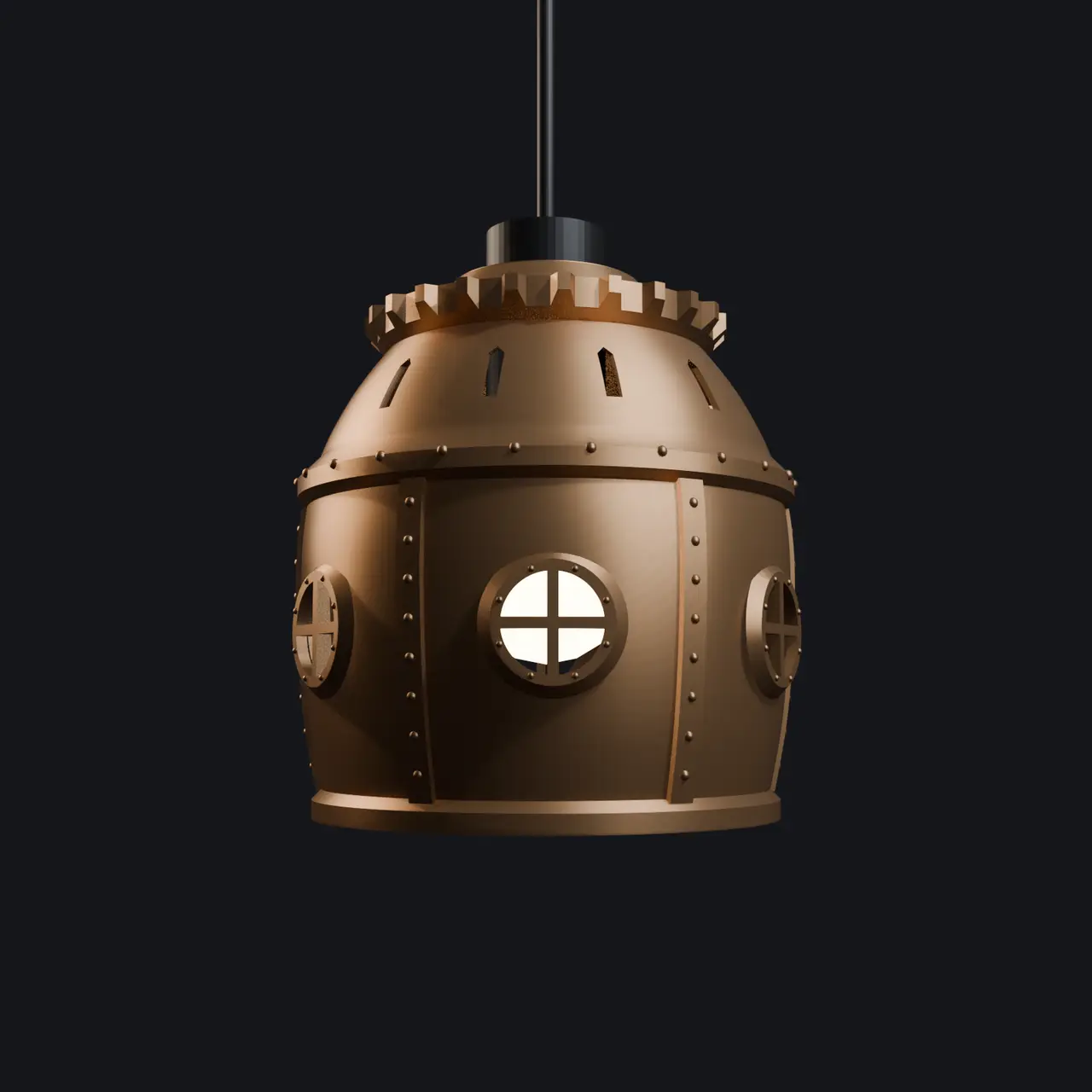

- PENDANT: hang the shade from the ceiling on any standard E27 pendant cord set.

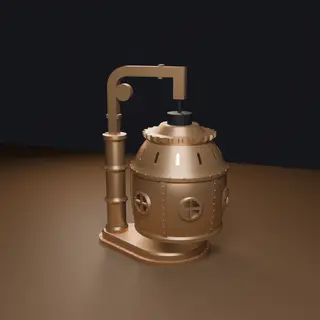

- TABLE LAMP: the shade hangs from the arm of a steampunk stand. The shade hangs over a wide base,

so the lamp is very stable (it needs a tilt of about 24 degrees to tip over).

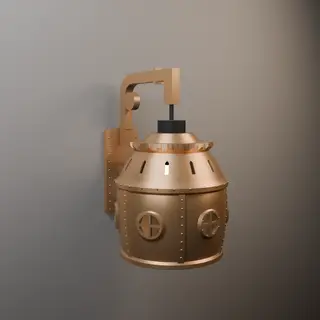

- WALL LAMP: the same arm drops into a wall plate fixed with two screws.

No rewiring, no glue, no screws in the lamp itself: you only need a standard E27 pendant cord set

(cable + lamp holder with shade ring) and an LED bulb. The cable snaps into hidden channels of the

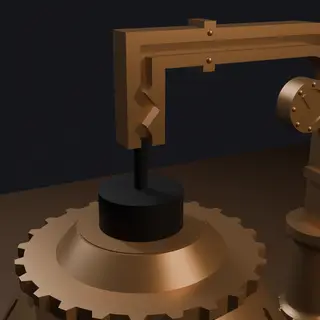

stand, and a zig-zag cable grip at the tip of the arm holds the shade at the height you choose.

Every part prints without supports and is already oriented in the STL files.

WHAT TO PRINT

- Pendant lamp ...... Shade

- Table lamp ........ Shade + Arm + Table_Column + Table_Base

- Wall lamp ......... Shade + Arm + Wall_Plate

PARAMETERS

- Shade: 165 mm diameter x 176 mm high. 6 portholes with bolted bezels and cross bars, 6 riveted straps, 2 riveted hoops, 24-tooth collar.

- Stand: pipe-elbow arm with flanges and pressure gauge, collared riveted column, two-tier riveted base, riveted wall plate with porthole.

- Mounting hole: 40.5 mm diameter with a 3 mm thick flat clamping area (standard E27 holder

with threaded sleeve and shade ring).

- Table lamp assembled: 231 x 165 x 314 mm (L x W x H), about 876 g printed

including the shade. Static tip-over angle about 24 deg in the weakest direction.

- Wall lamp: projects 218 mm from the wall, 269 mm high in total.

- Joints: 12 x 14 mm rectangular pegs in 12.5 x 14.5 mm sockets (0.25 mm clearance per side).

- Cable channel: snap-in, 5.4 mm mouth / 6.8 mm inside, for round 2-core cords of 6-7 mm.

- Bulb: A60 LED (60 x 108 mm) or LED filament ST64 / G80; at least 24 mm from glass to plastic.

- Approximate filament: shade 312 g, arm 49 g, column 99 g,

base 301 g, wall plate 78 g.
