BM Aether 4 - The 4 inch unibody FPV drone frame

Notice: This model and the contents below is exclusive to MakerWorld. Any remixes or original copies found on other sites are not uploaded by me and may potentially be fraudulent or become outdated at any time. If you wish to upload this model to other sites, you must include an explicit link leading back to this MakerWorld page and clearly display the author's name. This is mandatory. This is also ensure everyone can download the up-to-date model as I will continue to improve them here.

License Update Notification - October 14, 2024: Effective October 14, 2024, I have decided that this model will become part of the MakerWorld exclusive program, officially. The license for this model will transition to a Standard Digital License. You are permitted to download and use this file in accordance with the license terms; however, you are prohibited from sharing this model or its derivatives digitially on any other online resource platform, whether free or paid. Please be advised that this change will not affect models downloaded prior to this date, which will retain their original CC-BY license. Should you require additional permissions beyond the scope of this license, such as for commercial production, we invite you to contact us to obtain further authorization.

Join Breeze Model Pilot Group here https://www.facebook.com/groups/1165452208203912

BTW: Print this to host your VTX – by GiBi https://makerworld.com/en/models/1609574-aether-moonlight-mount#profileId-1697720

------------

Boost MeYour support inspires me to pursue even more exciting projects! Thank you.

Introduction

This is the Aether 以太 4, a fully 3D-printed unibody FPV frame for 4/4.5 inch drones, inspired by nature and biomimetic design.

------------

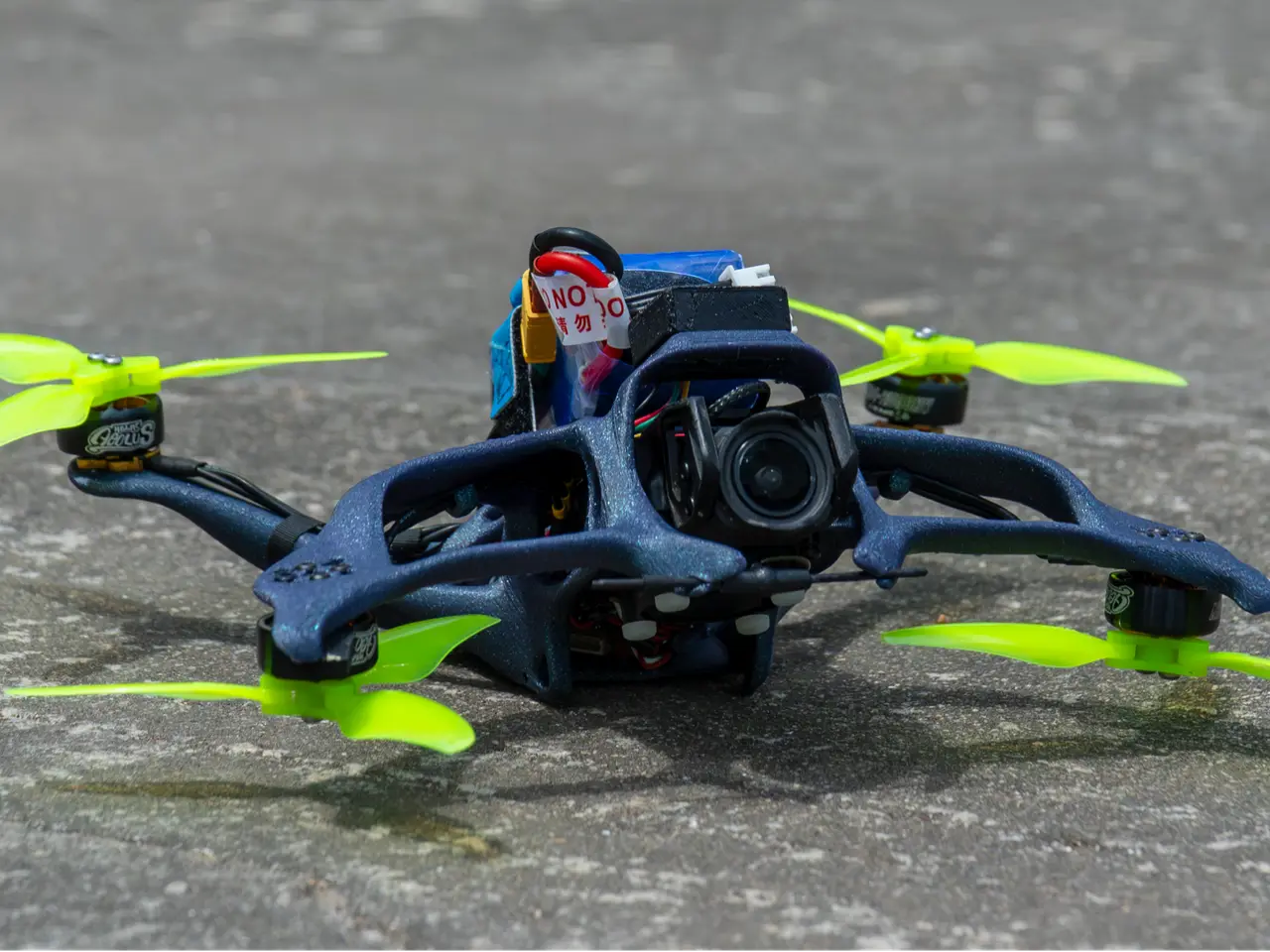

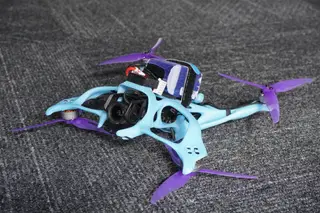

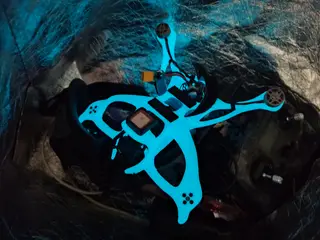

4.5 inch Prop, Bambu Lab Grow PLA What is it good at

- No frame assembly required. Unibody design, printed in one piece.

- It's rigid yet lightweight—strong but still under 40 grams.

- True X layout, good pitch authority. Not a DC nor squashed X.

- No prop in view. (DJI O3 wide-angle mode)

- Low-cost. One roll of filament prints up to 20 copies.

- Aerodynamic design. Efficient and low cruising throttle.

- Sub 250g with 10min+ air time.

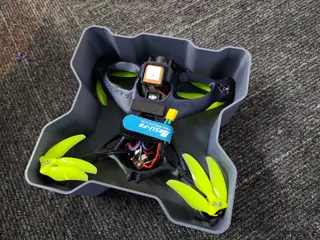

- Modification and accessories. Find out more below.

- Customization. Choose your own print setting, materials, or modify the model.

Data you may want to know FC and ESC: 20 x 20mm stack OR 25.5 x 25.5mm AIO Motors: 9 x 9mm pitch OR 12 x 12mm pitch Prop: Maximum 4.5 inch. VTX: Any VTX that Pavo 20 Chassis supported. DJI O3, Cadicx Vista or RunCam Link. Motor Pitch: ~185mm x 185mm - X layout. Sweep Angle: 28deg Frame Weight: ~40g @ 2 walls

Please see below setup examples. Sub250 Setup (My Setup) TOW: ~250g Motor: Darwin 1504 kv2300 or HLG 1404 kv2800 Prop: GemFan 4525-3 (4.5 inch) or GemFan 4024-2 (4 inch) Battery: Boshi LiPO P7 850mAh 4S, ~93g Cruising Time: ~12 min Freestyle Time: ~6 min

FreeStyle Setup Frames: Printed with 3 walls Motor: 2006 kv1900 or 2204 kv1800 Prop: GemFan 4525-3 (4.5 inch) Battery: 6S 850mAh-1300mAh

Long Range Setup Motor: 1404 KV2800 Prop: GemFan 4525-3 (4.5 inch) or 4 inch low pitch 2 blades props Battery: 4S 3000mAh 18650 Li-ion Cruising time: >30min

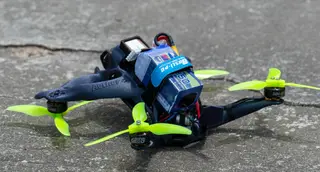

Freestyle

--------

How to Print Before explaining the prints, I want to mention that the O3 unit and VTX is sit inside the BetaFPV PAVO 20 VTX chassis which is NOT provided in the print file. You need to purchase one of this to complete the drone. There maybe 3D printed alternatives but I haven't tested any of them. BetaFPV PAVO 20 Chassis

Please Note:

- The frame was designed to print without infill, infill add little to no strength in this frame.

- The frame is optimzed for the placement and rotation in the print file.

- The supports in the print file are painted and are nessessary for better edges and surface finishs.
