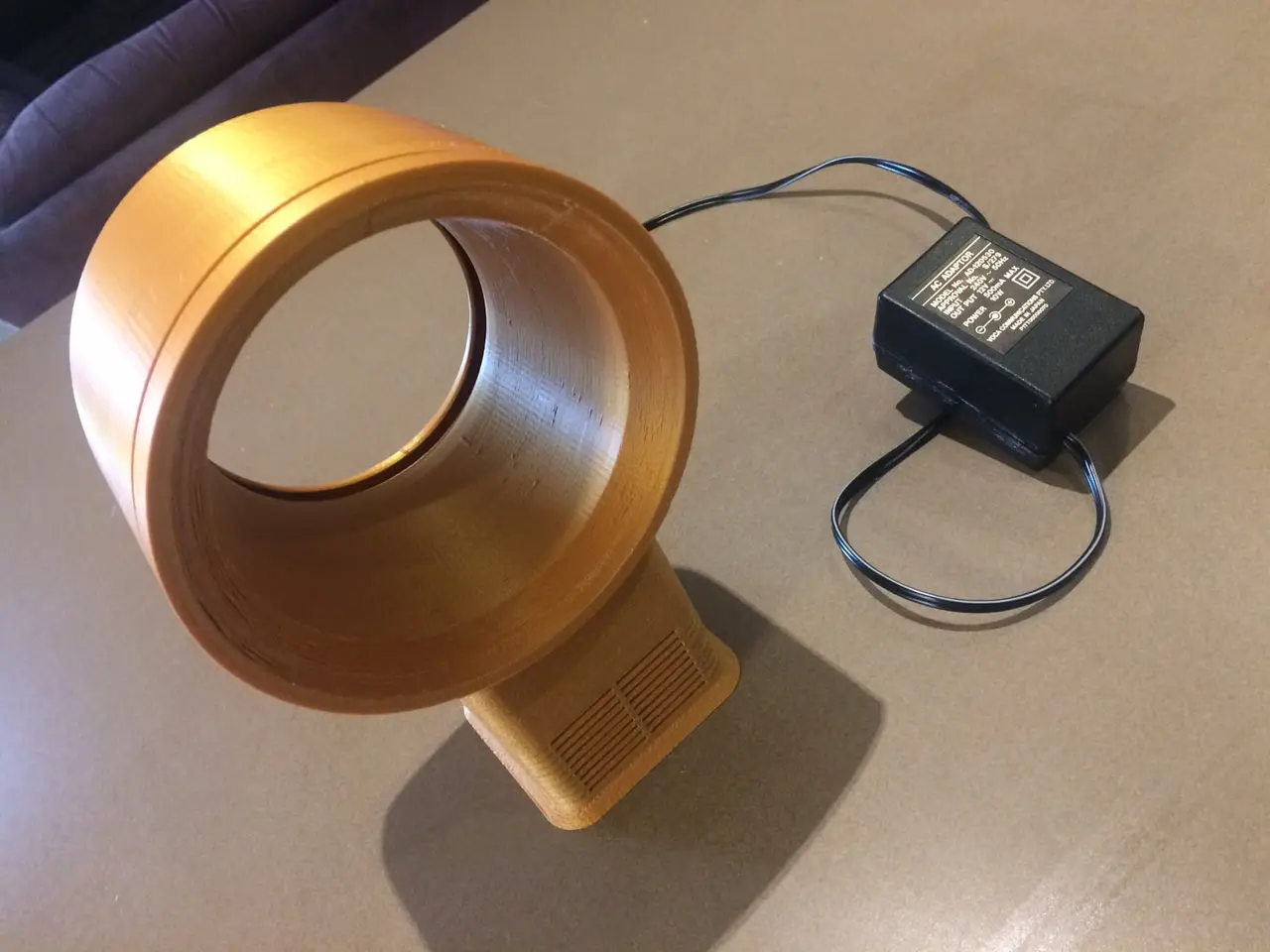

Bladeless Desk Fan — modelo 3D

Bladeless Desk Fan

por Dylan Weaver en Thingiverse

UPDATE Wow, thanks everyone for your support, I am delighted this desk fan has sparked so much interest, especially considering it was my first ever attempt at 3D CAD. Unfortunately I haven't been as responsive to people's comments and requests as I'd hoped to be, therefore I have uploaded STEP and.

Descargar los 7 archivos Ver en Thingiverse

7 archivos · 10,4 MB · se descargan uno tras otro

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a Dylan Weaver.

Archivos (7)
Categoría
Hogar
Formatos
STL, STEP, F3Z, F3D
Descargas
51,609
Publicado

Sobre este modelo

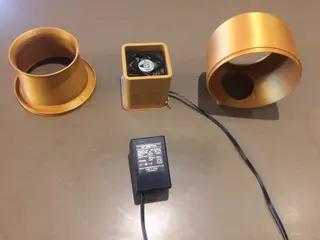

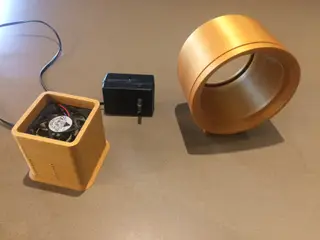

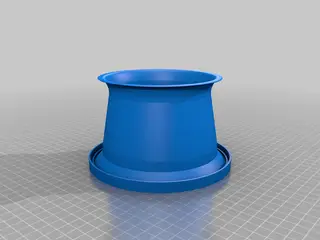

UPDATE Wow, thanks everyone for your support, I am delighted this desk fan has sparked so much interest, especially considering it was my first ever attempt at 3D CAD. Unfortunately I haven't been as responsive to people's comments and requests as I'd hoped to be, therefore I have uploaded STEP and Fusion Archive files for the most recent iteration of my desk fan; The fan head is complete, but the120mm fan base still needs some work, such as testing, and holes for the switch and cord; unfortunately I have overwritten my original 70mm fan base design. I needed a new desk fan at work, was just getting into Fusion 360 and had a spare 70mm computer fan and 12 volt transformer lying around; so what to do, make a bladeless fan of course. This fan is really easy to print and assemble, the soldering of wires is about as difficult as it gets. Assembly: - Mount the computer fan inside the base on top of it's support. - Feed wires through hole in support. - Solder fan and transformer wires to a switch (I bought a basic switch from my local electronics store). - Insert the Fan Inner into the Fan Outer, no gluing required, should snap in place and hold. - Insert the Fan Inner/Outer into the base. --Too easy!

Descripción original del autor, publicada en Thingiverse.
