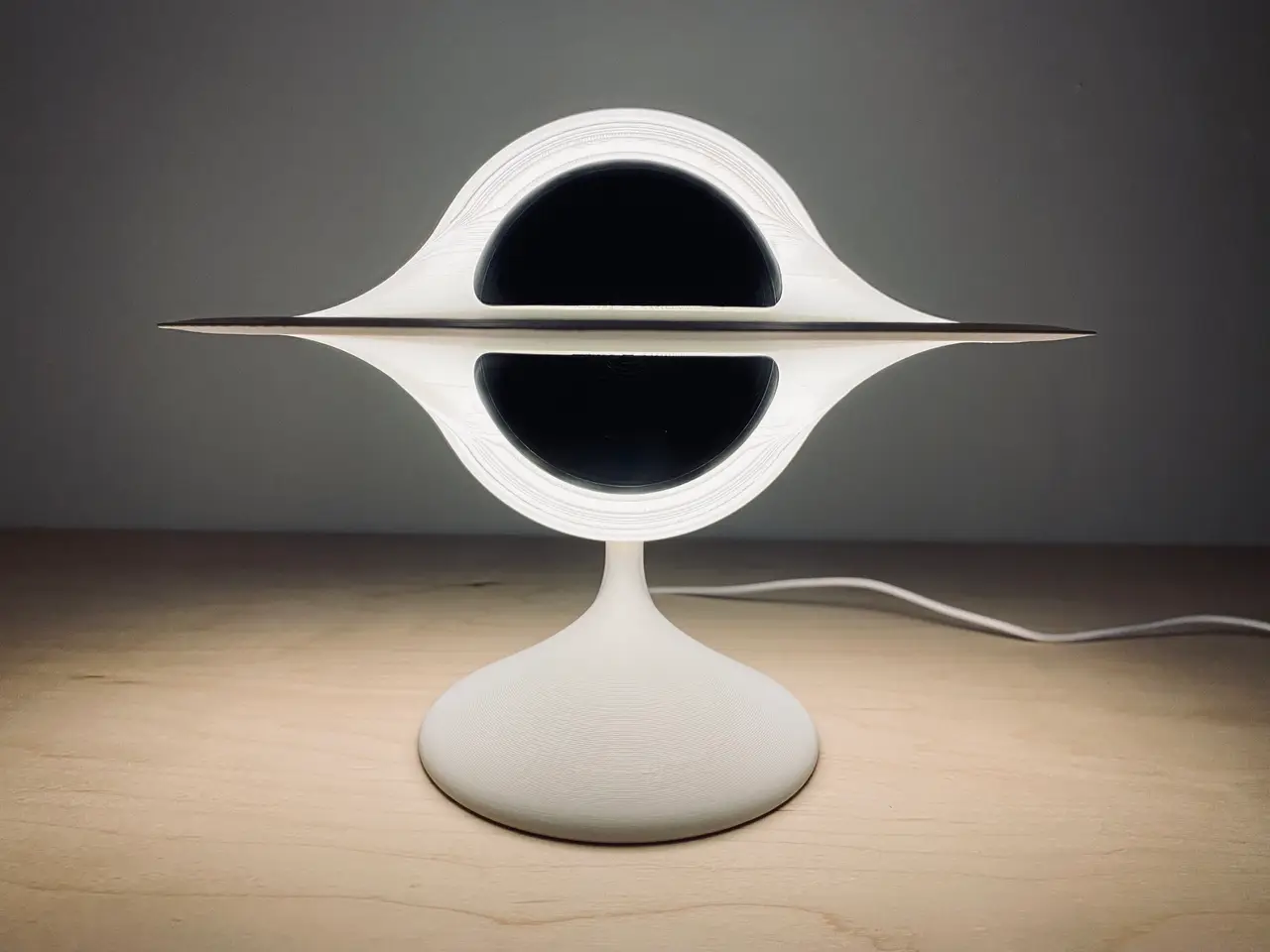

Black Hole Lamp
por NAM_3 en Printables
The second version of this design is out now! Link is in the description.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a NAM_3.
Archivos (9)
- Categoría
- Figuras y arte
- Formatos
- STL, STEP
- Descargas
- 3,612
- Publicado
Sobre este modelo

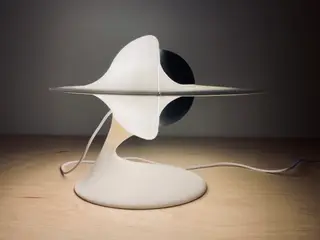

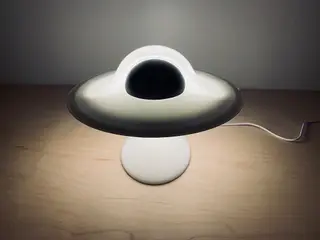

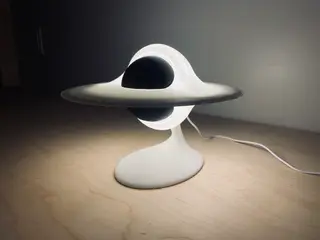

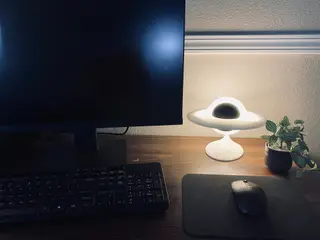

UPDATE: Version 2 is out now! Go check it out here. This is a light up display lamp that looks like a black hole. It requires only two colors of filament and an LED Lamp Kit 001. Use the adhesive pad that comes with the kit to secure the light in the lamp so it doesn’t accidentally fall out of place. This model does also print in multiple parts that will need to be glued together (I recommend using super glue or 3D Gloop). Make sure the parts are properly aligned, the light is securely in place with the adhesive pad, and the cord is fed out of the back of the lamp before attempting to glue everything together. Precise gluing is required. Use the print settings specified for each part. Print Settings "LightFront" and "LightBack": - white or clear filament
- 100% infill
- enable brim with a very low brim-object gap and consider applying adhesive onto the build plate to prevent warping
- optional: enable supports
"BlackParts": - black filament
- 100% infill
- enable supports
"Stand": - 5-15% infill
- 3 wall loops
Descripción original del autor, publicada en Printables.
