Bike Wall Mount Clip
por ensoniq2k en Printables
A parameterized bike wall mount clip to fit virtually any tire size (not tested on a fat bike but even 100 mm tyre…
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.
Al descargar aceptas respetar la licencia y dar crédito a ensoniq2k.
Archivos (7)
- Categoría
- Jardín
- Formatos
- STL, F3D
- Descargas
- 2,157
- Publicado
Sobre este modelo
A parameterized bike wall mount clip to fit virtually any tire size (not tested on a fat bike but even 100 mm tyre width scale nicely).
A Fusion 360 File is provided so you can change the parameters yourself for your desired tyre size. I provided a variety of sizes that fit my bikes.

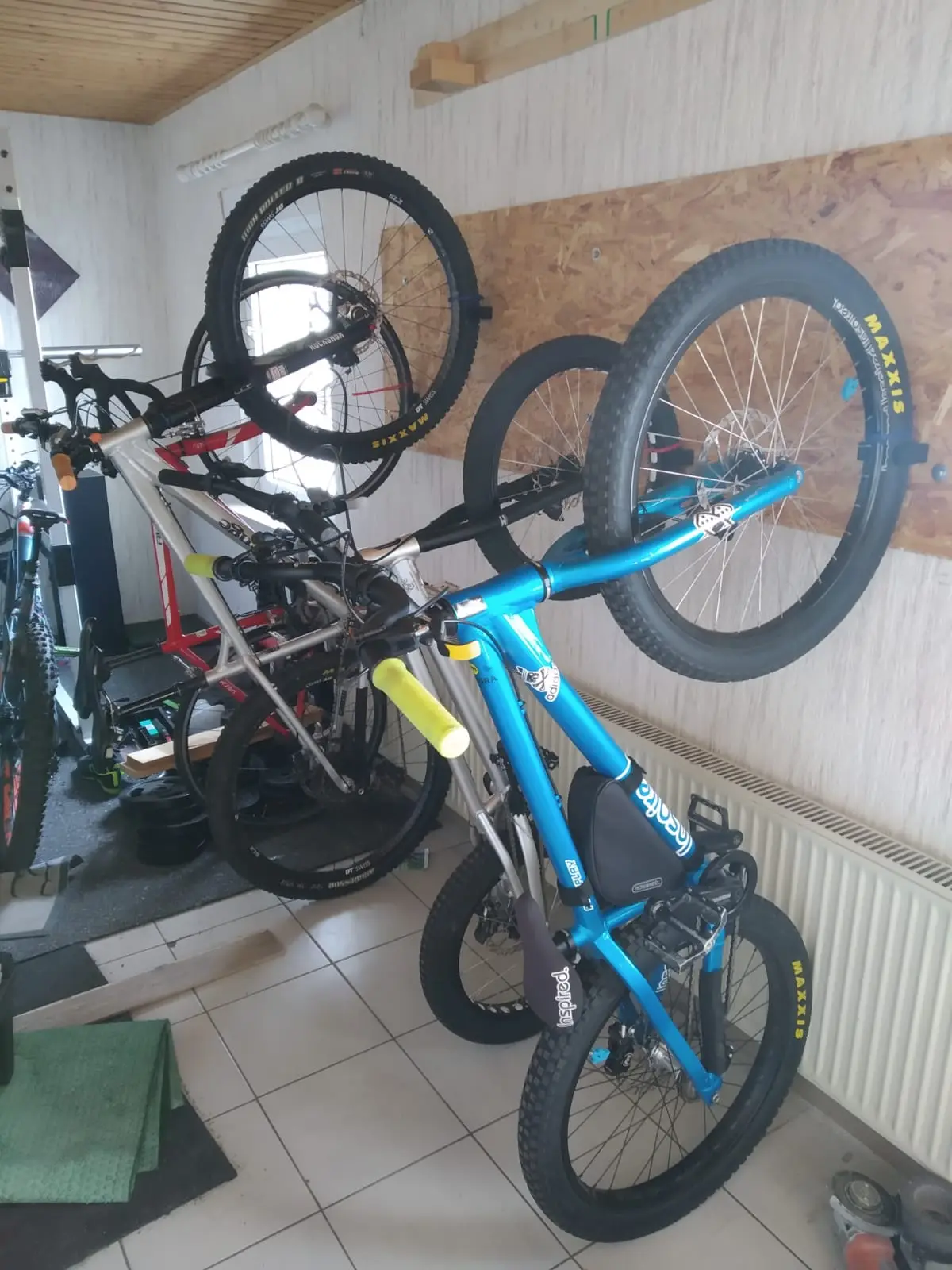

Don't be fooled by the additional zip tie in the example image, the clips can hold the bikes all by themselves. But if your tyre goes almost flat the bike will drop out so I added an additional safety measure. Happens especially fast on narrow road bike tyres.
The design is completely inspired by the one below but designed from scratch: https://www.prusaprinters.org/prints/5260-bike-holder-parametric/
Print instructions Should be printed in PETG/ABS or the likes because it needs some flex when clipping the tyre in. Nothing special, I printed in 0.3 mm layer height with 20% infill, that's all.
Descripción original del autor, publicada en Printables.
