I really liked the idea of the bike stand by bandit-ed. I had some aluminium-tubes laying around with a diameter of 25.3 mm. Since no source files were available I designed my own version of the stand in Fusion 360.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalMyMiniFactory - Credit - Remix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Florian Kleiner.
Archivos (4)
- bottom.stl STL
- feet.stl STL
- middle.stl STL
- top.stl STL
- Categoría
- Repuestos
- Formatos
- STL
- Descargas
- 505
- Publicado
Sobre este modelo

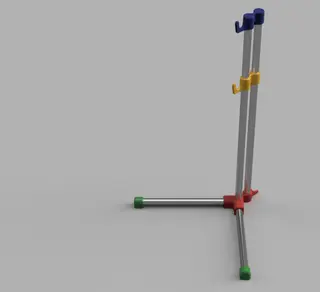

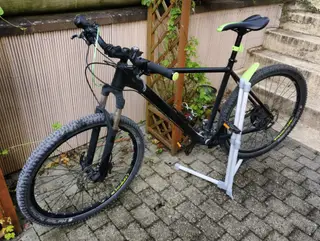

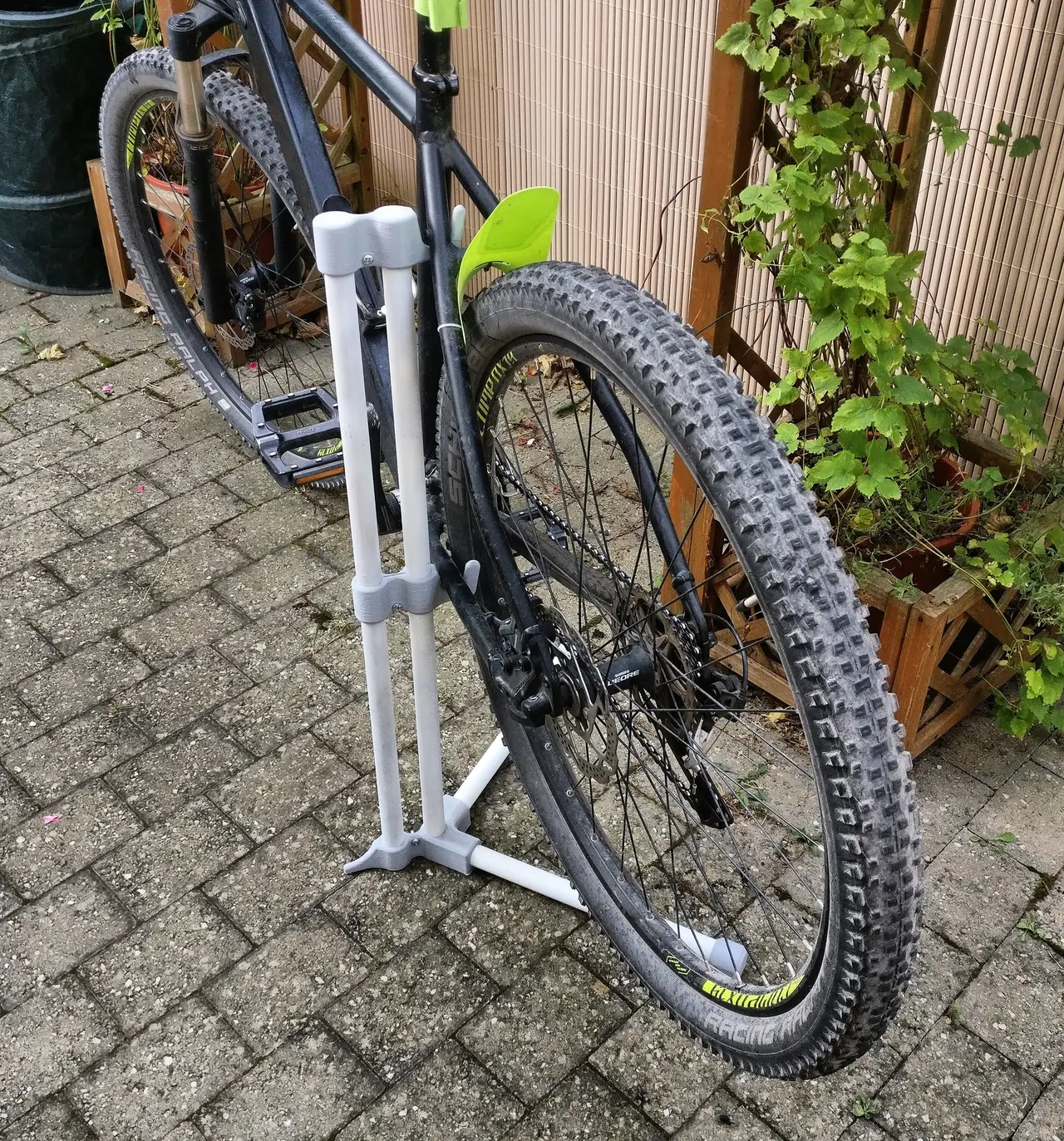

I really liked the idea of the bike stand by bandit-ed. I had some aluminium-tubes laying around with a diameter of 25.3 mm. Since no source files were available I designed my own version of the stand in Fusion 360.
You will need 3 M5 screws and nuts to press-fit the parts.

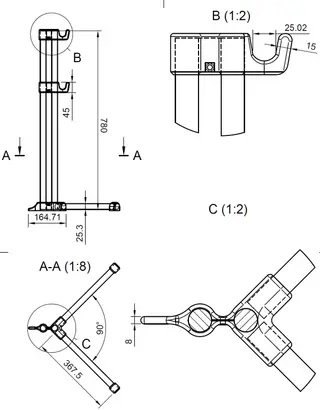

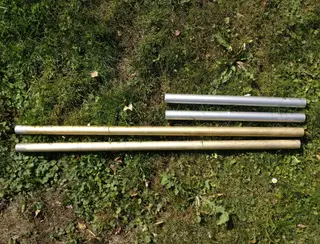

Tubes with a slightly smaller or bigger diameter should also fit. I used the following lengths:
2 x 780 mm 2 x 367 mm
You can find the fusion 360 file here if you want to modify the model.
