Bifold Door Holder, 65°, for 35 mm Panels
por CoCo en Printables
Holds a bifold door open at 65°: a cap that presses over both panels at the hinge. No tools, no screws.
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a CoCo.
- Categoría
- Hogar
- Formatos
- 3MF, STL
- Descargas
- 0
- Publicado
Sobre este modelo

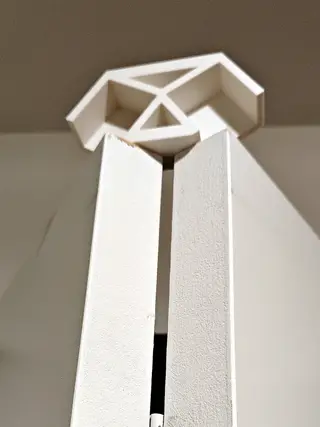

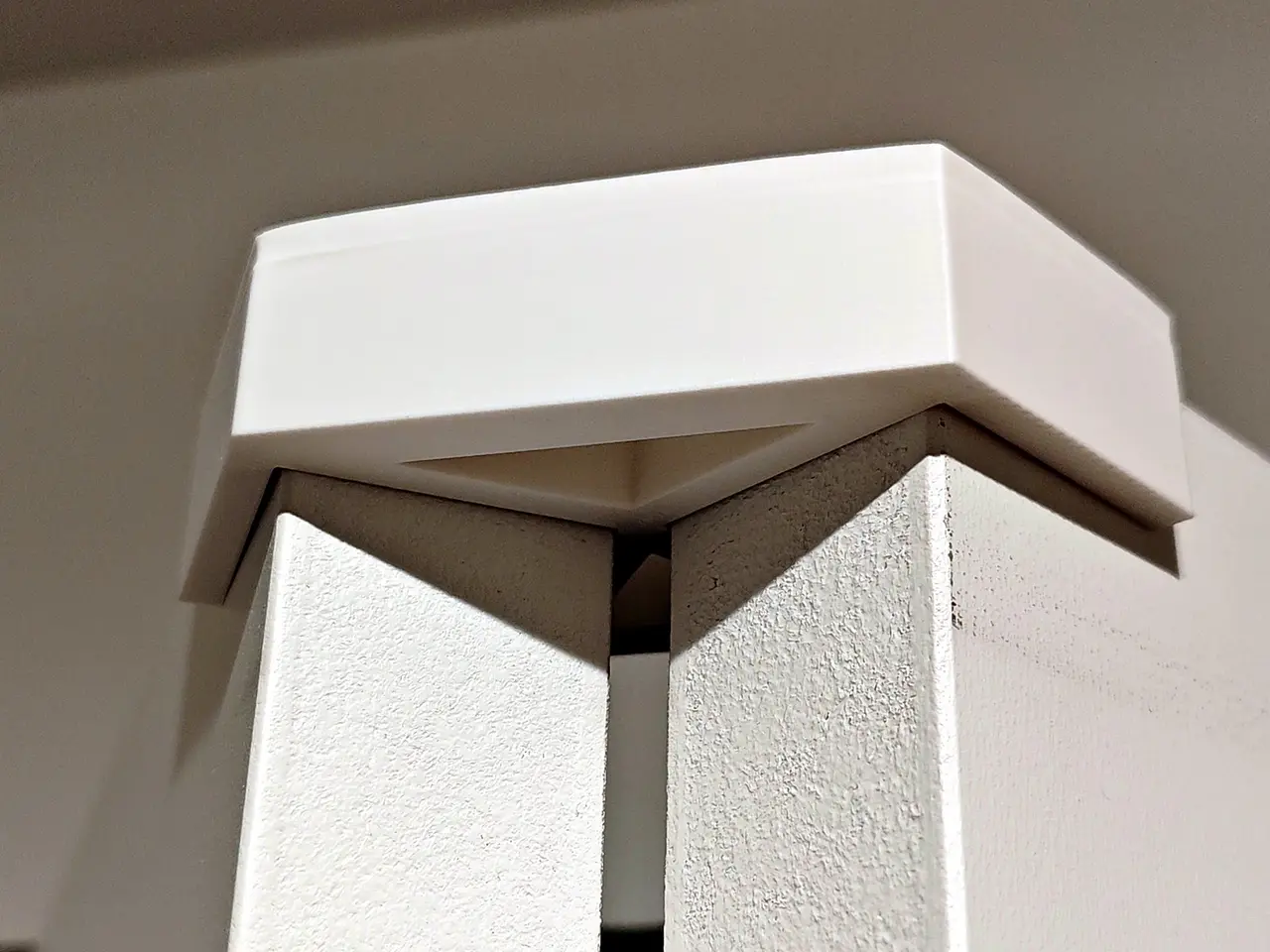

A cap for the top of a bifold door that holds the two panels open at 65°. Fold the door to about 65°, then press the holder down over the top edges at the hinge. Fit - For panels 35 mm thick, hinged with about a 5 mm gap between them
- Slots 35.5 mm wide (0.25 mm clearance each side), 20 mm deep
- 110 × 58 × 24 mm overall

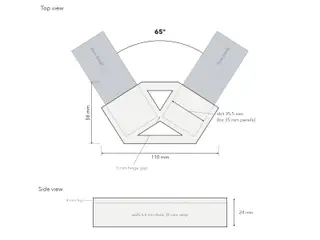

Measure your door's thickness and hinge gap first; the dimension drawing shows every measurement. Printing PLA, 0.2 mm layers, 3 walls, 15% infill, no supports. Prints top down as provided, about 72 minutes and 38 g on a Bambu Lab X2D. Files: the STL, and a Bambu Studio 3MF with these settings.
Descripción original del autor, publicada en Printables.
