Bicycle Wheel Top Crankset Cover Guard 120mm^2 bolt pattern
por tuxbobble en Printables
A cover/guard for my bicycle's Wheel Top crankset that has a 120mm^2 bolt pattern
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a tuxbobble.
Archivos (2)
- Categoría
- Repuestos
- Formatos
- 3MF, F3D
- Descargas
- 1
- Publicado
Sobre este modelo

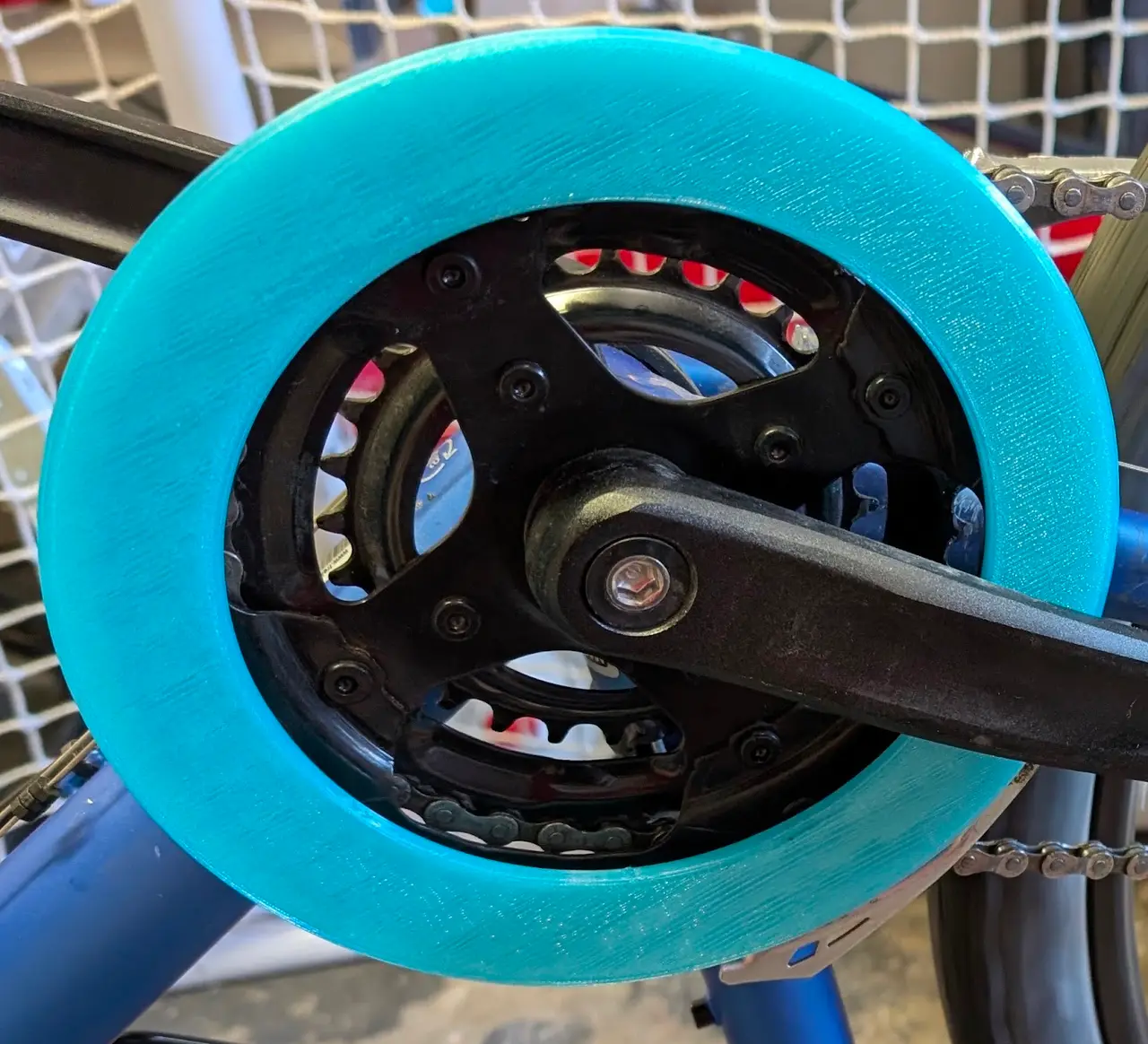

My crankset guard broke recently, so I went searching for a reasonable replacement model. I found https://www.printables.com/make/3670725?comment_id=3670725 which is a great model, but unfortunately wasn't a good match for my crankset. After some investigation I found I had a Wheel Top crankset, with a bolt pattern of 120mm^2. Immediately, I got to modeling. I kept it simple, and made a parametric model so small tweaks could be made for minor adjustments/depths/offsets, etc, but the shape is a relatively simple one. The outer face is a simple flat ring, and the inner face has a bit of a lip to help cover closer to the gears to hopefully protect from gunk a little better. The screws I bought were M4 x 8mm countersunk screws, but the F3D file is provided in case you'd like to use a different type of bolt or screw. I'm not confident in my cycling mechanics so I was a bit conservative for my case--but you may be able to exaggerate more to get better protection.
