Bicycle Tire Lever
por zbieraj en Printables

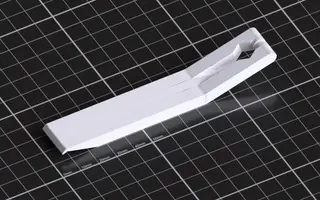

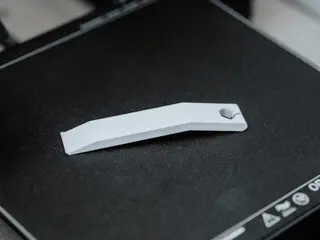

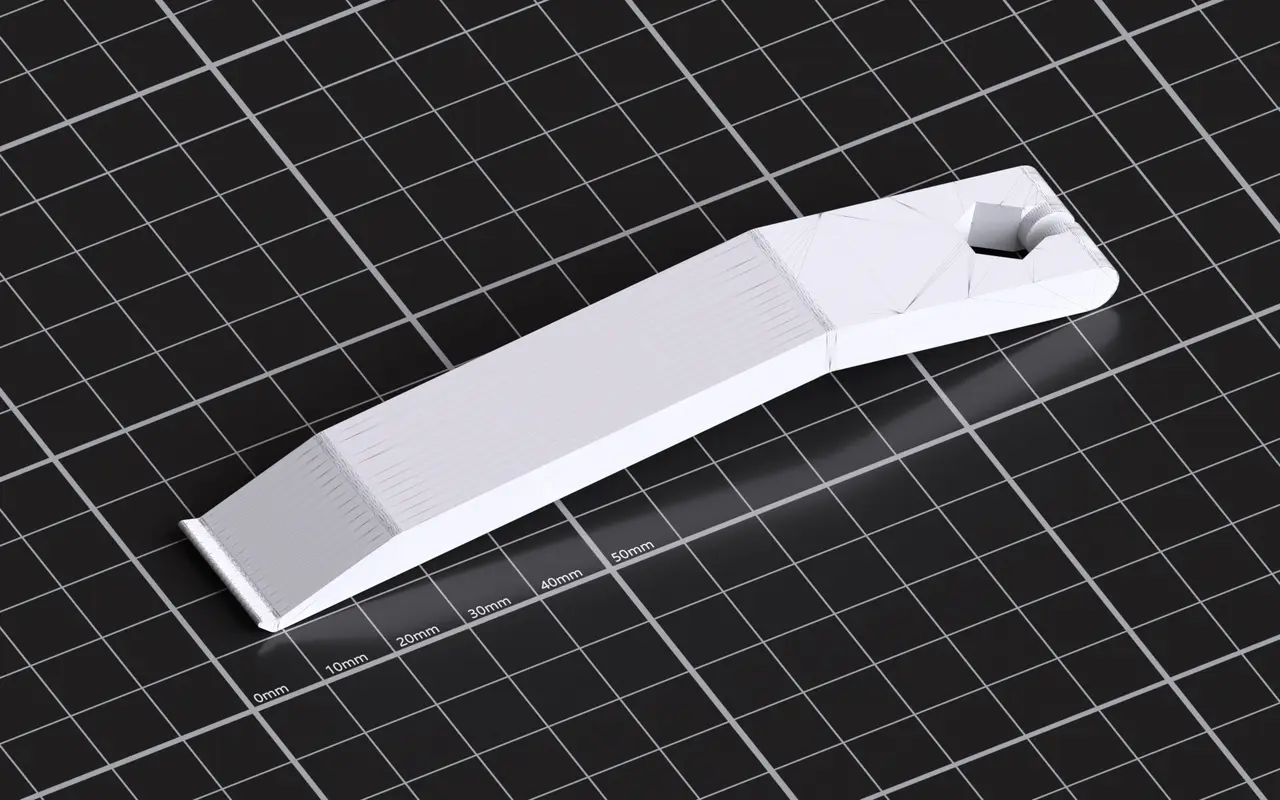

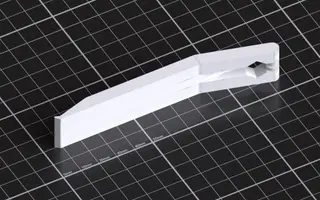

This is a bicycle tire lever created by Piotr Zbierajewski.
Licencia
Solo uso personalCC BY-NC-ND 4.0 — Atribución, no comercial, sin derivadas
Solo para uso personal, sin modificarlo y dando crédito. No se permite vender ni redistribuir cambios.
Al descargar aceptas respetar la licencia y dar crédito a zbieraj.
- Categoría
- Herramientas
- Formatos
- 3MF, GCODE
- Descargas
- 2,199
- Publicado
Sobre este modelo
This is a bicycle tire lever created by Piotr Zbierajewski. Besides being a normal lever it has also 10 mm wrench for those few tensioners which still can be found in the bikes, as well as it has a spoke hook.
It has been created with PETG in mind since it is a much more durable material.

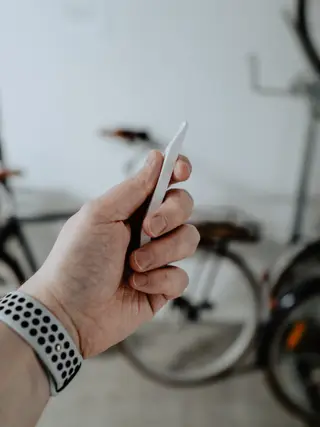

The tool was also created with ergonomics in mind - its profile is very comfortable to hold and to work with when putting on/off the tube or tire.
PLEASE hit that "like" button if you like the model :). And please leave a comment or even share photos of your prints :).
CHANGELOG:
v. 1.0 - Original version.
Print instructions The setup was created for PrusaSlicer 2.3.0 - beta 3.
Key Print Settings
- 0.15mm layer
- Prusa („Made for Prusa Research”) PETG filament setup
- Setup for MK3S
- Fill density 20%
- Ironing is turned on
- Support material is turned on
Sliced Info (for the setup above):
- Used filament: 3.59m
- Estimated printing time (normal/stealth): 1h35min / 1h36min
Descripción original del autor, publicada en Printables.
