Spiral Bevel Gear Set
por gearsandmore en Thingiverse
This gear set was generated with SolidGearsPro at https://solidgearspro.pages.dev If you need different gear types, dimensions, tooth counts, module sizes etc, feel free to generate your own costum gears at SolidGearsPro. Choose between - Spur Gears - Helical Gears - Herringbone Gears - Straight...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a gearsandmore.
Archivos (4)
- STL--SPBG--M2--N13--PA20--C0_25--X0--B0_2--R0_75--W20--CA31_759--HA45--LH--HB30x20--HL16x37_895--KW5x2_3--CB4x10.stl STL · 94,0 MB
- STL--SPBG--M2--N21--PA20--C0_25--X0--B0_2--R0_75--W20--CA58_241--HA45--RH--HB50x20--HL30x31_964--KW8x3_3--CB8x10.stl STL · 125,1 MB
- STEP--SPBG--M2--N13--PA20--C0_25--X0--B0_2--R0_75--W20--CA31_759--HA45--LH--HB30x20--HL16x37_895--KW5x2_3--CB4x10.step STEP · 3,7 MB
- STEP--SPBG--M2--N21--PA20--C0_25--X0--B0_2--R0_75--W20--CA58_241--HA45--RH--HB50x20--HL30x31_964--KW8x3_3--CB8x10.step STEP · 5,4 MB
- Categoría
- Para tu impresora
- Formatos
- STL, STEP
- Descargas (todas las plataformas)
- 309
- Publicado
También en
Sobre este modelo
This gear set was generated with SolidGearsPro at https://solidgearspro.pages.dev If you need different gear types, dimensions, tooth counts, module sizes etc, feel free to generate your own costum gears at SolidGearsPro. Choose between - Spur Gears - Helical Gears - Herringbone Gears - Straight Bevel Gears - Spiral Bevel Gears - Herringbone Bevel Gears
and export them as - STEP export for precise B-Rep geometry - STL export for high resolution mesh

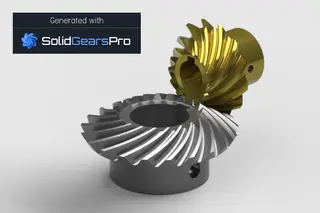

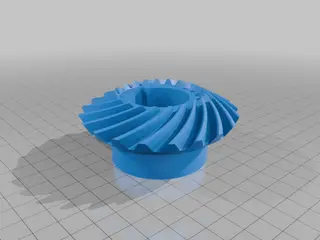

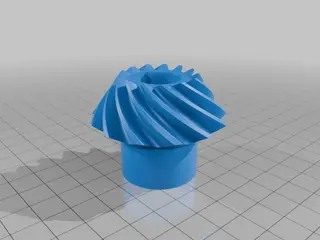

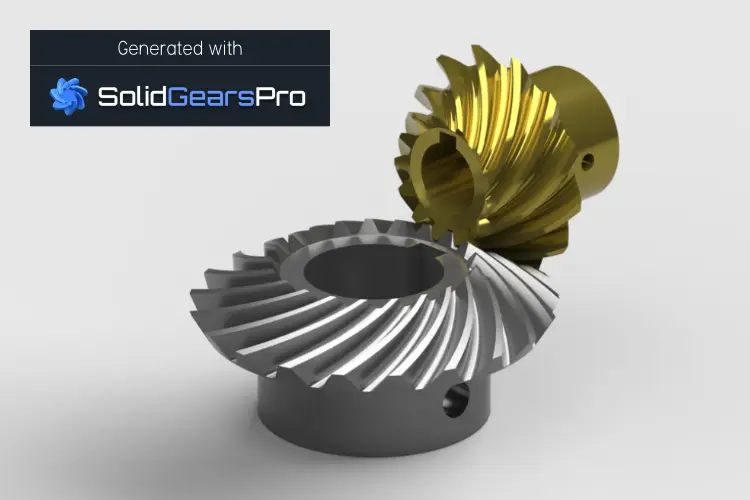

This gear set includes a wheel and a pinion with following parameters: - normal module mn=2mm - normal pressure angle αn=20° - number of teeth zwheel = 21 - number of teeth zpinion = 13 - tip clearance factor cwheel = 0.25 - tip clearance factor cpinion = 0.25 - profile shift factor xwheel = 0 - profile shift factor xpinion = 0 - normal backlash bwheel = 0.2mm - normal backlash bpinion = 0.2mm - tool edge radius rwheel = 0.75mm - tool edge radius rpinion = 0.75mm - helix angle β = 45° - handedness hwheel = right - handedness hpinion = left - pitch angle δwheel = 58.241° - pitch angle δpinion = 31.759° - face width w = 20mm
