BedSide Organizer Standard (Apple/Samsung Watch)
por CherrysCollection en MakerWorld
Standby Mode Version here: Customizable version is available here. Also check out Print-in-Place (with Lamp) version of this is here.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalStandard Digital File License
Licencia estándar de archivos digitales: solo uso personal. No se permite compartir, revender ni subir el archivo a otros sitios, ni vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a CherrysCollection.
Archivos (27)
- Back Wall.stl STL · 2,7 MB
- Ring Holder.stl STL · 3,8 MB
- Tray.stl STL · 794 KB
- Mobile Holder.stl STL · 599 KB
- Base.stl STL · 757 KB
- Back Wall USB-A Apple Watch.stl STL · 2,6 MB
- Back Wall (Pixel Watch Charger Size 29x8).stl STL · 2,7 MB
- Back Wall (Watch Charger Size 29.3 x 6.8).stl STL · 2,7 MB
- Back Wall (Samsung Watch Charger Size 34.5 x 9).stl STL · 2,7 MB
- Back Wall (Huawei Watch Charger Size 37.6 x 10).stl STL · 2,7 MB
- Back Wall (Watch Charger size 38.5x10).stl.stl STL · 2,7 MB
- Back Wall (Xiaomi Watch Charger size 39.5x9.8).stl STL · 2,7 MB
- Back Wall Charger Size 32 x 6 mm.stl STL · 2,7 MB
- Phone Holder 55.5 x 4.6 mm.stl STL · 1,2 MB
- Phone Holder (Charger size 57.7 x 7.9).stl STL · 1,7 MB
- Phone Holder (Charger size 58.2 x 6.7).stl STL · 1,7 MB
- Phone Holder 59.2 x 7.7 mm.stl STL · 1,6 MB
- Phone Holder (Charger size 59.9 x 10.4).stl STL · 1,7 MB
- Phone Holder 59.2 x 10 mm.stl STL · 1,7 MB
- Phone Holder 60 x 8.5 mm.stl STL · 1,6 MB
- Phone Holder (Charger size 60.7 x 6.15).stl STL · 1,7 MB
- Phone Holder (For Thicker Phones 19 mm).stl STL · 600 KB
- Phone Holder (Dual).stl STL · 1,3 MB
- No Logo Phone Holder.stl STL · 104 KB
- Base Standard USB-A.stl STL · 753 KB
- Base Standard (No Pen Slots).stl STL · 697 KB
- Base Wireless (No Pen Slots).stl STL · 801 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 22,597
- Publicado
Sobre este modelo
Standby Mode Version here:
Customizable version is available here.
Also check out Print-in-Place (with Lamp) version of this is here.
Samsung Watch Note: Samsung watch charger comes in different sizes. Look for the correct size under the stls.
Update: As I am getting alot of requests for different watch/phone charger sizes. I am making the required changes and uploading them to the stl section. I do not want to populate this with a lot of profiles. Simply select the profile you want and change the stl that needs to be changed. For example if your wireless phone charger is 58.2 x 6.7 mm wide, you can select the profile (Magsafe Apple Watch) and replace the stl (Phone Holder) with (Phone holder charger size 58.2 x 6.7) which is available in the stl section.
Update: Magsafe versions are now available. If you are going to change from standard version to magsafe version, you only need to replace the base and the phone holder.
There is a small built in support in the phone holder. You can easily remove it by pressing on it. (See gif image)
There are many different combinations that people have requested. Find your required version of bedside organizer under this collection here: https://makerworld.com/en/collections/9156148-ultimate-bedside-organizers
This is standard size BedSide Organizer which takes an apple watch charger. If you wish to print a smaller version on an A1 mini please find it in the link above.

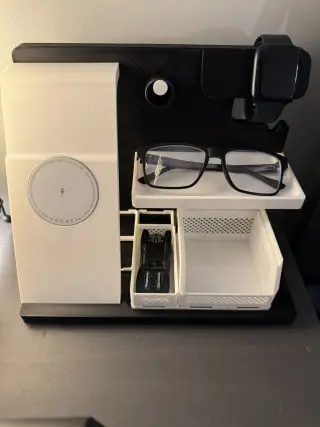

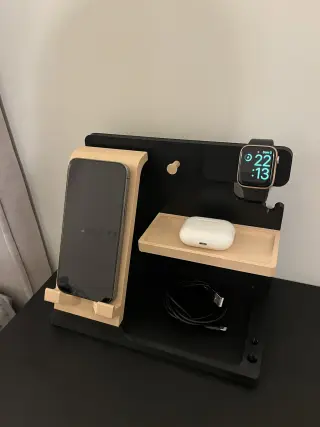

Yes! You can charge airpods and ipads on this too. (See Pictures)
This model requires no supports. Is compact when not assambled. (for portability) Requires no glue or screws (You can glue the parts together if you do not need to disassamble it at a later time.)
Features:
- Cell Phone Holder can be used with almost all phones excluding zfold chunky phones. The cable can be routed from under the base to your charger.
- Ring Holder is a screw on and it took me a while to get the tolarences correct for the screws. Can carry up to 3 rings easily.
- Key Hanger on the right side can be used to hang your keys etc.
- There are two Trays to put miscellaneous stuff on your bedside organizer.
- Apple Watch Charging Dock to hang and charge your apple watch.
- Pen Holders to hold your pens. There are two different sized holes for the pen holders.
No tools required to assemble.
The assembly is straight forward. You can see me assembling in this video.
As always open for feedback and suggestions.
Happy Printing!
