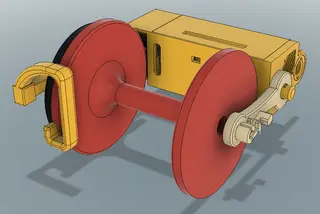

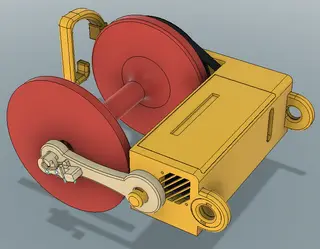

Beaver Winch - Battery Capstan + Drum Winch
This is an open-source, drill battery-powered portable winch designed for quickly pulling rope or taglines in the field. It can be configured as either a capstan or interchangeable drum system, with each drum holding up to 100 m of 6 mm line or 300 m of 3 mm HMPE. Powered by standard drill batteries
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a bob a.
Archivos (24)
- Bot Drum.stl STL · 4,5 MB
- Clamp Base.stl STL · 621 KB
- Clamp Handle.stl STL · 39 KB
- Clamp Pin 1.stl STL · 63 KB
- Clamp Pin 2.stl STL · 63 KB
- Clamp Top.stl STL · 116 KB
- Door.stl STL · 89 KB

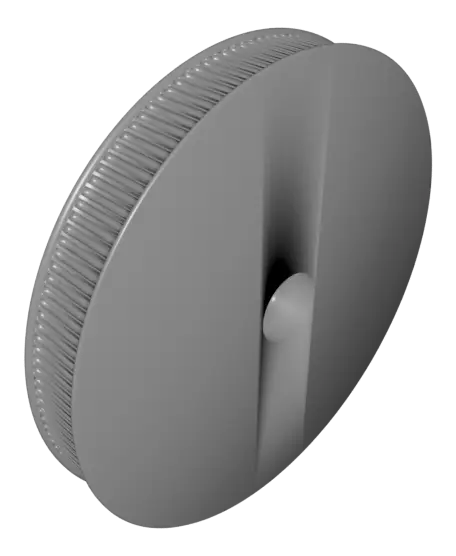

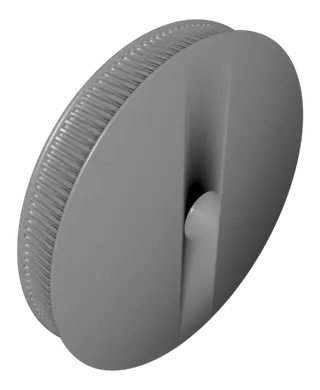

- Knob.stl STL · 789 KB
- Main Body.stl STL · 1,3 MB
- Puck Left.stl STL · 560 KB
- Puck Right.stl STL · 560 KB
- Pulley.stl STL · 9,2 MB
- Seperation.stl STL · 241 KB
- Guide.stl STL · 730 KB
- Stick.stl STL · 12 KB
- Drum Tagline.stl STL · 344 KB
- Clamp Arm.stl STL · 830 KB
- Motor Mount Guide.stl STL · 263 KB
- Rod Clamp v11.stl STL · 548 KB
- Spacer Snap.stl STL · 234 KB
- Drum Capstan.stl STL · 1,0 MB
- Motor Mount 30 aug.stl STL · 299 KB
- Winch.f3d F3D
- Bill of Materials - Beaver Winch.pdf PDF
- Categoría
- Herramientas
- Formatos
- STL, F3D, PDF
- Descargas
- 151
- Publicado
Sobre este modelo

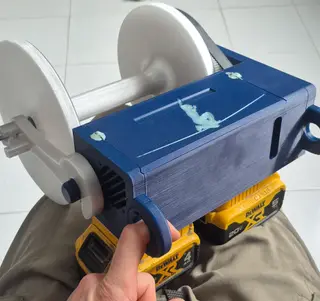

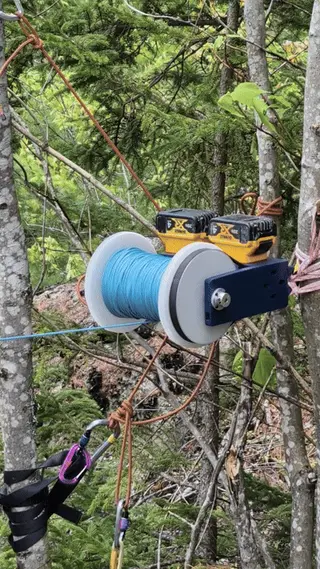

This is an open-source, drill battery-powered portable winch designed for quickly pulling rope or taglines in the field. It can be configured as either a capstan or interchangeable drum system, with each drum holding up to 100 m of 6 mm line or 300 m of 3 mm HMPE. Powered by standard drill batteries (dual 4 Ah in series for 40 V), it delivers up to 250 lb of peak torque and can handle long-distance pulls efficiently.
The build is highly accessible, requiring mostly 3D-printed parts and a single electronics order, making it easy to replicate, modify, and improve within the community. No power tools are needed. Only a soldering iron. Assembly takes around 2hrs.
All individual structural components have been break-tested to over 5 Knt. The total break strength is around 10Knt. A full bill of materials is included in the files, along with the Fusion 360 design file.
Total cost: $270usd
Main Body: 8 walls 25% Rectilinear infill (rotate the infill to go straight on the long way) PLA, PETG
Drum: 10 walls 25% gyroid infill PLA, PETG This needs to be surprisingly strong since force is added on every wrap. After 300m of tight pulling, the drum walls are under tremendous tension.
