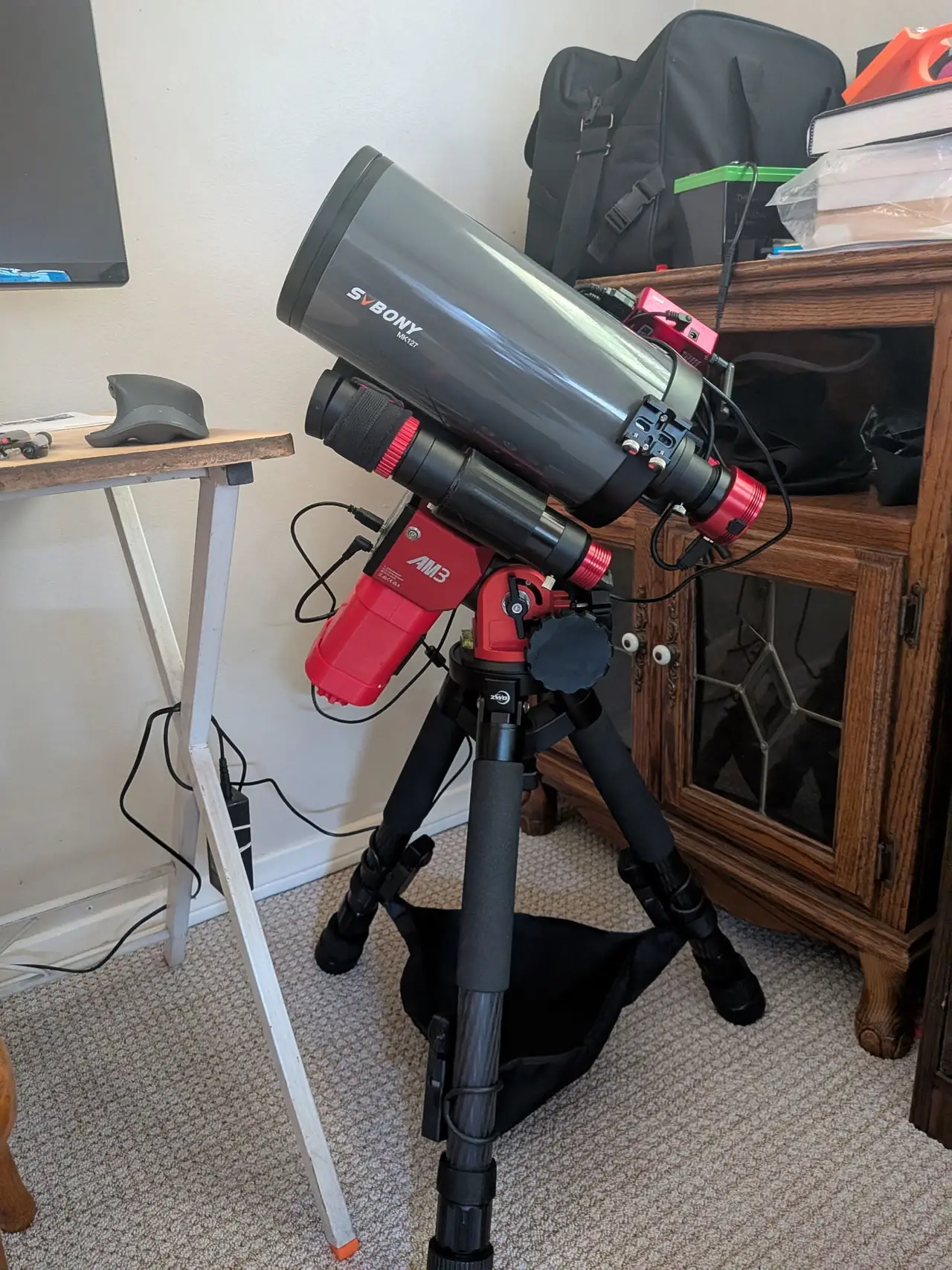

Battery Pack for the ZWO AM3 equatorial mount
por Jerome Womack en Thingiverse
This is a very cool battery pack that also works as a counterbalance. It uses four 33140 cells, that provide 15Ah. This battery pack will also work on the AM5 and AM7. This battery pack uses a 'M12 Hex Cap Bolt, 1.75 Coarse DIN, by 170mm long' to hold it to the ZWO mount.
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Jerome Womack.
Archivos (19)
- Battery.AD_ASM AD_ASM · 450 KB
- 5.5_x_2.1mm_DC_Panel_Mount.AD_PRT AD_PRT · 506 KB
- 33140_Battery_Pack_-_Bottom_Cap.AD_PRT AD_PRT · 705 KB
- 33140_Battery_Pack_-_Cover.AD_PRT AD_PRT · 565 KB
- 33140_Battery_Pack_-_Spacer.AD_PRT AD_PRT · 662 KB
- 33140_Battery_Pack_-_Top_Cap.AD_PRT AD_PRT · 593 KB

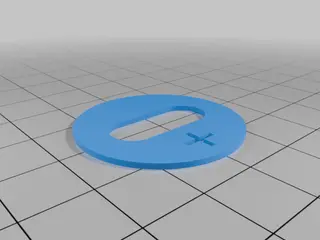

- 33140_LiFePO4_Battery_-_Anode_Cover.AD_PRT AD_PRT · 361 KB

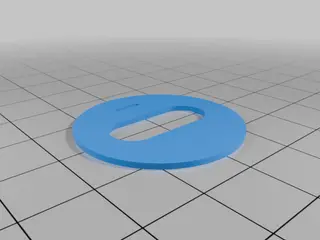

- 33140_LiFePO4_Battery_-_Cathode_Cover.AD_PRT AD_PRT · 533 KB
- 33140_LiFePO4_Battery.AD_PRT AD_PRT · 504 KB
- BMS_Locator.AD_PRT AD_PRT · 466 KB
- Daly_BMS_4S_12V_15A.AD_PRT AD_PRT · 440 KB
- DC_Power_Strip_Spacer.AD_PRT AD_PRT · 602 KB
- DC_Power_Strip.AD_PRT AD_PRT · 677 KB
- Hand_Knob.AD_PRT AD_PRT · 639 KB
- Power_Strip_Locator.AD_PRT AD_PRT · 545 KB
- 33140_LiFePO4_Battery_-_Anode_Cover.stl STL · 754 KB
- 33140_LiFePO4_Battery_-_Cathode_Cover.stl STL · 756 KB
- BMS_Locator.stl STL · 3,9 MB
- DC_Power_Strip_Spacer.stl STL · 777 KB
- Categoría
- Varios
- Formatos
- AD_ASM, AD_PRT, STL
- Descargas
- 0
- Publicado
Sobre este modelo
This is a very cool battery pack that also works as a counterbalance. It uses four 33140 cells, that provide 15Ah. This battery pack will also work on the AM5 and AM7. This battery pack uses a 'M12 Hex Cap Bolt, 1.75 Coarse DIN, by 170mm long' to hold it to the ZWO mount.
Descripción original del autor, publicada en Thingiverse.
