Battery Missle Launcher - AAA and AA - rotatable
por Nils Kal en Printables

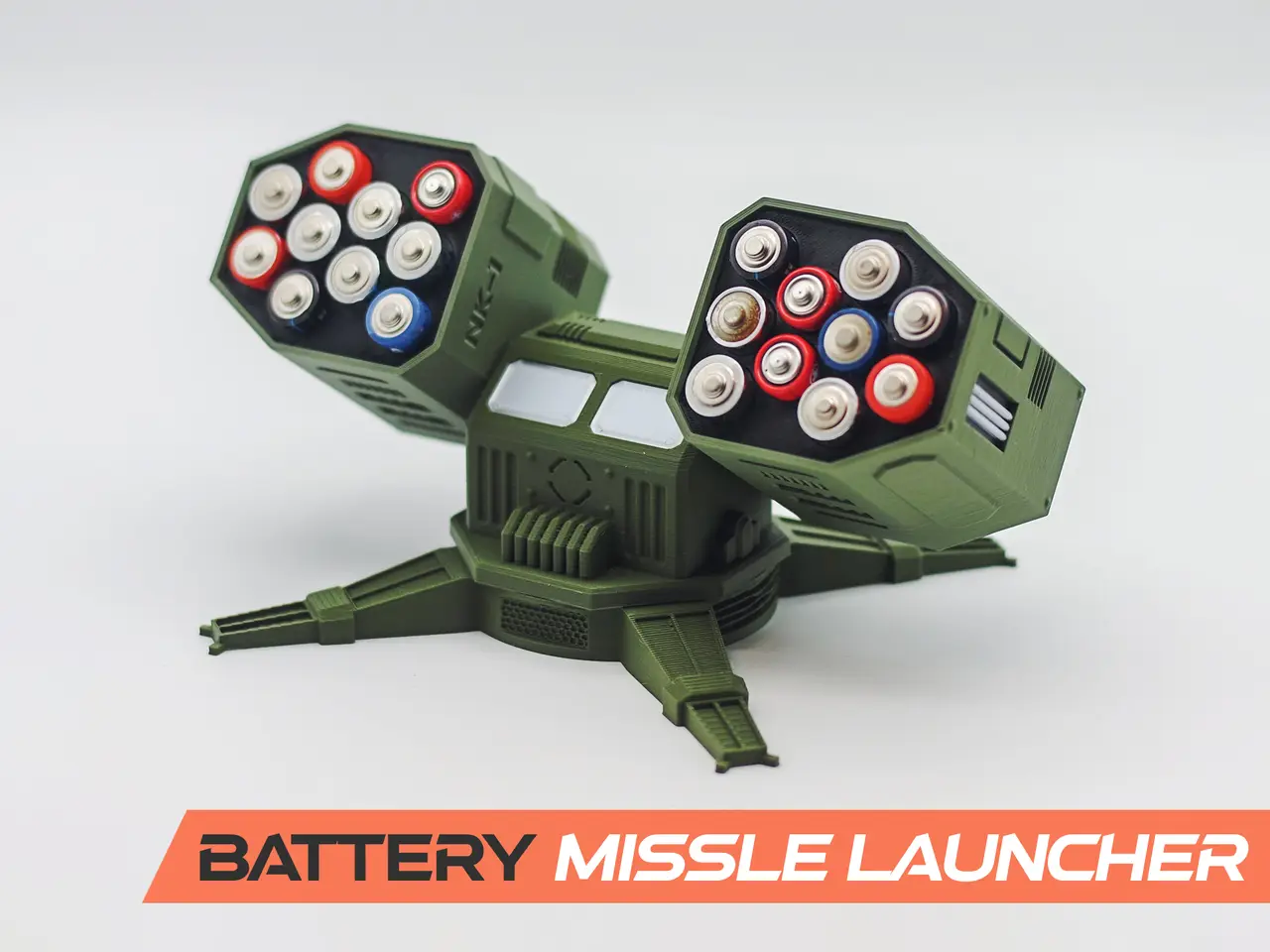

Battery Missle Launcher for AAA and AA batteries
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Nils Kal.
Archivos (29)
- base and pilot chamber.3mf 3MF · 269 KB
- AA_left and right launcher.3mf 3MF · 657 KB
- connectors.3mf 3MF · 29 KB
- details silver.3mf 3MF · 214 KB
- AA_details black.3mf 3MF · 189 KB
- AAA_details black.3mf 3MF · 247 KB
- AAA_left and right launcher.3mf 3MF · 898 KB
- pilot chamber.stl STL · 778 KB
- base.stl STL · 440 KB
- AA_right launcher.stl STL · 1,9 MB
- AA_left launcher.stl STL · 1,9 MB
- connector left.stl STL · 1 KB
- connector right.stl STL · 1 KB
- AA_detail front left launcher.stl STL · 414 KB
- AA_detail front right launcher.stl STL · 414 KB
- detail launcher left.stl STL · 508 KB
- detail launcher right.stl STL · 508 KB
- detail mirror 1.stl STL · 1 KB
- detail mirror 2.stl STL · 1 KB
- AAA_right launcher.stl STL · 2,6 MB
- AAA_left launcher.stl STL · 2,6 MB
- AAA_detail_front left launcher.stl STL · 602 KB
- AAA_detail_front right launcher.stl STL · 602 KB
- AAA_height fix_shim.stl STL · 159 KB
- base and pilot chamber_0.2mm_PLA_MK3S_8h51m.gcode GCODE · 22,0 MB
- AA_left and right launcher_0.25mm_PLA_MK3S_11h38m.gcode GCODE · 25,1 MB
- AA_details black_0.2mm_PLA_MK3S_21m.gcode GCODE · 647 KB
- details silver_0.2mm_PLA_MK3S_7m.gcode GCODE · 99 KB
- connectors_0.2mm_PLA_MK3S_28m.gcode GCODE · 285 KB
- Categoría
- Hogar
- Formatos
- 3MF, STL, GCODE
- Descargas
- 7,306
- Publicado
Sobre este modelo
Battery Missle Launcher for AAA and AA batteries This print is split into multiple parts so there are a few details you can print in a different color if you like. The .3mf's are already labeled in my suggested colors, I am looking forward too see your color scheme! - AA variant holds up to 20 batteries (10 per side) - AAA variant holds up to 34 batteries (17 per side) - The missle launcher can rotate 360°

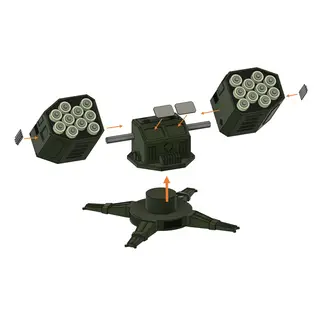

Assembly is pretty straight forward, just put all parts together like in the picture, may use a bit of glue. Dont use glue between the base and the pilot chamber so it can move freely. You will find the files for the AAA variant in the AAA folder. Changelog: - 08/01: Improved the tolerances and fixed the height of the AAA batteries (for anyone who already printed the old AAA version can use the ‘AAA_height fix_shim.stl’ and print it for each battery hole)
Happy printing! NK
This work is licensed under the 'Creative Commons NonCommercial' license. Please do not sell any physical or digital copies of it.
