Battery Dispenser- AAA - AA - 9V
por Giessen en Thingiverse
All credits to Bradk3 for the idea. Battery Dispenser for AAA, AA and 9V batteries, 152,5x127x58mm I did not like the screw-holes on the side of the original Battery holder, so I decided to redesign the battery holder. The screw-holes are now hidden on the inside. I had to print the dispencer...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Giessen.
Archivos (14)
- Battery_Holder_R5.stl STL · 19,6 MB
- Battery_Holder_R5.sldprt SLDPRT · 967 KB
- Battery_Holder_R5.x_t X_T · 1,7 MB
- Battery-Holder-Ikea-Skadis.stl STL · 20,9 MB
- Battery-Holder-Ikea-Skadis.sldprt SLDPRT · 947 KB
- Battery_Holder_AAAAA.stl STL · 14,2 MB
- Battery_Holder_AAAAA.sldprt SLDPRT · 702 KB
- Battery-holder-small_1-AAA_2-AA_1-9V.sldprt SLDPRT · 743 KB
- Battery-holder-small_1-AAA_2-AA_1-9V.iges IGES · 5,1 MB
- Battery-holder-small_1-AAA_2-AA_1-9V.stl STL · 12,9 MB
- Battery_holder_2xAAA_3xAA_small.sldprt SLDPRT · 665 KB
- Battery_holder_2xAAA_3xAA_small_skadis.sldprt SLDPRT · 664 KB
- Battery_holder_2xAAA_3xAA_small.stl STL · 76,8 MB
- Battery_holder_2xAAA_3xAA_small_Skadis.stl STL · 120,4 MB
- Categoría
- Organización
- Formatos
- STL, SLDPRT, X_T, IGES
- Descargas
- 24,200
- Publicado
Sobre este modelo

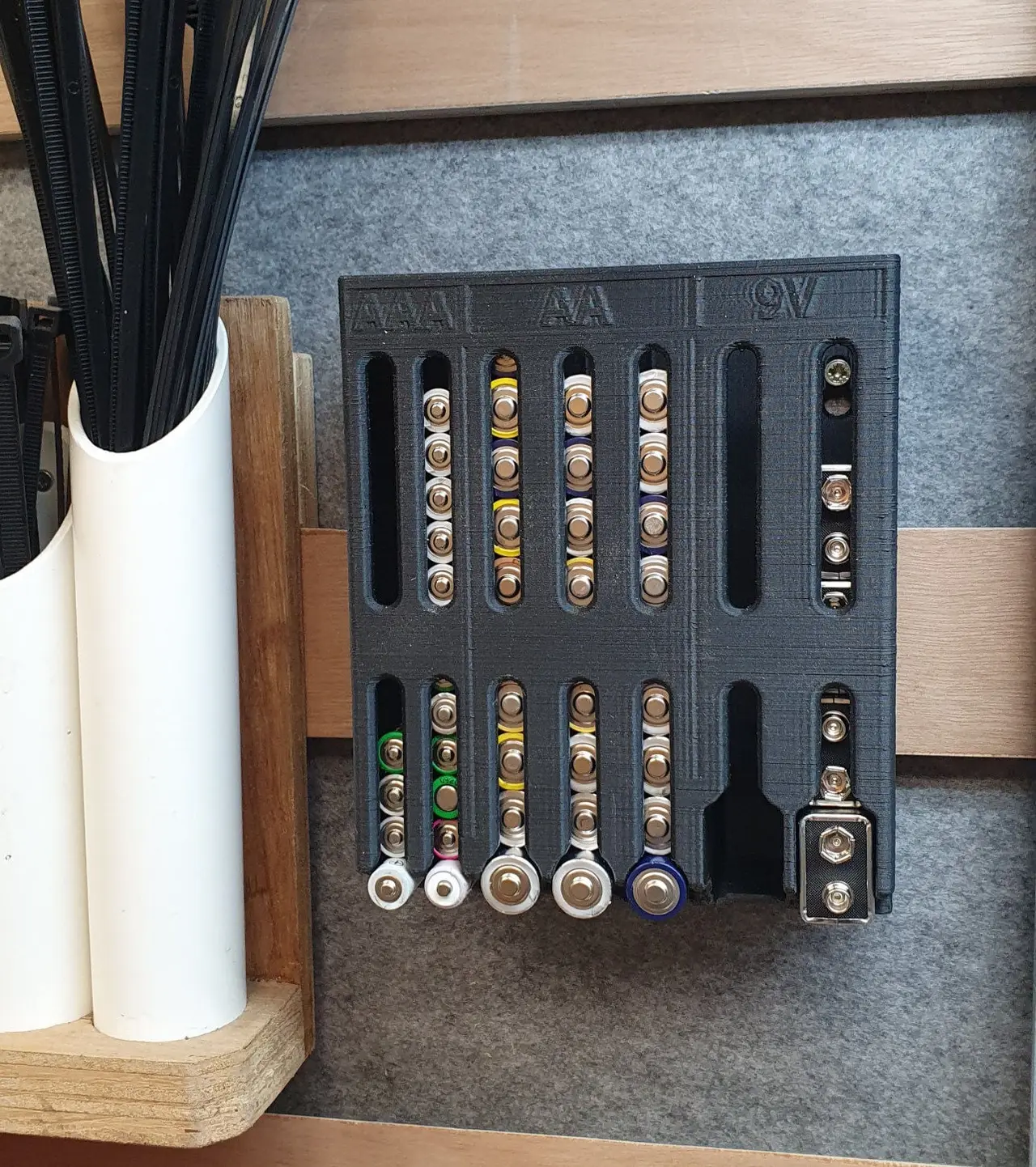

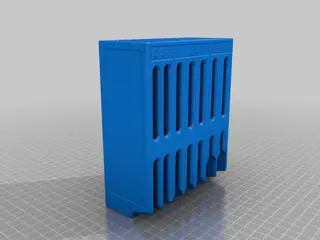

All credits to Bradk3 for the idea. Battery Dispenser for AAA, AA and 9V batteries, 152,5x127x58mm I did not like the screw-holes on the side of the original Battery holder, so I decided to redesign the battery holder. The screw-holes are now hidden on the inside. I had to print the dispencer twice: - In the first design, my finger could not grip the battery to shove it out. - I have enlarged the space in the bottom and in the front. The opening is now 1/2 of the length of the battery -4mm for stability. Now it works just fine.

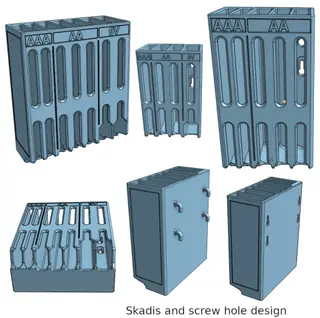

I have added radii to improve stiffness, strength and printability. It can be printed without support except for the Skadis design. Print it straight up, the bottom touching the printbed. - Update 6-01-2023 Upon request: Added a design for the Ikea Skadis board. John, thanks for testing!

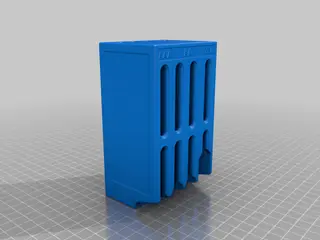

- Update 13-01-2023 Upon request: Added a design with AA an AAA alone. (9V removed) TaLun, thanks for testing and the nice pictures!
- Update 20-01-2023 Upon request: Added a small design. 1xAAA, 2xAA and 1x9V. Heigth reduced to 123mm.
- Update 27-01-2023 Upon request: Added a smaller design without 9V: 2xAAA 3xAA with screw holes and Ikea Skadis hooks.
Descripción original del autor, publicada en Thingiverse.
