Battery dispenser AA & AAA
por Lar Nil en Thingiverse
Designed for very easy printing. AA & AAA version for gridfinity too. These 2 dispensers each hold 18 batteries. Gridfinity versions holds 20/19 for AA/AAA. The AAA dispenser can be added on top of the AA dispenser. (from version 3 AA adds on top of an AA dispenser and AAA on top of an AAA too)...
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Lar Nil.
Archivos (8)
- Batt_disp_AA_gridfinity.stl STL · 183 KB
- Batt_disp_AAA_gridfinity.stl STL · 139 KB
- Batt_disp_AA_v5_Standalone.stl STL · 27 KB
- Batt_disp_AAA_v5_standalone.stl STL · 30 KB
- Batt_disp_AA_v5_extention.stl STL · 23 KB
- Batt_disp_AAA_v5_extention.stl STL · 23 KB
- Batt_disp_AAA_v5.stl STL · 37 KB
- Batt_disp_AA_v5.stl STL · 32 KB
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 58,192
- Publicado
Sobre este modelo

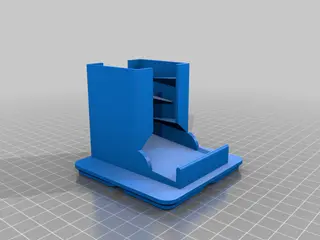

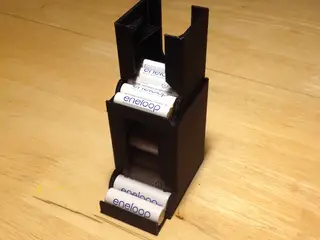

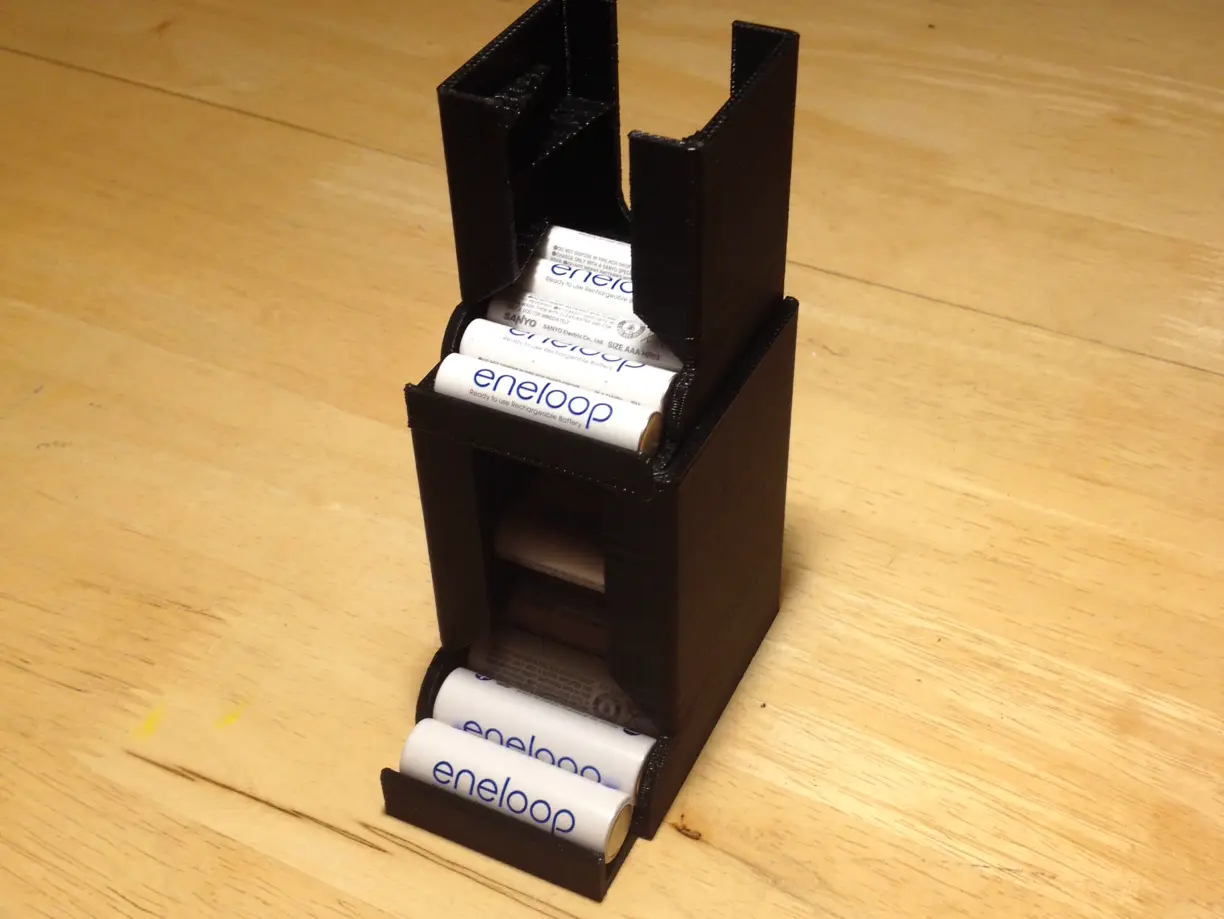

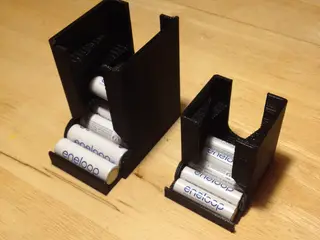

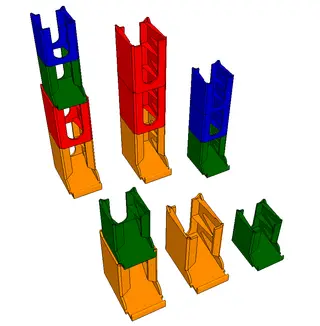

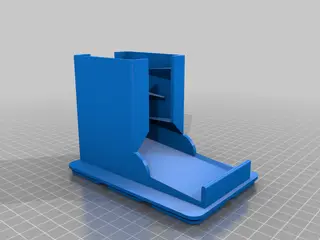

Designed for very easy printing. AA & AAA version for gridfinity too. These 2 dispensers each hold 18 batteries. Gridfinity versions holds 20/19 for AA/AAA. The AAA dispenser can be added on top of the AA dispenser. (from version 3 AA adds on top of an AA dispenser and AAA on top of an AAA too). Dedicated standalone models and gridfinity version available. The batteries can slide out from the side, be gripped from the side or directly from front (version 4). Stacked, standalone or gridfinity, you decide! Version 2: Version 2 is extendable and can still be stacked. The extension holds 16 batteries. Version 3: Added possibility to stack AA on top of AA and AAA on top of AAA. Reduced the need to tap the batteries (sometimes) for them to roll down. Version 4: Added dedicated standalone models. Improved grip when stacking AAA on-top of AA. Added small ramp on the side to prevent batteries to accidentally slide out. Added slot for gripping batteries directly from front. Version 5: Improved ramp. Gridfinity (v6 of sorts) Added gridfinity version for AA & AAA. Not stackable.
Descripción original del autor, publicada en Thingiverse.
