Battery cover for Genie ACSGT Type 2 — modelo 3D

Battery cover for Genie ACSGT Type 2

por korgi-p en Printables

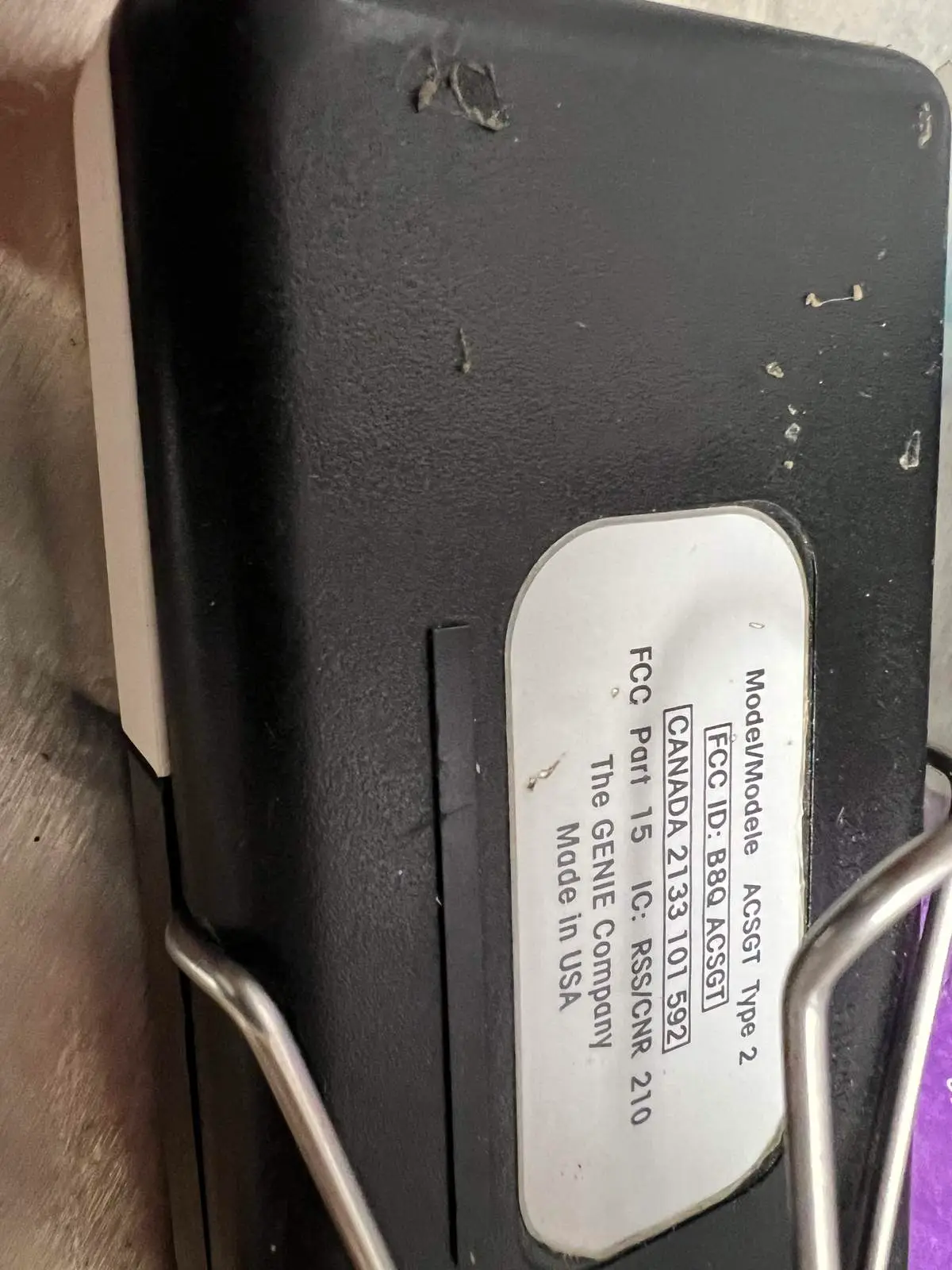

Replacement battery cover for the Genie ACSGT Type 2 garage door opener

Descargar gratis Ver en Printables

Todos los archivos (1) en un ZIP

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a korgi-p.

Archivos (1)
Categoría
Hogar
Formatos
STP
Descargas
0
Publicado

Sobre este modelo

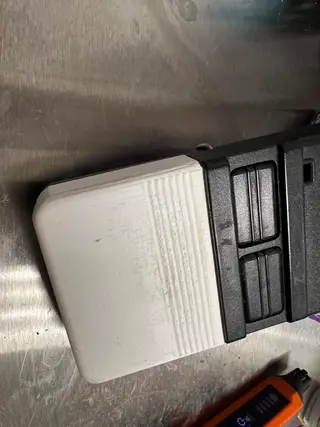

Replacement battery door cover for an older Genie ACSGT Type 2. Not the exact same design as the original in terms of the thumb grip. Fits pretty well on mine though it can be slightly fiddly. If the other part of the cover had a clip break off on yours (like on mine), don't bother making a new clip; just hot glue it (in my opinion). Not epoxy because hot glue can be removed later if need be. I printed mine on one of the sides to give the clip maximum strength. The model itself will load on its back. It was something like 8 or 9 grams of filament plus 3 or 4 of support to print on the side. Use Arachne wall generator, but don't be like me and change the minimum feature size to be really small. My previous test prints had pretty nice quality. I tried lowering that setting (to something like 0.25mm) and it made the surface finish kind of bad as shown in the photo. I don't intend to reprint mine because I don't like to waste plastic but just know that you can get a better quality result if you don't mess up your settings. I do recommend lowering minimum wall size from the default 80%/85% down to 60-70%, however.

Descripción original del autor, publicada en Printables.
