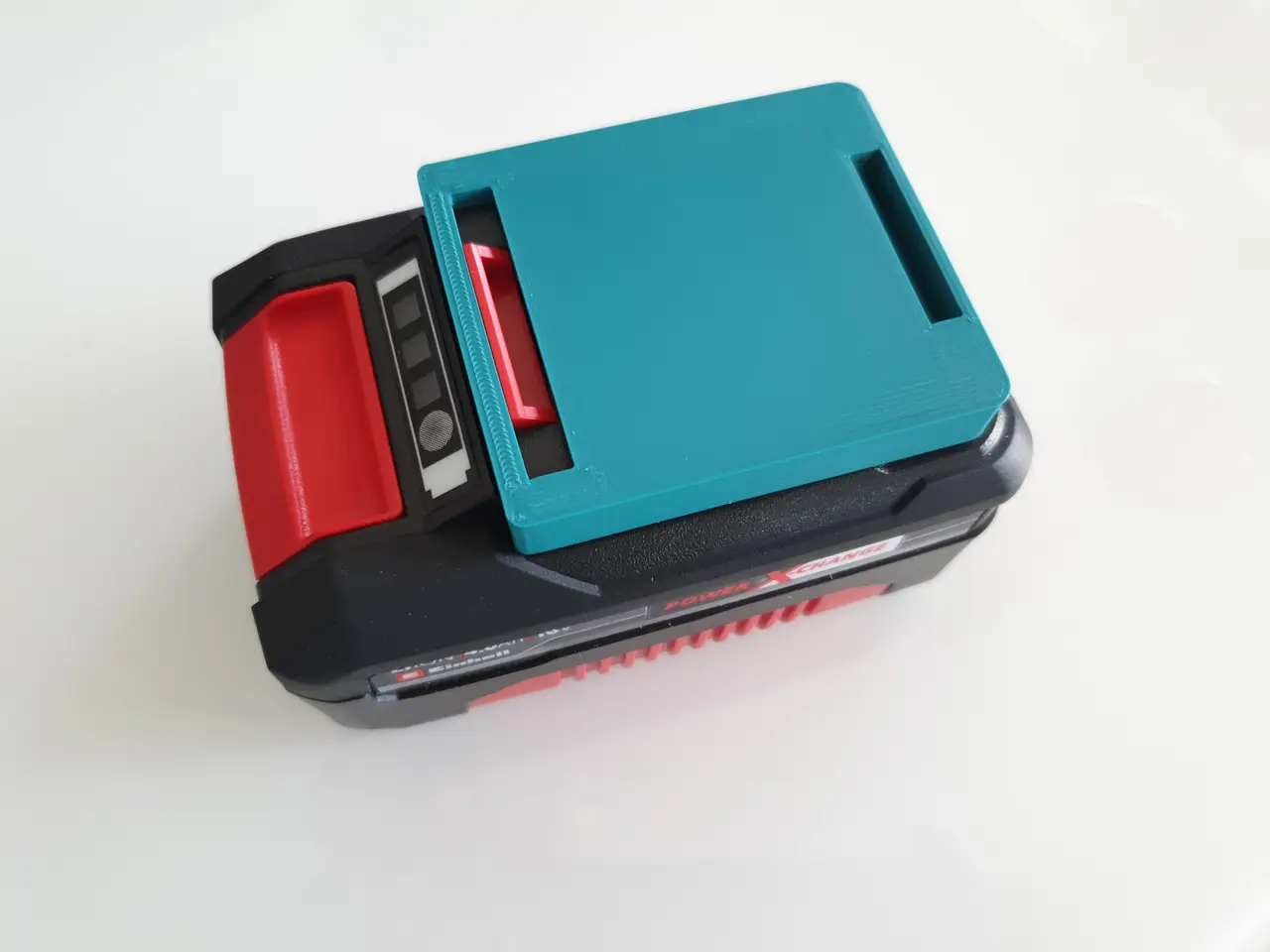

Battery Adapter Einhell Power X-Change General Purpose V2

I've remodeled the adapter from scratch because my old adapter (https://www.printables.com/model/98138-battery-adapter-einhell-power-x-change-general-pur), that was based on another design, has some issues. You will also need: - 2 crimp spade connectors (e.g. https://www.aliexpress.com/item/100pcs-50pairs-6-3mm-16-14AWG-Female-Male-Electrical-Wiring-Connector-Insulated-Crimp-Terminal-Spade-Blue/32846771914.html )

- hot glue

- appropriate crimping tool

- wire

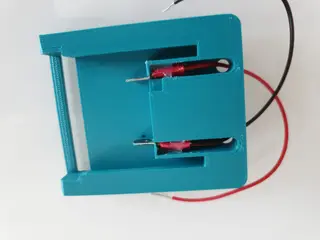

One photo (it's from an early iteration) shows how to put the spade connectors in place. Improvements over the old version: - easier to print in both orientations

- way better fit, the old one was too tight in my opinion

- the cables of both poles aren't strictly separated anymore and there is more room to be more flexible with cable management. Maybe even a small buck converter fits there

- indicator for plus and minus

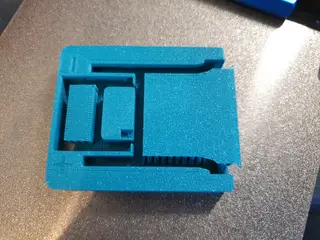

Support recommend if printed as uploaded. The last photo shows how i printed it with support. I've used 4 mm yx separation from object. If rotated by 180° no support is needed. Cad files are attached. Feel free to remix.
