Bambu X-1 Glass Top Riser ONE Piece remix

Let there be LIGHT!!

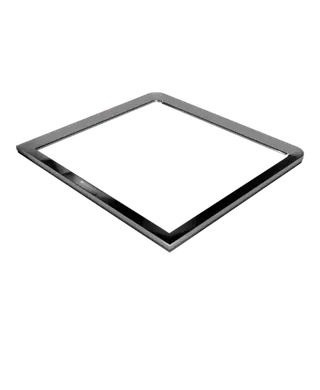

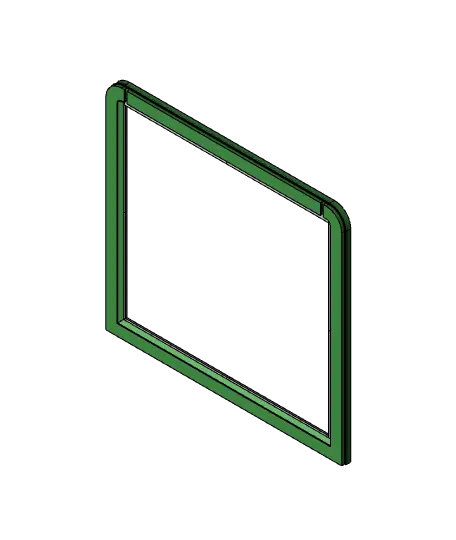

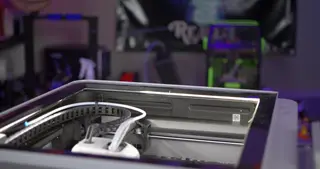

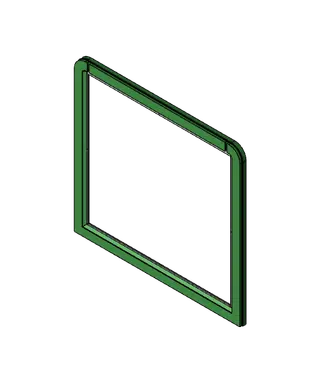

The inside of the Bambu X-1 is best described as "A Cave". The stock LED lightbar just does not put enough light into the printer's chamber. This add-on is 3D Printable riser for the glass top that allows installation of an LED light strip. With a good light strip you can finally SEE YOUR PRINTS!

This is a remix of a multi-piece design with some geometry repairs. It is a LARGE print that will require a big printer. Measures 387mm x 356mm, ensure your build volume can fit it! I used the Elegoo Neptune 3 Max

Remixed from this design: https://www.printables.com/model/365027-bambulab-top-glass-riser-4-cob-led-remix-with-led-

Parts Needed (Affiliate Links): - 1x - LED Light Strip: https://amzn.to/3JzJx2K - 1x - 24v PSU: https://amzn.to/3JzxOAU - Elegoo Neptune 3 Max: https://tinyurl.com/Neptune3Max - Polymaker Filament: https://tinyurl.com/Polymakerr

---------------------------------------------------------------

Files Included: - One Piece LED Riser - STEP File - One Piece LED Riser - Left Wire Exit - One Piece LED Riser - Right Wire Exit - One Piece LED Riser - Both Exits - 4x TPU Gaskets

---------------------------------------------------------------

Recommended Print Settings: - 3 Perimeters - 10% Infill - No Supports Required - PETG or higher temp material recommended. Chamber temps can get over 50C and may be too high for PLA. - TPU recommended for "gasket" prints to seal the glass to the print. Softer the better.
