Baja Bug Style 1/10 M-Chassis RWD RC Car (RS04R Chassis)

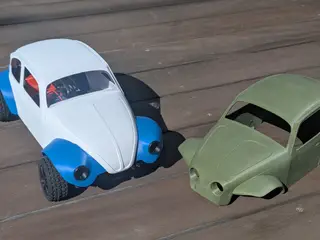

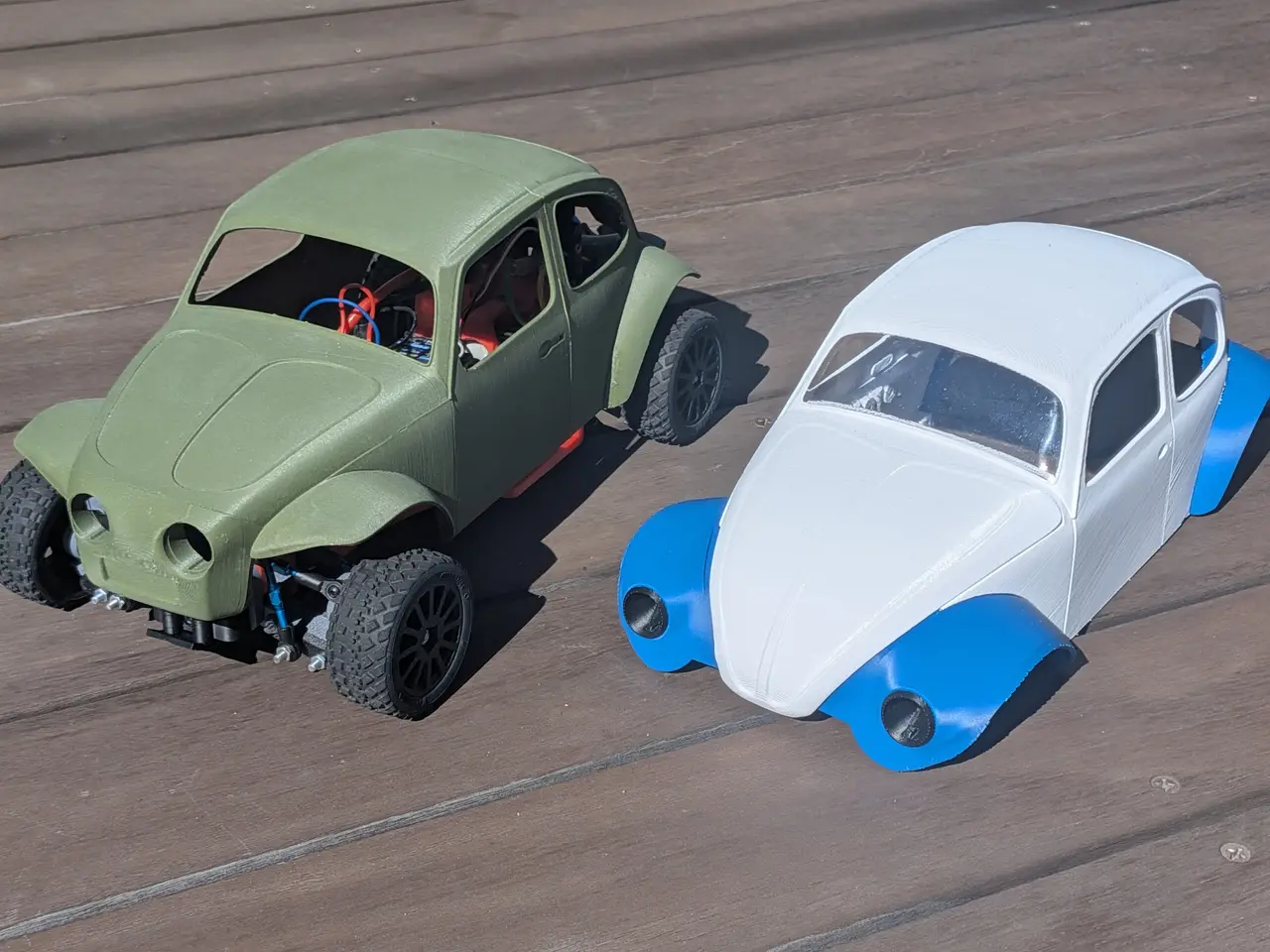

🏎️ Overview A fully 3D-printable 1/10 scale M-chassis RWD RC car featuring an iconic Baja Bug body style. Built on the custom-engineered RS04R chassis (225mm wheelbase), this model combines aggressive off-road aesthetics with modular, hobby-grade engineering. It features a clever modular body system: using a shared central body tub, you can easily swap the front nose and fenders to switch between a race-inspired Wide Body Type and a classic off-road Bugeye Type! ⚠️ IMPORTANT NOTICE Please download and read RS04R_MANUAL.pdf and BOM.pdf first! They contains step-by-step assembly instructions with 3D CAD illustrations, as well as the detailed parts list. 🛠️ Key Features - Modular Body Conversion (2 Styles in 1):- Wide Body Type: Aggressive, widened stance for modern desert/rally vibes. - Bugeye Type: Classic vintage Baja Bug look with exposed headlights. - Both styles share the same main body shell—simply swap the front nose and fenders to transform your ride!

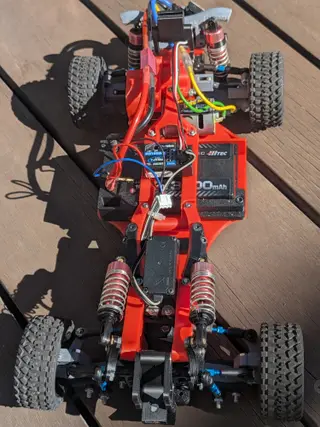

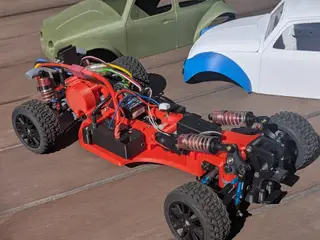

- M-Chassis Compatibility: Standard 225mm wheelbase (Medium M-chassis size). - Modular RS04R Chassis: Highly serviceable front and rear modules with double-wishbone suspension and front rocker arms. - Standard RC Electronics Friendly: Compatible with 380-size motors, low-profile servos, standard ESC, receiver, and standard battery packs. - Detailed Documentation: Complete step-by-step visual assembly manual and comprehensive BOM included.

📐 Specifications - Scale: 1/10 M-Chassis class - Wheelbase: 225mm (M-Chassis Medium) - Drive: Rear-Wheel Drive (RWD) with differential gear - Body Styles: Convertible between Wide Body and Bugeye via swappable front nose and fenders - Motor: 380 Size Motor - Damper: - Front: ~62mm (e.g. Tamiya C.V.A. Mini / Low Friction Damper) - Rear: ~55mm (e.g. Tamiya C.V.A. Short)

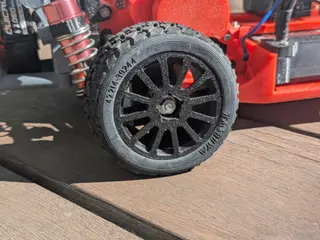

- Tire / Wheel Size: M-chassis 60D Rally Block Tires (Outer: 60–80mm, Inner: 43mm) - Servo: Low-profile standard servo recommended

🔩 Required Hardware & Electronics (Summary) Detailed part counts and lengths are listed in the attached BOM.pdf. - Bearings: - 520 (2x5x2.5mm) x24 - 730 (3x7x3mm) x4 - 1280 (8x12x3.5mm) x10

- Screws & Nuts: Metric JIS screws (M2, M2.6, M3 socket head cap & countersunk screws, M2/M3 lock nuts) - Shafts & Pipes: 2mm steel/SUS304 shafts, 3mm pipe - Electronics: 380 motor, ESC, receiver, low-profile servo, 2S LiPo / battery pack - Linkage: Turnbuckles and 4–5mm ball ends/rod ends

🖨️ Recommended Print Settings - Filament Recommendations:- Chassis, Arms & Brackets: PETG, ABS, or ABS-GF / PLA+ (tough filaments recommended for outdoor running) - Body Panels: PLA, PETG, or ABS - Gears: PETG, ABS, Nylon (PA), or POM for smooth meshing and wear resistance

- Infill: 30% - 80% (Gyroid or Grid recommended for chassis parts) - Supports: Minimal / needed only on specific overhangs (refer to part orientations)

📖 Assembly & Support - Step-by-step assembly manual with pictures is provided in RS04R_MANUAL.pdf. - If you have any questions, feedback, or need build assistance, feel free to contact me via X (Twitter): @gm2bv.

🎨 License & Credit This model and the manual are licensed under CC BY-NC-SA 4.0 (Attribution-NonCommercial-ShareAlike). - You are free to share, remix, and modify this project for non-commercial purposes. - Please attribute original design to gm2bv. - Designed by : gm2bv - Contact & Feedback (X/Twitter) : @gm2bv- If you build this, please tag or mention me on X! I'd love to see your builds!
