Avatar 6" gated exhaust port — modelo 3D

Avatar 6" gated exhaust port

por Neil Ramsay en Printables

Ventilation exhaust with a 6 inch port attachment.

Descargar gratis Ver en Printables

Todos los archivos (2) en un ZIP

Licencia

Solo uso personal

CC BY-NC 4.0 — Atribución, no comercial

Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.

Al descargar aceptas respetar la licencia y dar crédito a Neil Ramsay.

Archivos (2)
Categoría
Repuestos
Formatos
STL
Descargas
0
Publicado

Sobre este modelo

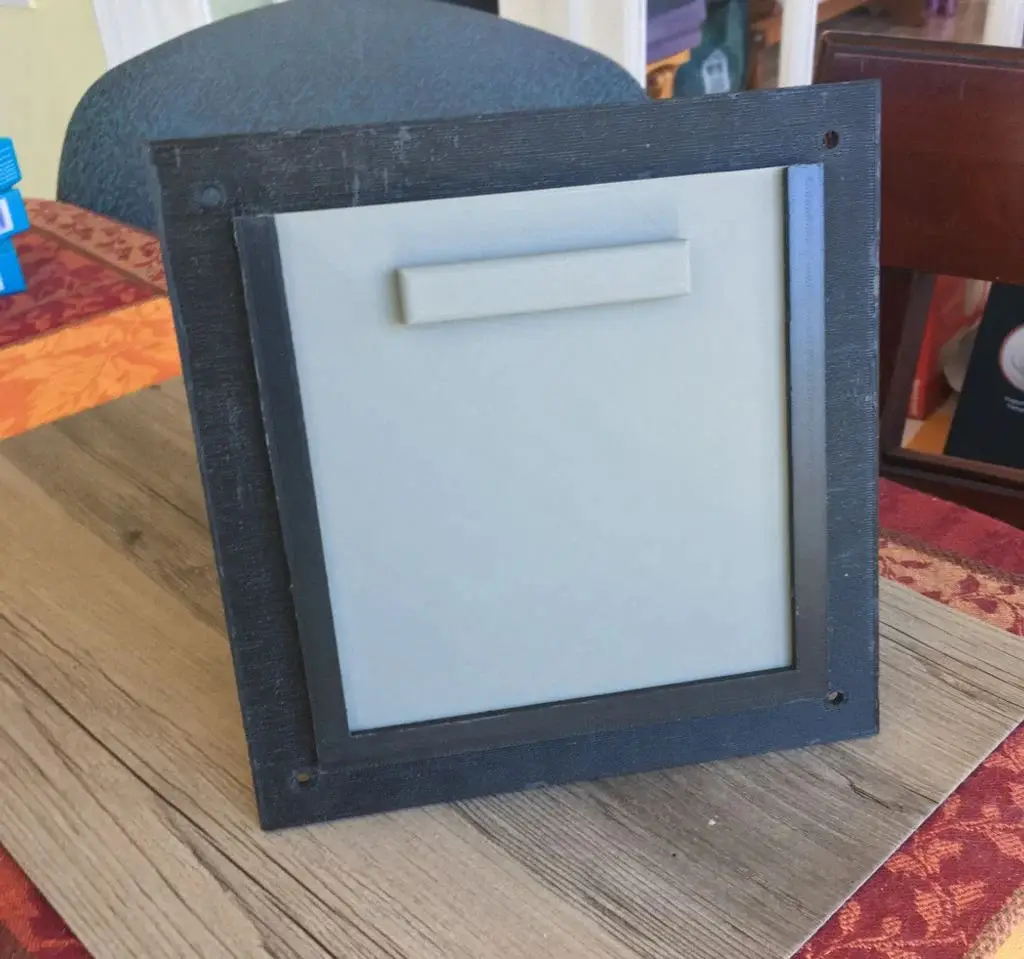

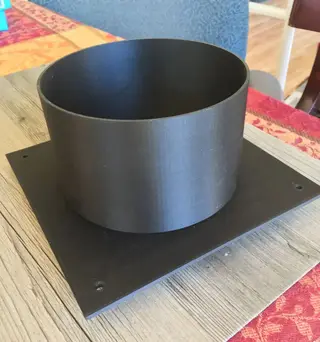

I needed a small 6" exhaust port for a 6" inline duct fan to vent laser fumes out of the house. As I didn't want to just hang it out an open window, I decided I'd drill a 6" hole in the back door of the shop, and vent it that way. This has 4 #10 machine bolt holes to attach it to a wall/door/piece of wood/whatever. It has a 6" coupling to attach a 6" duct/dust hose to, and a blast gate to close things off so you can keep out critters/bugs when not in use. It's not a proper blast gate in that it doesn't extend to another 6" coupling... it just vents out. But it worked for my needs.

Descripción original del autor, publicada en Printables.
