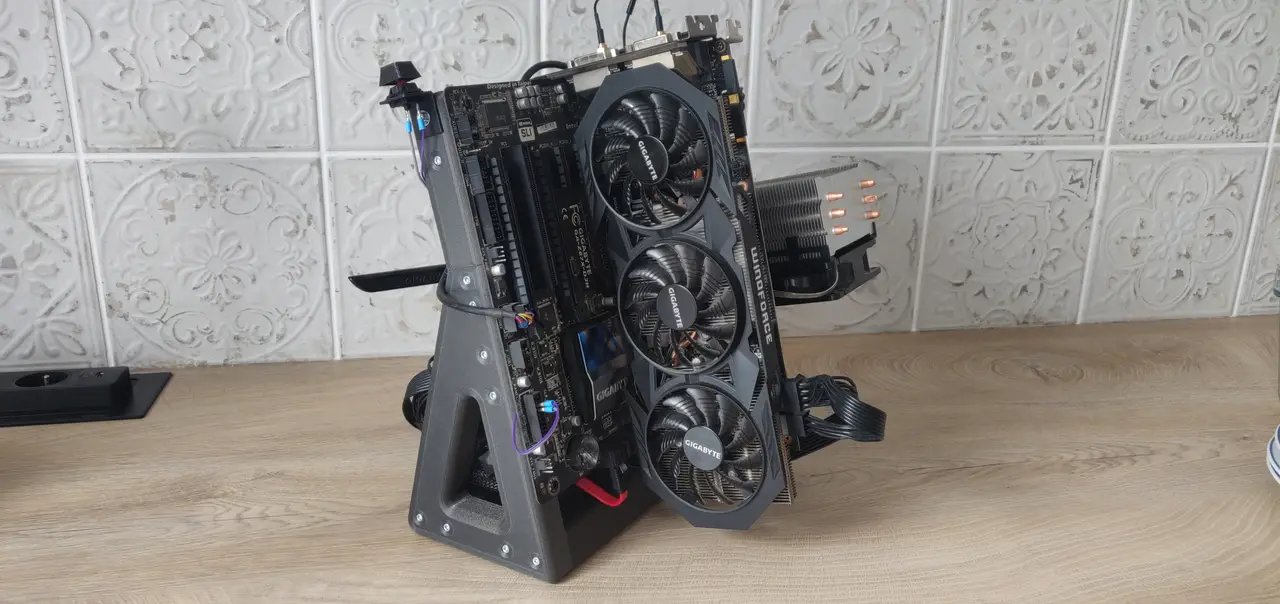

ATX Open PC Frame
por Heblyz en Printables
I needed a pc case for a living room pc so i made my own pc frame design.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Heblyz.
Archivos (13)
- Top_bar.stl STL · 111 KB
- Middle_Bar.stl STL · 93 KB
- Bottom_bar.stl STL · 130 KB
- Rear_Bar.stl STL · 104 KB
- Top_Right.stl STL · 160 KB
- Bottom_Right_PSU_Mount.stl STL · 384 KB
- Bottom_Right_V2.stl STL · 171 KB
- Top_Left.stl STL · 160 KB
- Bottom_Left.stl STL · 399 KB
- Bottom_Left_V2_PSU_Mount.stl STL · 206 KB
- SSD_FRAME.stl STL · 161 KB
- MX Switch mount.stl STL · 70 KB
- ATX Open PC Frame.step STEP · 397 KB
- Categoría
- Tecnología
- Formatos
- STL, STEP
- Descargas
- 5,124
- Publicado
Sobre este modelo

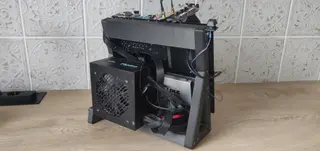

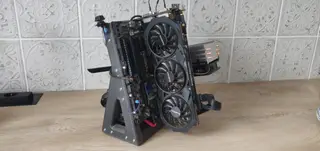

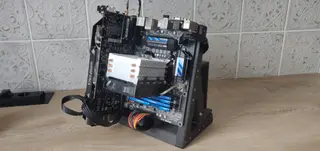

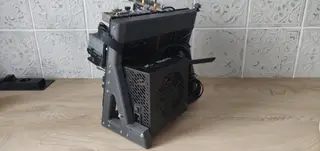

I needed a pc case for a living room pc so i made my own pc frame design as most of the models here are for ITX motherboards. I made it the simplest with the least filament amount I could and in a way it fit on a standard 220 x 220 bed. To build this PC frame you will need: -M3 threaded inserts -16 M3x20 screws -4 M3x10 screws -2 M3x30 screws for the PSU -Motherboard Standoffs (3D printed spacers can do the job) PETG filament would be safer for this print to resist temperatures but I printed it with standard PLA and had no issues.
EDIT: Added a revision of the two bottom side parts to allow better compatibility with more PSU. Also added more holes to the middle bar for the SSD bracket mounting.
