ATLAS 3D Scanner by Murobo

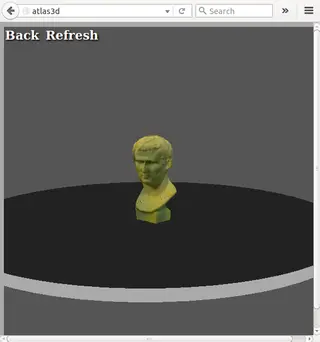

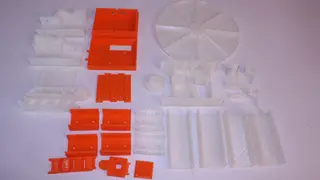

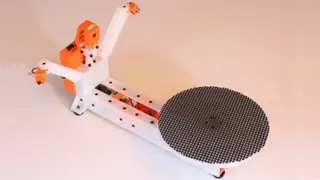

These are the printable models for the ATLAS 3D turntable laser scanner by Murobo. ATLAS 3D is a turntable 3D laser scanner based on the Raspberry Pi. It runs the open source FreeLSS http://www.freelss.org laser scanning software available on Github https://github.com/hairu/freelss/. ATLAS 3D is a successful Kickstarter that is now available to the public. The following models are required to build ATLAS 3D: - camera_arm.stl, qty 1 - camera_bracket.stl, qty 1 - camera_case_back.stl, qty 1 - camera_case_front.stl, qty 1 - camera_shaft.stl, qty 1 - frame_connector.stl, qty 6 - frame_section_2.stl, qty 4 - left_laser_arm.stl, qty 1 - right_laser_arm.stl, qty 1 - left_frame_section 3.stl, qty 1 - right_frame_section 3.stl, qty 1 - left_laser_holder.stl, qty 1 - right_laser_holder.stl, qty 1 - rpi_cable_carrier.stl, qty 4 - crossbar.stl, qty 5 - camera_tower.stl, qty 1 - camera_tower_front_plate.stl, qty 1 - table_coupler.stl, qty 1 - calibration_item.stl or checkerboard_calibration_item.stl, qty 1

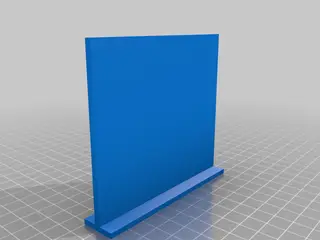

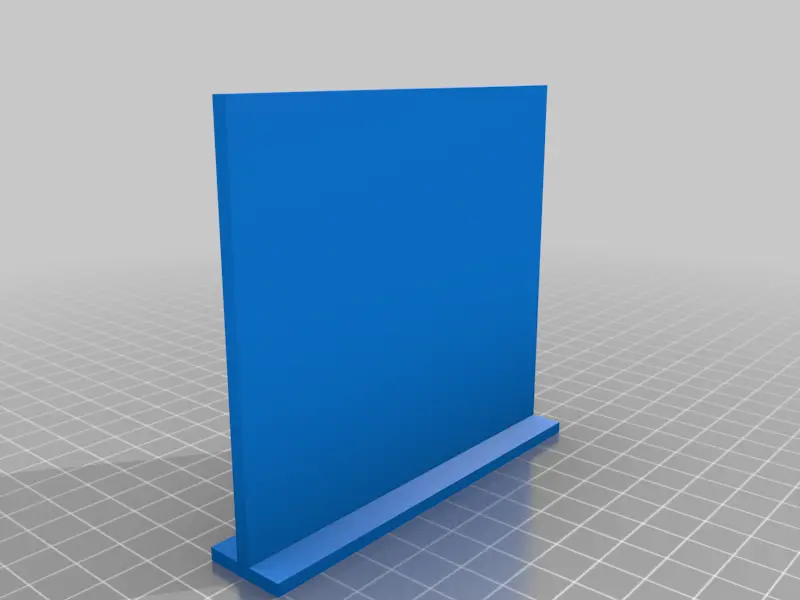

The calibrationPattern.pdf file needs to be printed and glued onto the checkerboard_calibration_item.stl model if you want to use the checkerboard auto-calibration. Raspberry Pi 2 and Raspberry Pi 1 Model B+ users need to print the below two models. - rpi_case_bplus_lower.stl - rpi_case_bplus_upper.stl

Raspberry Pi 1 Model B users need to print the below two models. - rpi_case_b_lower.stl - rpi_case_b_upper.stl

Only one of the following turntables needs to be printed. - turn_table_d4.stl, 4" turntable - turn_table_d5p5.stl, 5.5" turntable - turn_table_d7p5.stl, 7.5" turntable

The following models are either optional or alternatives models. - camera_bracket_no_support.stl - left_camera_tower.stl - right_camera_tower.stl

The following models are only for the acrylic version of the enclosure. - left_laser_hinge.stl - left_laser_hinge_holder.stl - right_laser_hinge.stl - right_laser_hinge_holder.stl

Assembly Video: https://www.youtube.com/watch?v=awtLSCLJ3qs Printable Instructions: http://www.soliforum.com/topic/13217/atlas-3d-scanner-instructions/
