Articulating, Wall-Mounted, Magnetic Phone Mount — modelo 3D

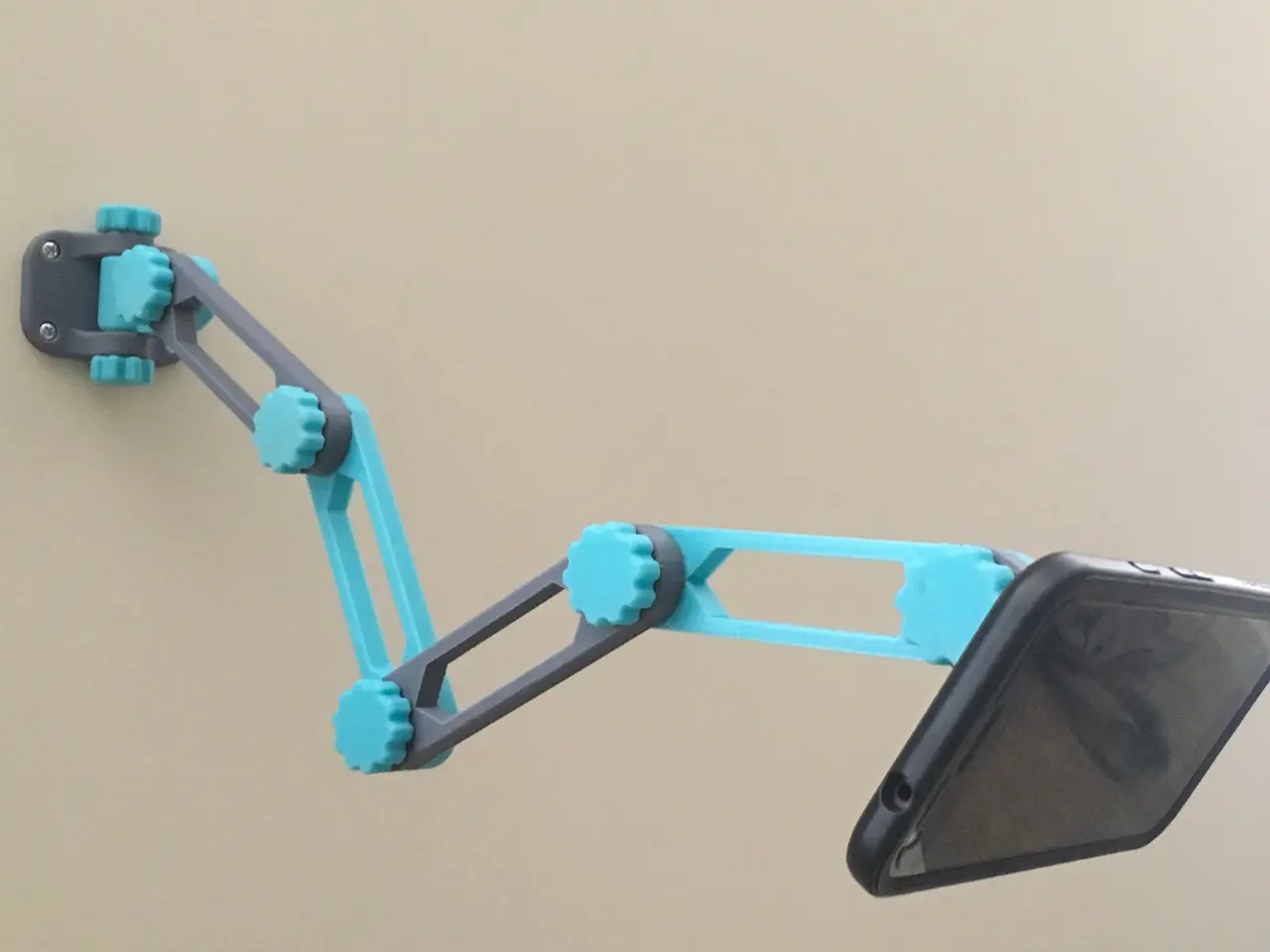

Articulating, Wall-Mounted, Magnetic Phone Mount

por Kenneth Haynie en Thingiverse

**Update (6/23/2018): I'm sharing this Fusion 360 model(I hope I did it right): https://a360.co/2KgA3Z9 I'm sorry to anyone who has tried to contact me. I've been busy with a full-time job plus engineering classes. Every time I log in, I see that I have infinity notifications waiting for me to...

Descargar los 11 archivos Ver en Thingiverse

11 archivos · 15,5 MB · se descargan uno tras otro

Licencia

Uso comercial permitido

CC BY 4.0 — Atribución

Puedes imprimirlo, modificarlo y venderlo dando crédito al autor.

Al descargar aceptas respetar la licencia y dar crédito a Kenneth Haynie.

Archivos (11)
Categoría
Tecnología
Formatos
STL
Descargas (todas las plataformas)
144,707
Publicado

Sobre este modelo

**Update (6/23/2018): I'm sharing this Fusion 360 model(I hope I did it right): https://a360.co/2KgA3Z9 I'm sorry to anyone who has tried to contact me. I've been busy with a full-time job plus engineering classes. Every time I log in, I see that I have infinity notifications waiting for me to address them. But, I finally took the time to figure out how to share the model so you can make changes or fix the model in any way you want. I'm glad so many people have gotten use out of my design. **Update (7/24/2017): Important notes in the print settings. I've been debating mounting a TV on the ceiling above my bed. The only reason I haven't done it is because of a fear of being crushed by a falling TV while I'm sleeping. This design allows me to watch Youtube, Netflix, or other streaming video while I'm falling asleep. Non-Printed Parts: Adhesive Metal Plate for Magnetic Phone Mounts 4-Pack Enkay 4480-C Magnets 4x Screws that fit in a 5 mm hole with a head diameter no larger than 7.9 mm 4x Wall Anchors for those screws Electrical Tape If I had to guess on the screw size based on the charts I found online, I would say it's a #10 screw, but I designed the wall mount around some unlabeled screws and anchors I had lying around.

Descripción original del autor, publicada en Thingiverse.
