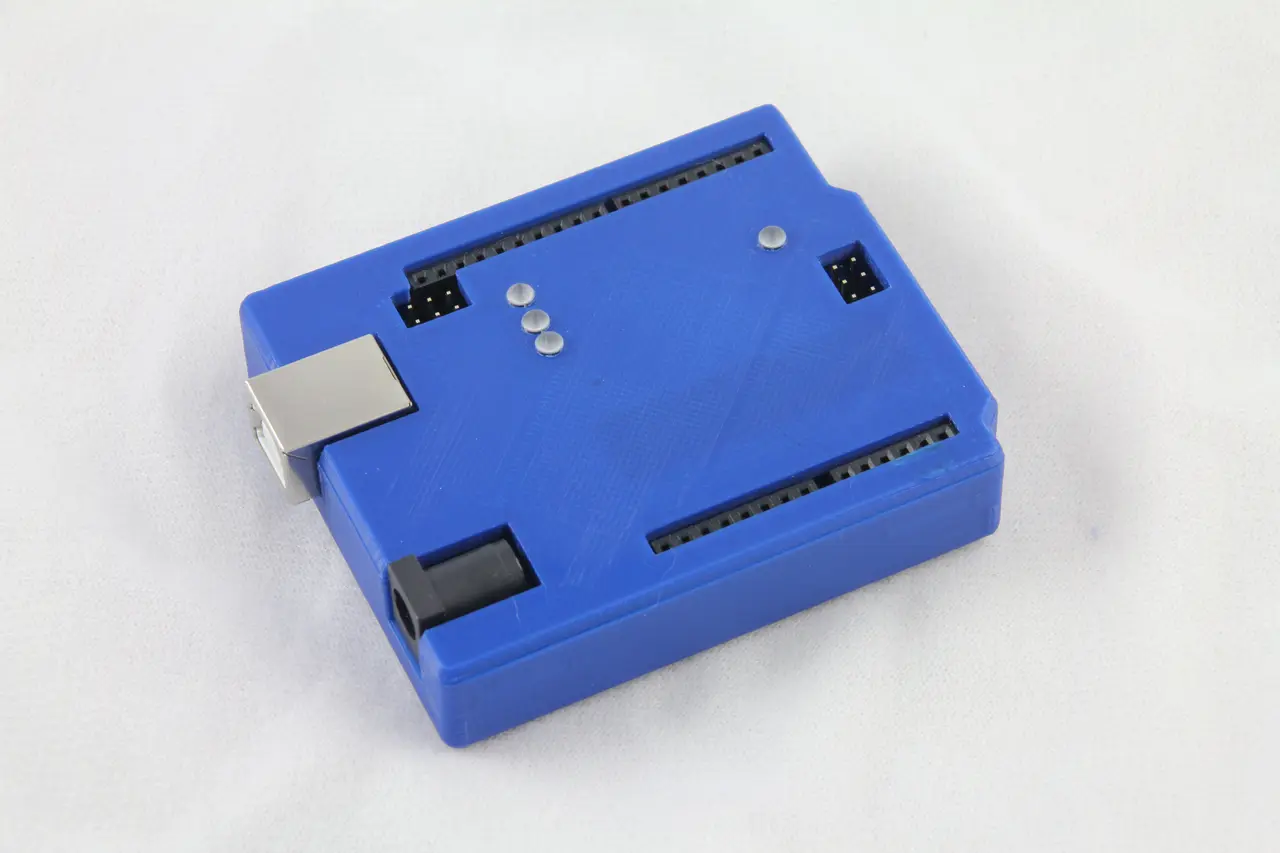

Arduino Uno Snug Case
por Scott Shumate en Thingiverse
A snug fitting case for the Arduino Uno with screw board mounts and a snap top. Shields may be installed over the top of the case. There are four holes on the top to view the four LEDs on the Arduino board. These holes can accommodate Bivar PLP2-250 light pipes for a more polished look. The screws..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Scott Shumate.
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 104,911
- Publicado
Sobre este modelo

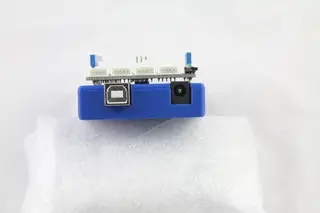

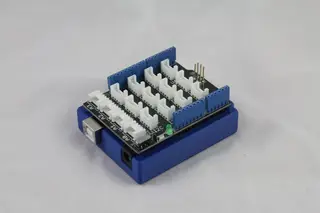

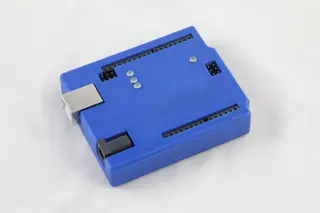

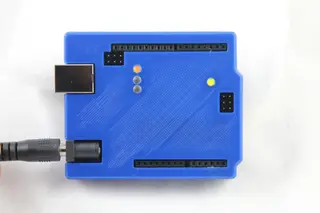

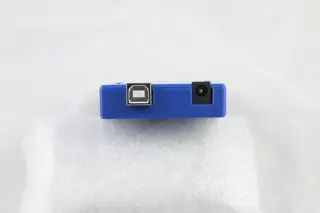

A snug fitting case for the Arduino Uno with screw board mounts and a snap top. Shields may be installed over the top of the case. There are four holes on the top to view the four LEDs on the Arduino board. These holes can accommodate Bivar PLP2-250 light pipes for a more polished look. The screws for the Arduino board are #2 x 1/4" thread rolling screws. For the Mega, see my Arduino Mega Snug Case. For the Raspberry Pi, see my Raspberry Pi Snug Case. Update 11/20/15: Added hole on top for the reset button.
Descripción original del autor, publicada en Thingiverse.
