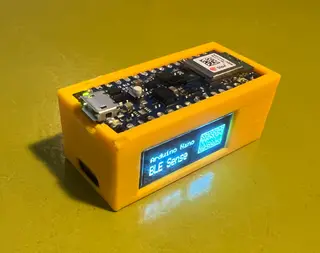

Arduino Nano BLE Sense Box
Details:
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Olga P.
Archivos (2)
- assembly.stl STL · 219 KB

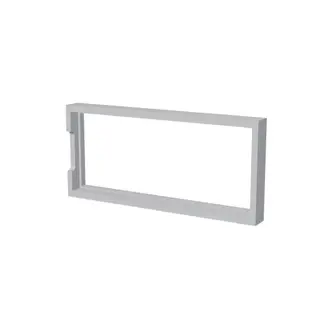

- board.stl STL · 16 KB
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 2
- Publicado
Sobre este modelo

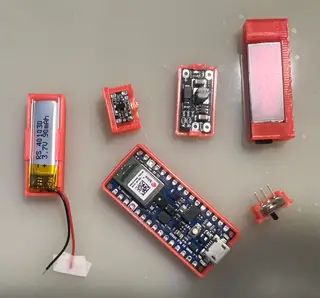

Details: 1. Arduino Nano BLE Sense (1st rev). 2. LiPol 90 mAh battery. 3. OLED 0.91 128x32 I2C. 4. USB C charger. 5. Boost convertor.

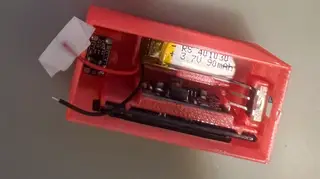

Soldering: 1. One of resistors (RPROG) on USB C charger is replaced to 15 kOm to provide proper charge DC. 2. Switch connects the battery either with the USB C port or with the board (through the boost convertor). They cannot works simultaneously. 3. The boost convertor gets 3.7 V and provides 5 V straight to the board VIN pin. 4. OLED uses the 3V3 board pin.

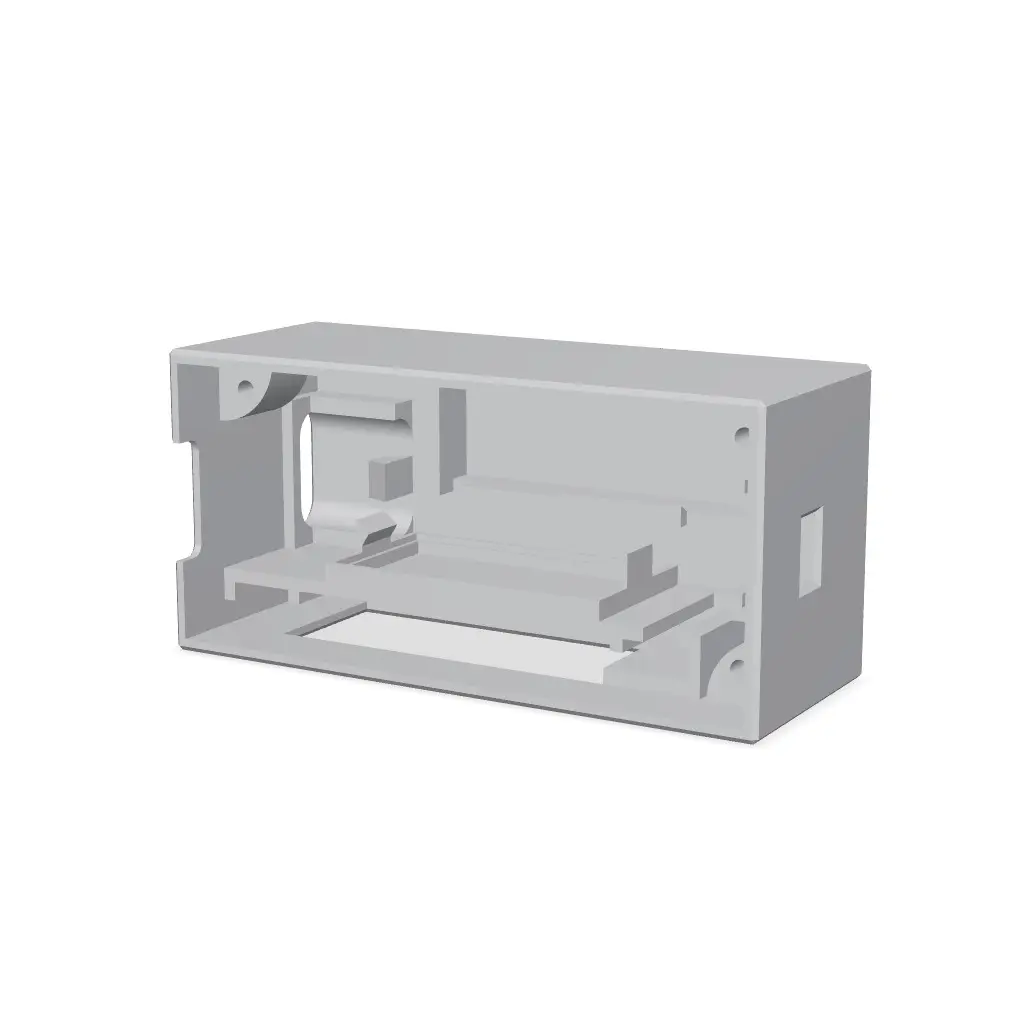

Box is created in FreeCAD (what a nightmare) and 3D-printed with PLA. And, of course, it damaged a bit during soldering :)
