Apple Lisa Mini

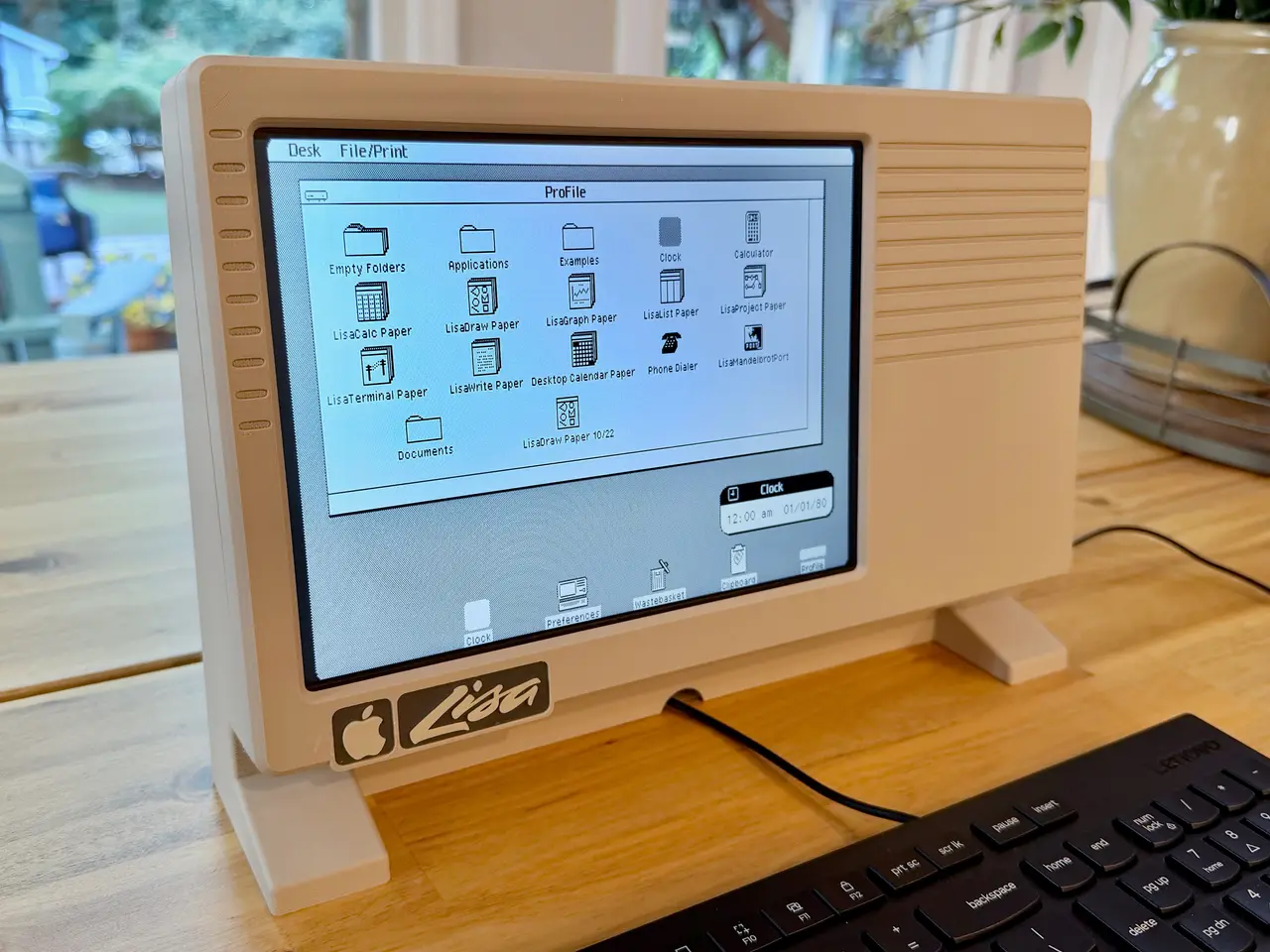

A compact, Apple Lisa–inspired enclosure built to house a LisaFPGA (https://www.tindie.com/products/lisafpga/) board — an FPGA reimplementation of the original 1983 Lisa — behind an 11.6" 1080p widescreen LCD. Designed to echo the original Lisa's look: front vent lines, a screen that leans back while the case stays vertical, and integrated L-shaped feet with no visible seam between leg and case. Highlights - Two badge holders on the front bezel: this includes a Lisa logo plate. The second holder ships blank (no Apple logo included, to avoid distributing Apple's trademark) — press-fit your own logo plate there if you want one. - Snap-in power switch cap that caps over the LisaFPGA's own onboard switch — no separate switch hardware required. - Printed in Polar Filament Retro Platinum PLA (metallic silver/platinum finish) for a classic-computing look.

You'll need - A LisaFPGA board and an 11.6" 1080p widescreen LCD + controller board - 12V power input, 2x buck converters (splits to 5V for the LisaFPGA and LCD), plus some low-profile/right-angle cabling — the full parts list with links is in the repo - My LisaFPGA fork (https://github.com/wottle/LisaFPGA), which adds the ability to offset the displayed image so it fits the case's screen opening (sized for the original 9.7" 4:3 Lisa window, not the 1080p widescreen panel). Flash it before closing up the case — once assembled, you lose USB-C data access without partial disassembly.

Printing Front and back shells need a 350mm bed (330mm wide) and both currently require some supports. Full slicer settings, orientation photos, and per-part notes are in the repo. Full docs: complete bill of materials, step-by-step assembly instructions with photos, and printing notes are all in the GitHub repo: https://github.com/wottle/lisa-mini
