Anycubic Kobra 2 Pro camera holder
por telechubby en Printables
Camera holding arm models for Anycubic Kobra 2 / Pro
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a telechubby.
Archivos (4)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 1,481
- Publicado
Sobre este modelo

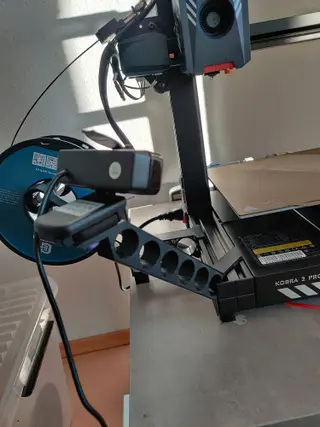

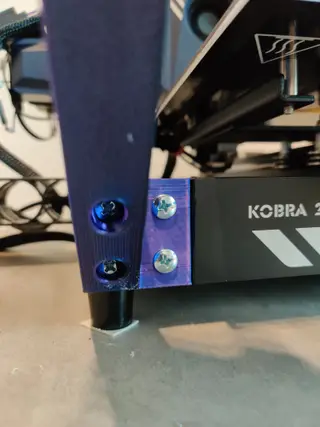

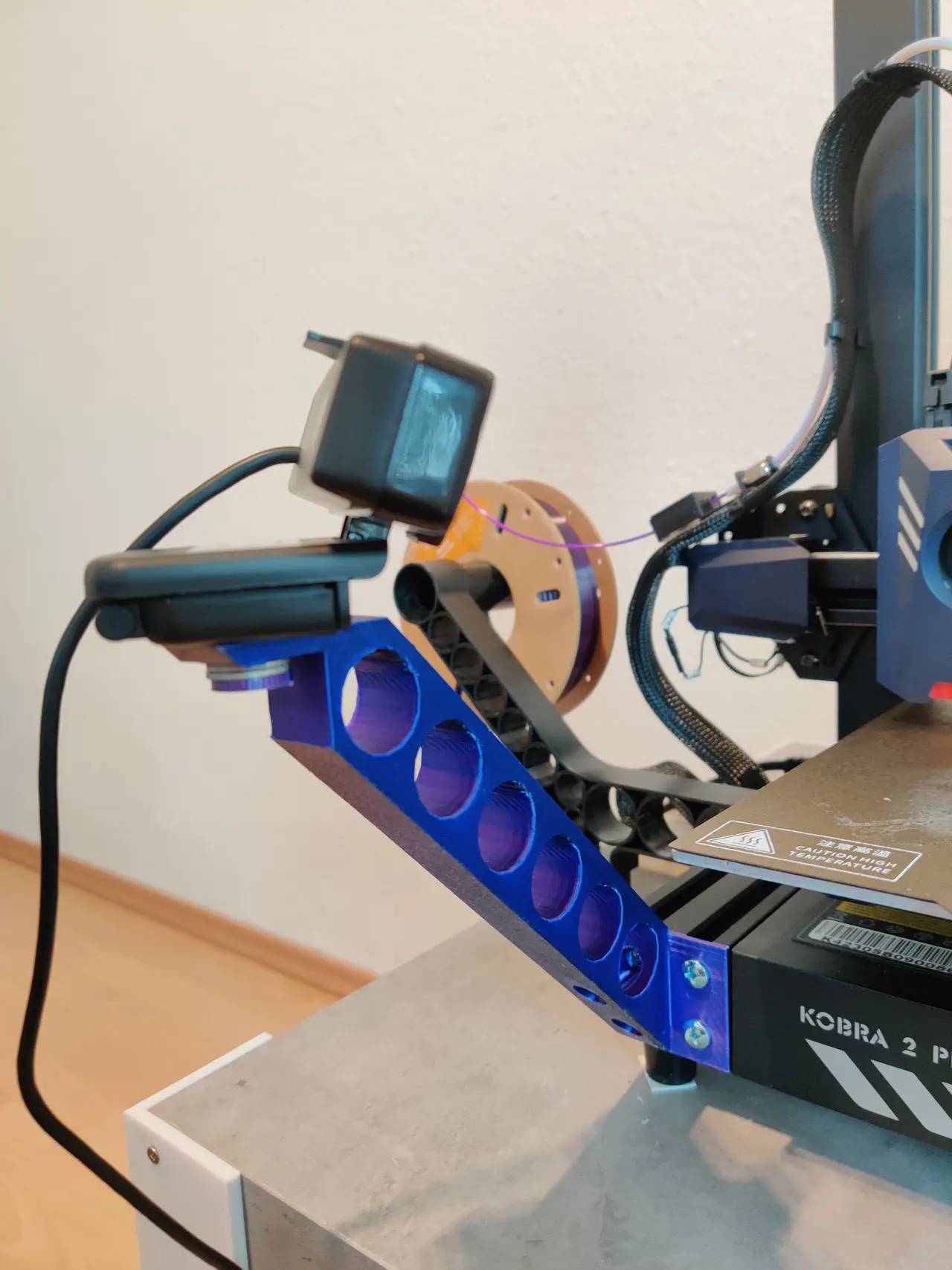

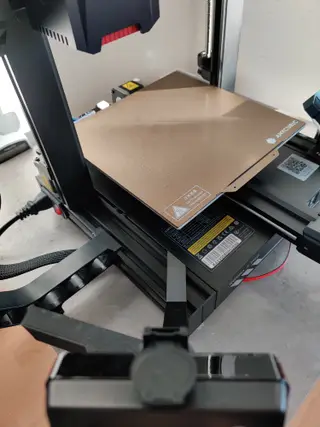

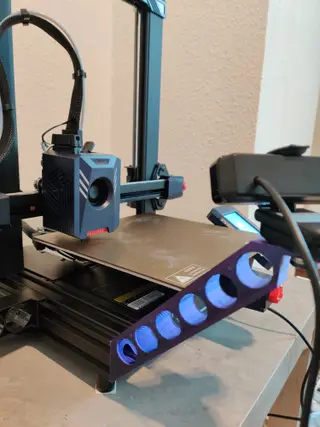

“Front” model was the first design and it requires screws. “Diagonal” and “side” models slide into the rails so they don't require screws. If your printer doesn't have threaded screw holes these should do the job. Although I designed these for my K2Pro, they should fit any printer with 4040 V-slot aluminum profiles. I also added an LED holder design on which you can stick LED strips to light up the print area.
Print settings for Kobra 2 Pro: Nozzle: 0.4 mm Layer: 0.2 mm Brim: needed only for the “front” model Supports: no
Camera mount screw that I used: https://www.printables.com/model/152911-camera-tripod-screw-14-20-unc
Descripción original del autor, publicada en Printables.
