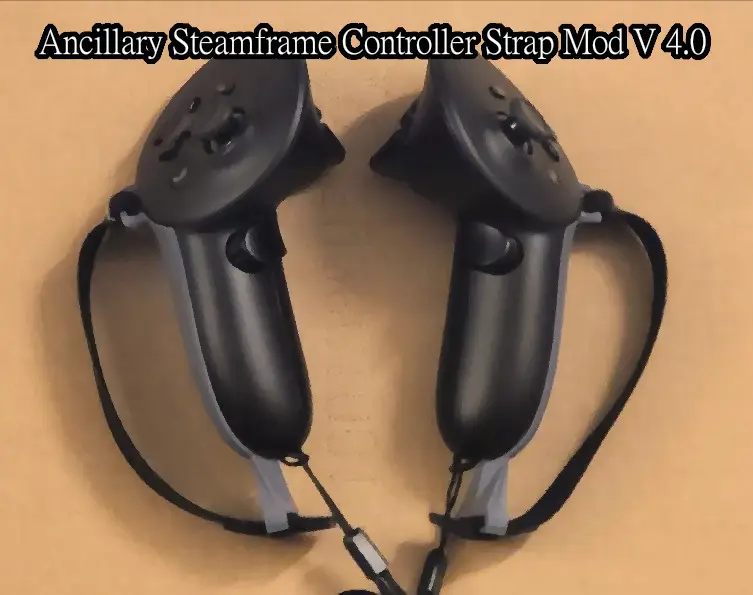

Ancillary Steam Frame Controller Strap Mod (WIP) UPDATE 4.0

New version using official cad data!!!

(If you find any of my models for sale online (ebay, amazon, etc) it is not me, i do not sell prints; especially not at those insane prices. They are all listed as non-commercial works. I do not have a patreon or kofi or any donation platform. These models are only listed here on printables, for free, for you to print or use a print service like PCBway or JLCPCB, or your friends.)

This is WIP!! - but confirmed working now My frame arrived! so i was able to test and refine to version 4,0: - 4.0 Version Uploaded - Confirmed working - Its tight the first few times, press hard! - This version engages all of the clips (2.0 does not)

- Fit is much tighter along all edges

- Scaling corrected

- Curves refined and smoothed

- Top strap ring reduced and repositioned

- Bottom strap ring offset increased and strengthened

Use velcro cable ties as your strap:

Thank you very much to the following users for their help: - @nineball_5466262 - for model tweaks,

- @strider_3246239 - For measurement data

- @TreePDX - For Feedback and testing

- @FunkeCoder23_5466367 - For Feedback, testing, and reference data.

- @Quell_1272497 - For feedback and testing

Print.. vertical .. 2 of them with one mirrored.

Update: added a version without the bottom ring for use with chad's bottom ring design.
