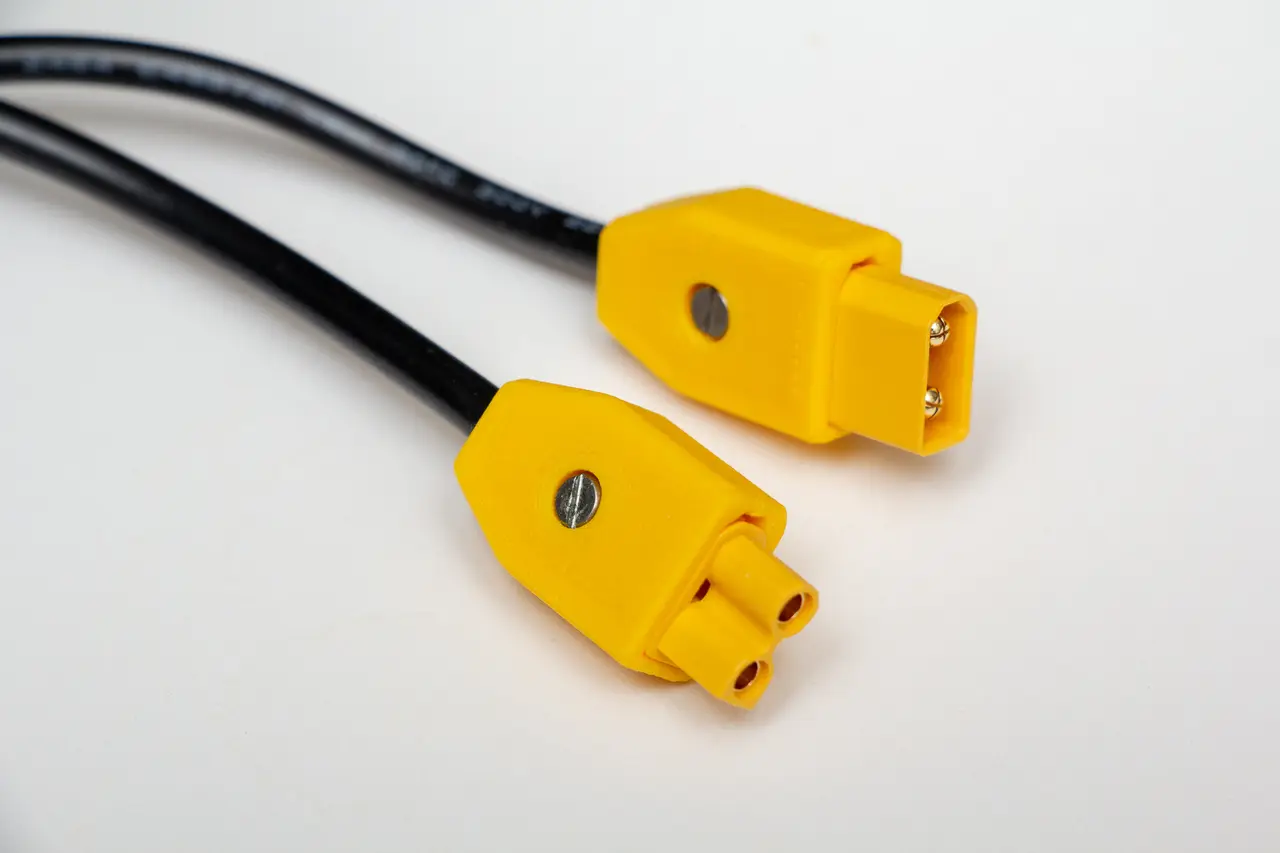

AMASS XT30 Strain-Relief Housing – Slim, for Ø3.4 mm Cable (20 AWG)
por András Sümegi en Printables
This XT30 connector housing is designed for round cables with an outer diameter of Ø3.4 mm.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a András Sümegi.
Archivos (1)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 717
- Publicado
Sobre este modelo
Most XT30 housings on Printables are designed for bulky RC/drone battery leads, typically using 14–16 AWG silicone wire for relatively high-current RC/drone applications. I needed a connector housing for a much thinner cable — an aquarium lighting cable with an outer diameter of Ø3.4 mm. I couldn’t find one, so I designed my own. Hardware Requirements - 1× M2×8 mm pan-head or round-head screw (a button-head screw also works)
- 1× M2 standard nut
Recommended Print Settings - Nozzle: 0.4 mm
- Layer height: 0.20 mm (or 0.15 mm for slightly finer detail)
- Supports: None required; print both halves flat on the bed
- Infill: 100%, or use 4+ perimeters
Material Selection Choose the filament according to the expected operating conditions: - PETG / ABS / ASA: Recommended for applications that may run warm, such as enclosed aquarium hoods, continuously operated lighting systems, or installations near power supplies.
- PLA: Suitable for low-temperature applications where no significant local heat buildup is expected.
Descripción original del autor, publicada en Printables.
