Adjustable RC car/truck motor mount — modelo 3D

Adjustable RC car/truck motor mount

por Gizmo DocTornos en Thingiverse

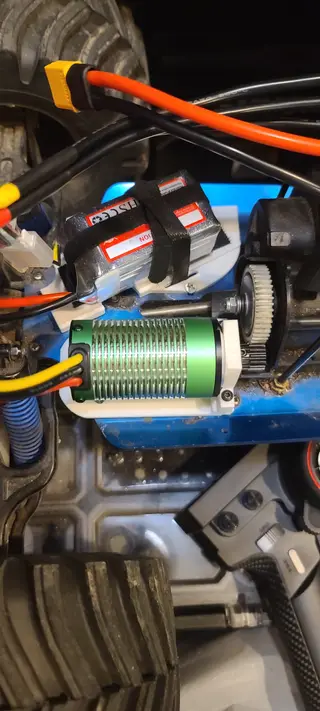

Made this to convert an old nitro rc truck to electric. Its made for the 2000's Tamiya Terra Crusher (Model TGM-02) but could easily be modified to fit other models. wanted to be able to swap pinion gears easily while still having a fairly strong connection so that's why I went with the dovetail...

Descargar gratis Ver en Thingiverse

Todos los archivos (2) en un ZIP

Licencia

Uso comercial permitido

CC BY-SA 4.0 — Atribución, compartir igual

Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Gizmo DocTornos.

Archivos (2)
Categoría
Repuestos
Formatos
STL
Descargas
3
Publicado

Sobre este modelo

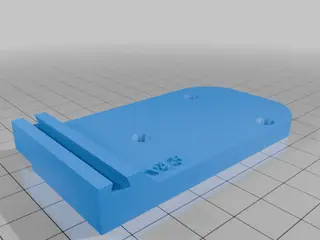

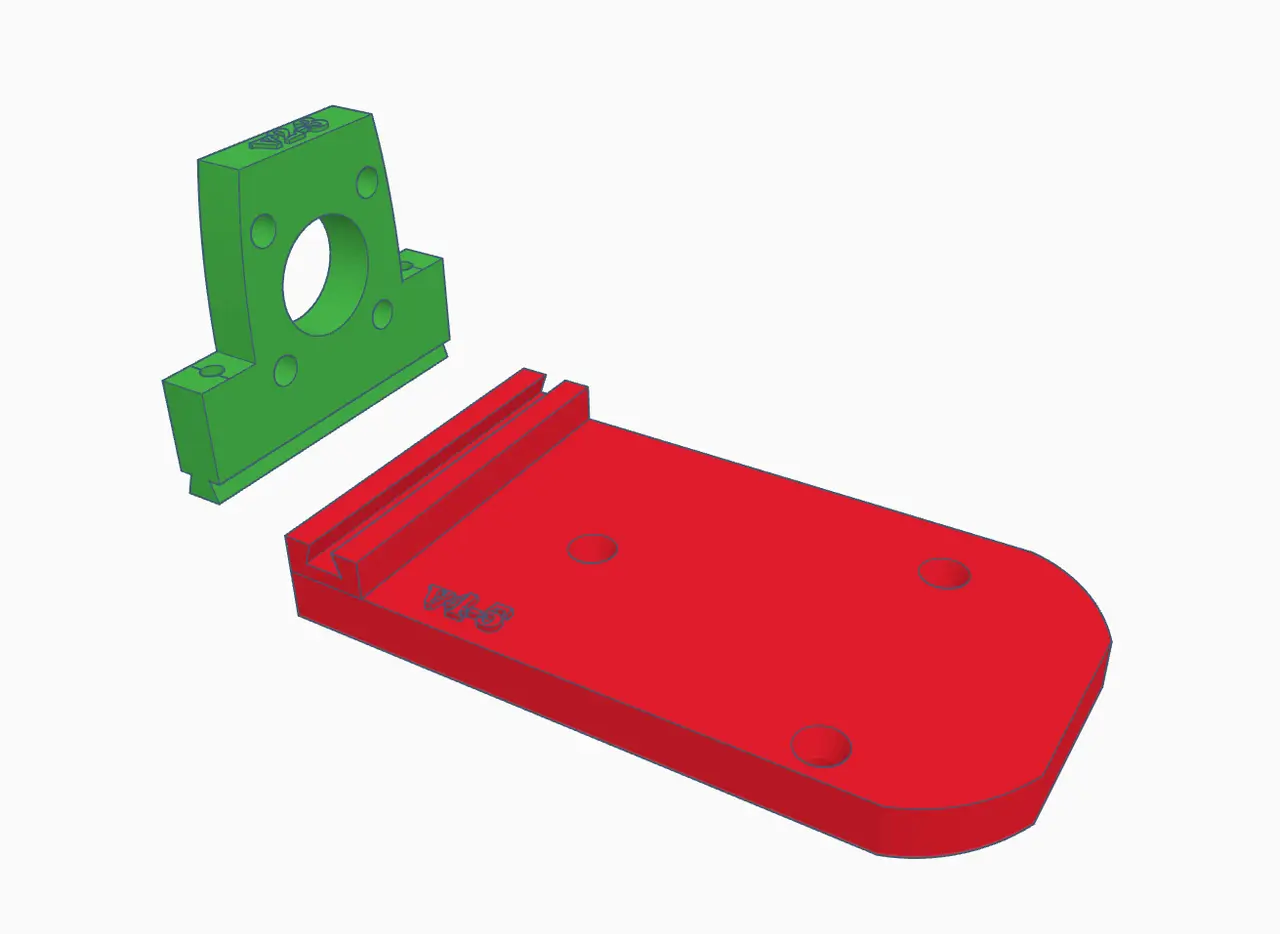

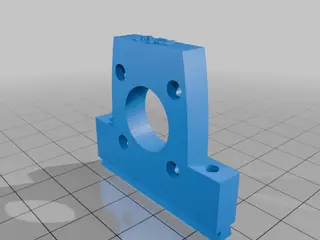

Made this to convert an old nitro rc truck to electric. Its made for the 2000's Tamiya Terra Crusher (Model TGM-02) but could easily be modified to fit other models. wanted to be able to swap pinion gears easily while still having a fairly strong connection so that's why I went with the dovetail and locking screws. So far its held up just printed in PLA @100% but I plan to reprint in PETG. Uses two m3 ( ~20mm) screws on either side to lock the motor mounting plate in place on the dovetail groove of the base plate. My motor uses 4 m3 mounting screws 25mm apart, so that is the spacing of the current motor mounting plate but again can easily be modified to fit any motor you like (within reason)

Descripción original del autor, publicada en Thingiverse.
