Adjustable ActionCam Wall Mount
por Thorsten M en Thangs
Wall Mount for Marshall CV-50 and AIDA-Series
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Thorsten M.
Archivos (19)
- 1-4inch Knob Plug v8.stl STL · 6 KB
- 1-4inch Screw Knob v8.stl STL · 552 KB
- Cam Holder - 1-4 inch Klemm Washer 0,5mm 1x.step STEP · 104 KB
- Cam Holder - 1-4 inch washer 1x.step STEP · 10 KB
- Cam Holder - Spacer Front 2x.step STEP · 9 KB
- Cam Holder - Spacer Rear 1x.step STEP · 10 KB
- Cam Holder - Spacer Top 1x.step STEP · 9 KB
- Cam Holder ---- Sidepanel L.step STEP · 710 KB
- Cam Holder ---- Sidepanel R.step STEP · 600 KB
- Cam Holder -Spacer Washer 6x.step STEP · 9 KB
- Cam Holder CAM MOUNT no HeatSet_v1.step STEP · 130 KB
- Cam Holder CAM MOUNT no HeatSet.step STEP · 146 KB
- Cam Holder CAM MOUNT.step STEP · 245 KB
- CAM MOUNT for AIDA nHS.step STEP · 701 KB
- M5 Knob Plug.stl STL · 3 KB
- M5 Knob.stl STL · 542 KB
- SOMA Action Cam Wall Mount for Marshall CV.3mf 3MF · 1,7 MB
- Cam Holder CAM MOUNT no HeatSet_v1.1.step STEP
- CAM MOUNT for AIDA nHS.step STEP
- Categoría
- Tecnología
- Formatos
- STL, STEP, 3MF
- Descargas
- 5
- Publicado
Sobre este modelo

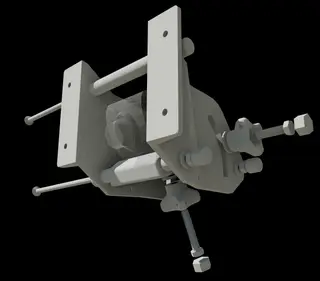

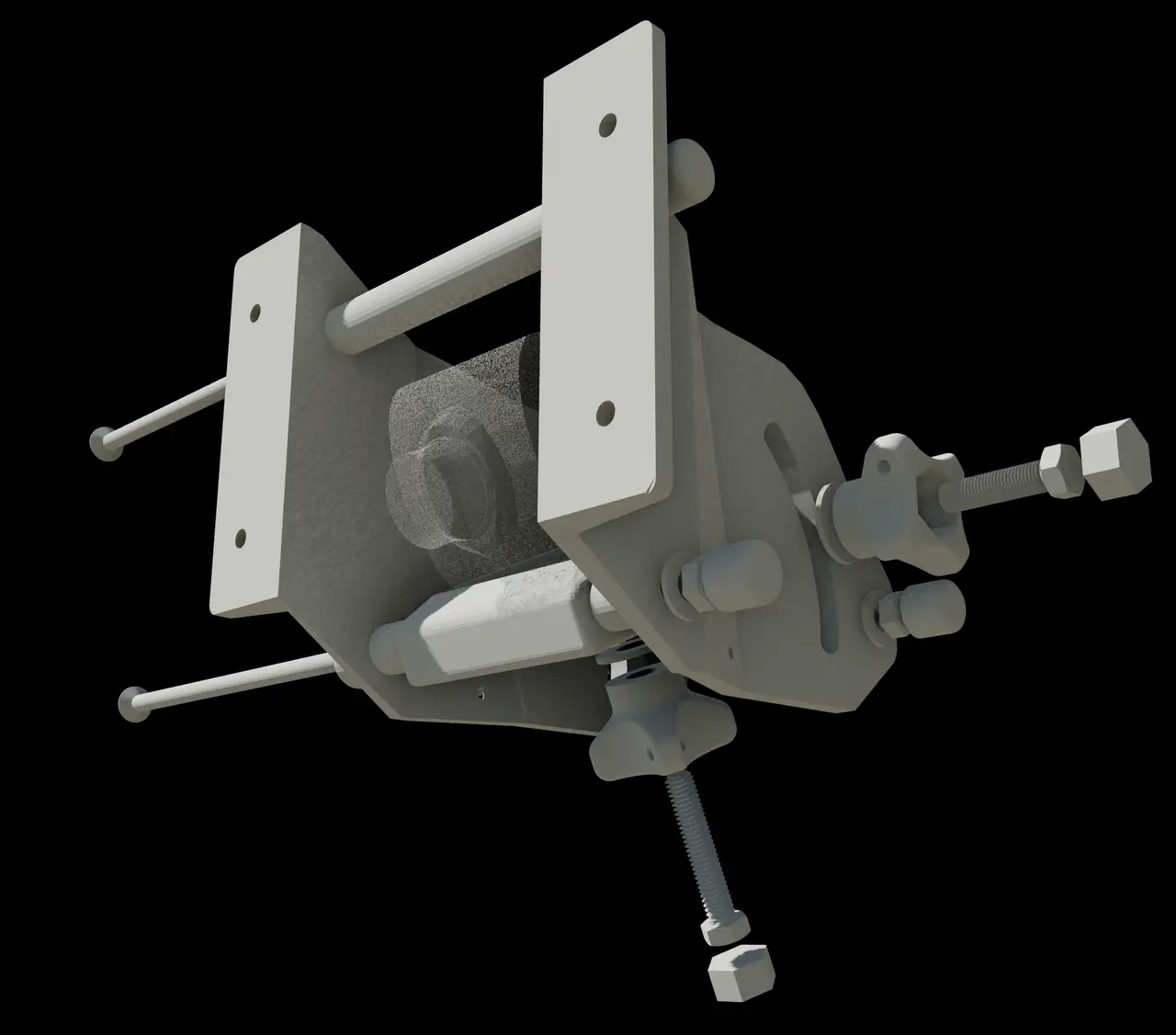

Wall Mount for Marshall CV-50 and AIDA-Series

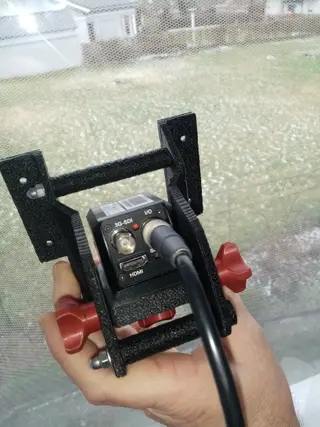

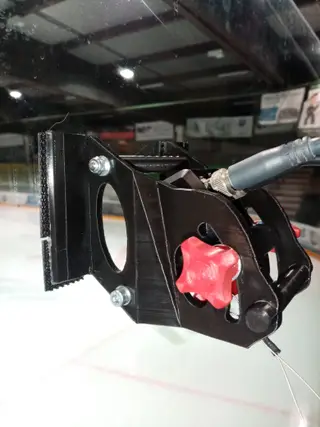

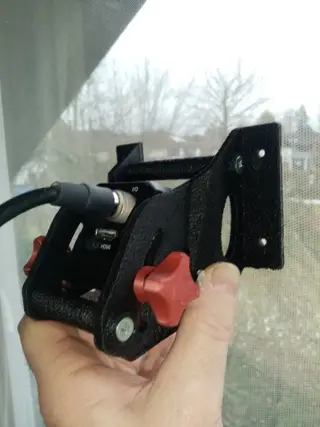

This Wall Mount lets you fix your Marshall Action Cam to walls, glass, ceilings, beams etc. I designed it originally to mount Cameras on the glass wall around ice hockey rinks,but it can be attached to any appropriate surface. By flipping the "Cam Mount Plate" upside down and attaching the camera "reverse", the full range of 360deg along the vertical axis can be covered.
Over time, I will upload other "Mounting Plates" with different spacers for other camera models.
2026-07-14: Added "CAM MOUNT no HeatSet" for use without threaded Heat Insers 2026-07-18: Added "CAM MOUNT for AIDA nHS" for Marshall AIDA-series
Layer Height: 0.2mm Wall Count: 3 Infill: Gyroid 10% Material: PETG, ABS, ASA Fuzzy Skin: displaced Ridged Multifractal Support: normal (manual) Print upright For outdoors, use PETG or other UV-resistant materials
Hardware: 2x M5x90 Bolt, countersunk 1x M5x70 Bolt, countersunk 2x M5x20 Hex Bolt 1x 1/4"x20mm Hex Bolt 2x M5 Nut 3x Self locking M5 Nut 2x Threaded Inserts M5 4x 75x25mm 3M Dual Lock Strips
