A4 Pen Plotter
por Juan Gg en Thingiverse

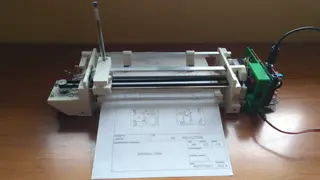

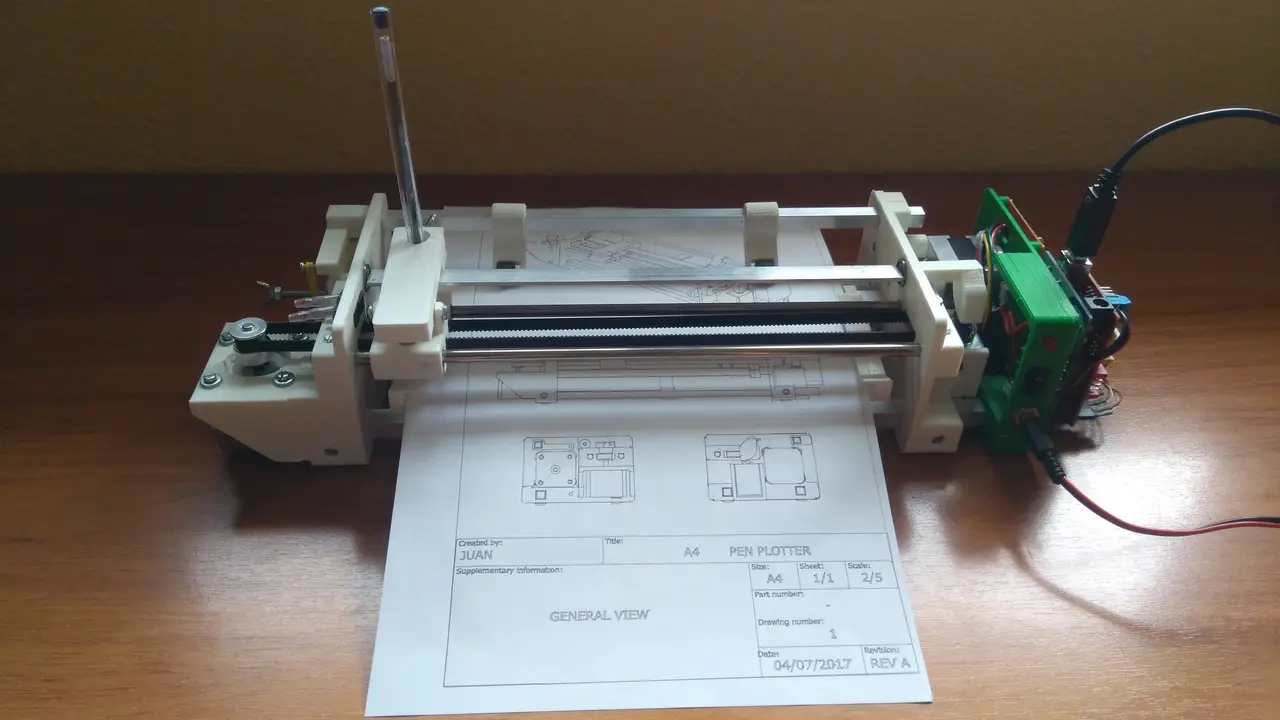

This is a pen plotter capable of printing on A4 paper sheets. It is intended to be similar to the Aritma Amagraph pen plotter, be as compact and robust as posible as well as reliable. It is controlled by means of an arduino with a grbl shield, wich drives the x and y motors, and the solenoid used...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Juan Gg.
Archivos (33)
- Steel_shaft_6mm.stl STL · 9 KB
- Bearing_13x4x5_x4mm.stl STL · 32 KB
- Print_Right_Frame_x1.stl STL · 255 KB
- Print_Left_Frame_x1.stl STL · 278 KB
- Alu_Round_Profile_12_mm.stl STL · 10 KB
- Alu_square_profile_8_mm.stl STL · 2 KB
- Print_Paper_guide_b_x2_one_mirrored.stl STL · 31 KB
- Alu_square_profile_10_mm_b.stl STL · 2 KB
- Print_Up-down_lever_x1.stl STL · 19 KB
- Print_Switch_support_plate_x1.stl STL · 52 KB
- Print_Pen_lever_x1_.stl STL · 36 KB
- Print_Papper_roller_lever_x1.stl STL · 17 KB
- Alu_15x2_mm_profile.stl STL · 2 KB
- Print_X_axis_carriage.stl STL · 70 KB
- Print_Papper_roller_end_lever_x1.stl STL · 11 KB
- Print_Left_Frame_Y_bearing_support_x1.stl STL · 72 KB
- Alu_square_profile_10_mm.stl STL · 3 KB
- Print_Papper_roller_support_x2.stl STL · 38 KB
- Print_Electronics_support_plate_x1.stl STL · 166 KB
- step_Paper_roller_lever1.step STEP · 114 KB
- step_paper_roller_lever_2.step STEP · 57 KB
- step_Paper_roller_support.step STEP · 104 KB
- step_Pen_support.step STEP · 130 KB
- step_pen_up_down_lever.step STEP · 108 KB
- step_Y_bearing_support.step STEP · 82 KB
- step_X_carriage.step STEP · 322 KB
- step_electronics_support_2.step STEP · 244 KB
- step_electronics_support_1.step STEP · 200 KB
- step_paper_guide_2_x2.step STEP · 138 KB
- step_Right_Frame.step STEP · 814 KB
- step_paper_guide_1_mirror_.step STEP · 213 KB
- step_Left_Frame.step STEP · 714 KB
- Assembly_reference.step STEP · 3,6 MB
- Categoría
- Tecnología
- Formatos
- STL, STEP
- Descargas
- 36,418
- Publicado
Sobre este modelo

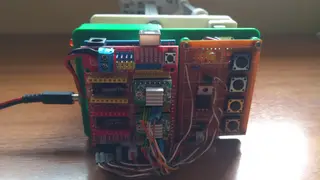

This is a pen plotter capable of printing on A4 paper sheets. It is intended to be similar to the Aritma Amagraph pen plotter, be as compact and robust as posible as well as reliable. It is controlled by means of an arduino with a grbl shield, wich drives the x and y motors, and the solenoid used for lifting-lowering the pen in response to g-code generated in inkscape and sent through grbl controller. Scroll down for a gif of it working, bill of materials, instructions... Whatch a video here: https://www.youtube.com/watch?v=bf3e0SFeA1A https://youtu.be/e5mVlJlMX_E More projects here: https://juangg-projects.blogspot.ca/ Interested in buying this thing? I don't have the means to do that right now. You'll have to source the parts yourself, which will be cheaper than what I could prepare plus international shipping, which is a big show-stopper. But if you want updates if there are any, you can fill in the form below https://goo.gl/forms/OT3xdM03sOkoXfs53
Descripción original del autor, publicada en Thingiverse.
