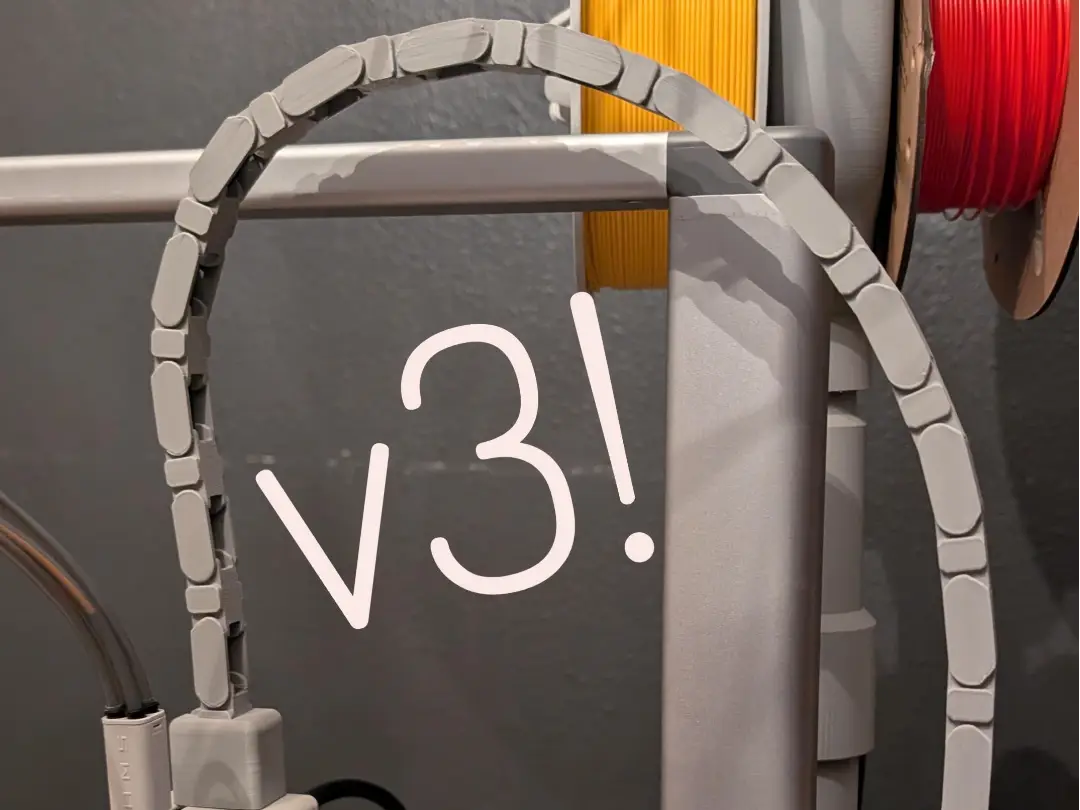

A1 Hotend Cable Chain v3!
por Moskk83 en MakerWorld
UPDATE - 21 June 2026: V3 is has simpler components. I think it looks better. Added a GIF showing assembly process.
MakerWorld entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Moskk83.
Archivos (18)
- A1base.stl STL · 135 KB
- A1cover.stl STL · 259 KB
- A1chainA.stl STL · 80 KB
- A1chainB.stl STL · 132 KB
- XbaseA1.stl STL · 116 KB
- XbaseA2.stl STL · 16 KB
- XbaseB1.stl STL · 53 KB
- XbaseB2.stl STL · 42 KB
- XchainA.stl STL · 75 KB
- XchainB.stl STL · 91 KB
- XchainEXT.stl STL · 84 KB
- XbaseB1 AMS.stl STL · 52 KB
- XchainA AMS.stl STL · 76 KB
- XchainB AMS.stl STL · 78 KB
- XchainEXT AMS.stl STL · 77 KB
- OBSOLETE A1baseB.stl STL · 111 KB
- OBSOLETE A1baseA.stl STL · 129 KB
- A1ChainV3.3mf 3MF · 747 KB
- Categoría
- Para tu impresora
- Formatos
- STL, 3MF
- Descargas
- 28,852
- Publicado
Sobre este modelo
UPDATE - 21 June 2026:
- V3 is has simpler components.
- I think it looks better.
- Added a GIF showing assembly process.
- Forgive my dirty hands, I'm a mechanic.
- I don't have a solution for mounted AMS Lite, as I use a different mount by JJTechPrints: https://makerworld.com/en/models/796462-ams-lite-rotating-stand-for-a1#profileId-735644.
- Let me know if you have a problem and I'll try to help. Also, thank you to the community. You are great and full of creative ideas and amazing solutions!
I also made a chain for the Bambu A2L: https://makerworld.com/en/models/2953085-a2l-hotend-cable-chain#profileId-3309088.
UPDATE - 22 September 2024:
- NO SCREWS NEEDED! - New version snaps in place.
- You need one XbaseA1, one XbaseA2, one XbaseB1, one XbaseB2, and 14 XchainA, and 15 XchainB.
- Some A1 versions have a longer cable. If that's the case for you, print XchainEXT and add it after XbaseB1.
- If you have already printed the old version just print XbaseA1, XbaseA2, XbaseB1, XbaseB2, and one XchainB.

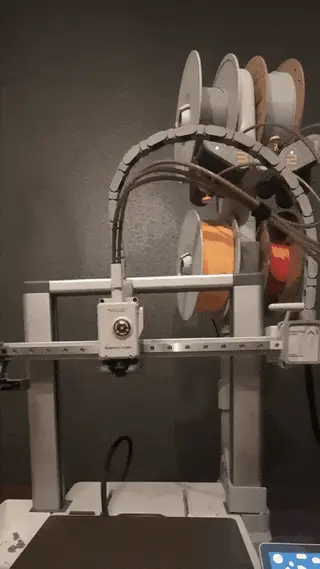

- Parts to accommodate a top-mounted AMS Lite are up! Just replace XbaseB1, one XchainA, and one Xchain B. (Pictured in green). Extender for longer cable also uploaded.

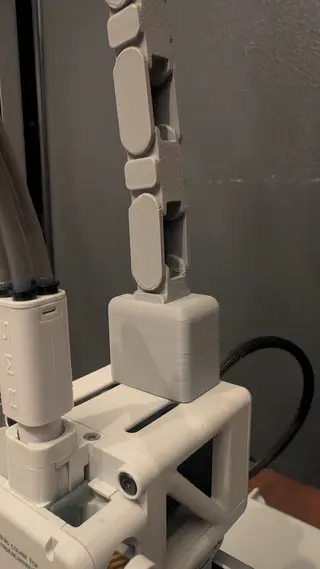

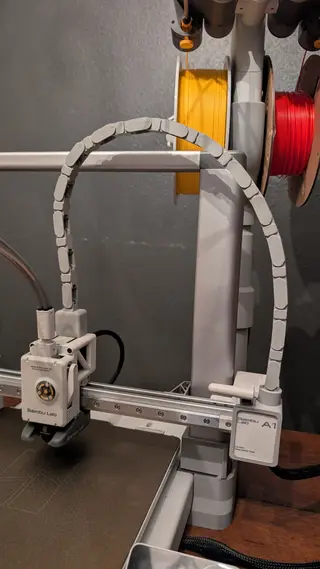

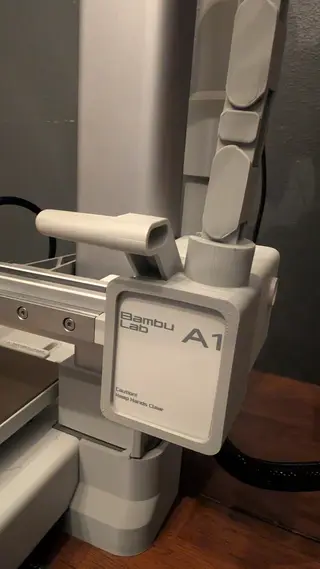

ORIGINAL: Hotend cable management for the Bambu Lab A1. The chain is designed to flex in only one direction to avoid sagging. You WILL need one M3 10mm and two M3 6mm screws. Print one BaseA, one BaseB, 14 ChainA, and 14 ChainB pieces. Supports are needed. If the chain is not long enough, @BentSpoon uploaded a remix of BaseB that will solve that problem. (Thanks Keoni).
