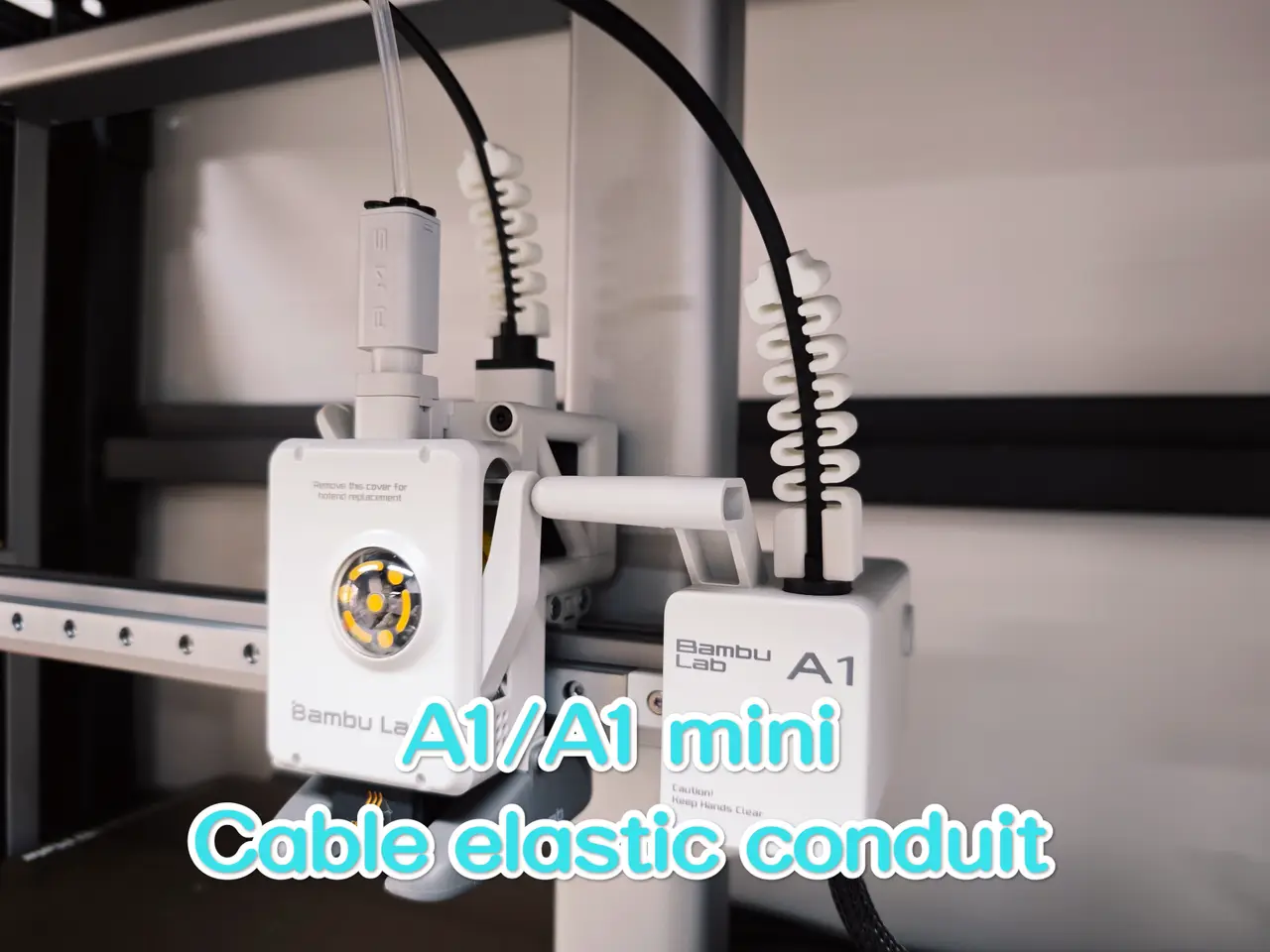

A1/A1 mini Cable elastic conduit

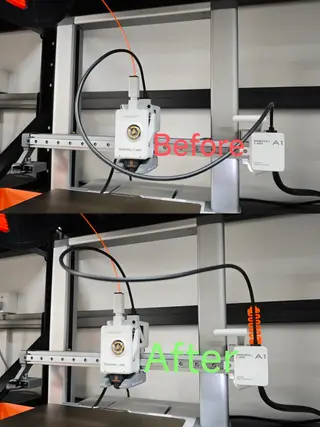

The cable flexible guide tube designed for A1 and A1 mini can lift the sagging cable to prevent cable interference with the tool head movement. Short ones are installed on the line at one end of the toolhead, while long ones are installed on the line at one end of the X-axis

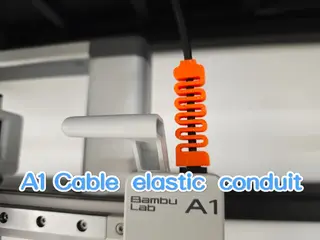

Installation steps: As shown in the figure, align the opening of the cable guide tube with the cable, and pay attention to the bottom of the cable guide tube should be above the cable base. Insert the cable along the opening into the cable guide tube. Pull the cable guide tube down as a whole until the device is inserted into the cable base. 为A1与A1 mini设计的线缆弹性导向装置，可以抬高下垂的线缆，防止线缆干扰工具头运动。 短的安装在工具头一端的线上，长的安装在X轴一端的线上 安装步骤： 1.如图所示，将该装置开口与线缆对齐，请注意装置底部需在线缆底座的上面。 2.将线缆沿开口塞入装置中。 3.将装置整体向下拉，直至装置插入线缆底座。
