A Sturdy Simple Spool Holder
I needed several spool holders and I couldn't find anything quite right for me, so I created this attractive, super simple, yet surprisingly sturdy spool holder that is entirely 3D printed and snaps together. The standard version is designed to fit most filament spools up to 1 kg, plus there's a wid
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Devin B.
Archivos (5)

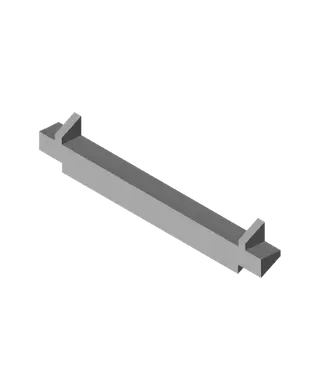

- simplespool-legs-1.stl STL · 22 KB
- simplespool-legs-wide.stl STL · 5 KB
- simplespool-side-1.stl STL · 52 KB

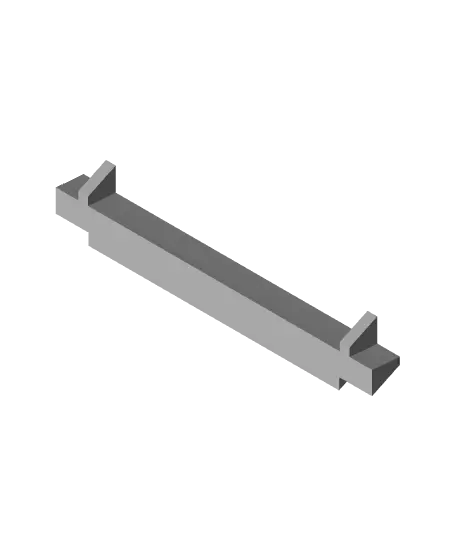

- simplespool-top-1.stl STL · 80 KB
- simplespool-top-wide.stl STL · 49 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 321
- Publicado
Sobre este modelo

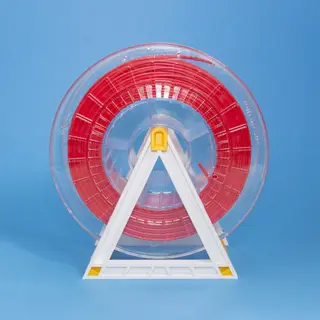

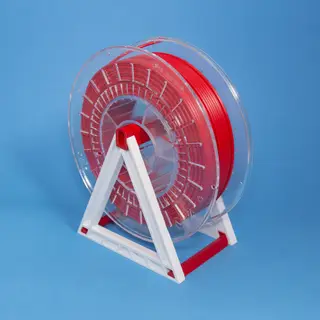

I needed several spool holders and I couldn't find anything quite right for me, so I created this attractive, super simple, yet surprisingly sturdy spool holder that is entirely 3D printed and snaps together. The standard version is designed to fit most filament spools up to 1 kg, plus there's a wide version for spools up to 90mm wide.
I suggest printing with 2 shells and 10% infill

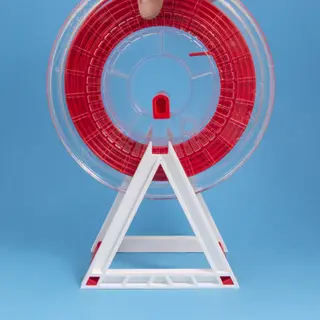

The top rests on the holder for easy spool removal, and the bottom legs snap into place to hold the sides together. Depending on the accuracy of your printer you may have to use an adhesive like E6000 (https://amzn.to/45dl0Ix).

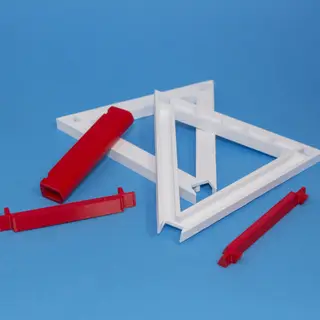

Print 2 of the sides, 2 of the legs, and 1 top part.
You can find a top loading version of the holder here (https://than.gs/m/912218).
Descripción original del autor, publicada en Thangs.
