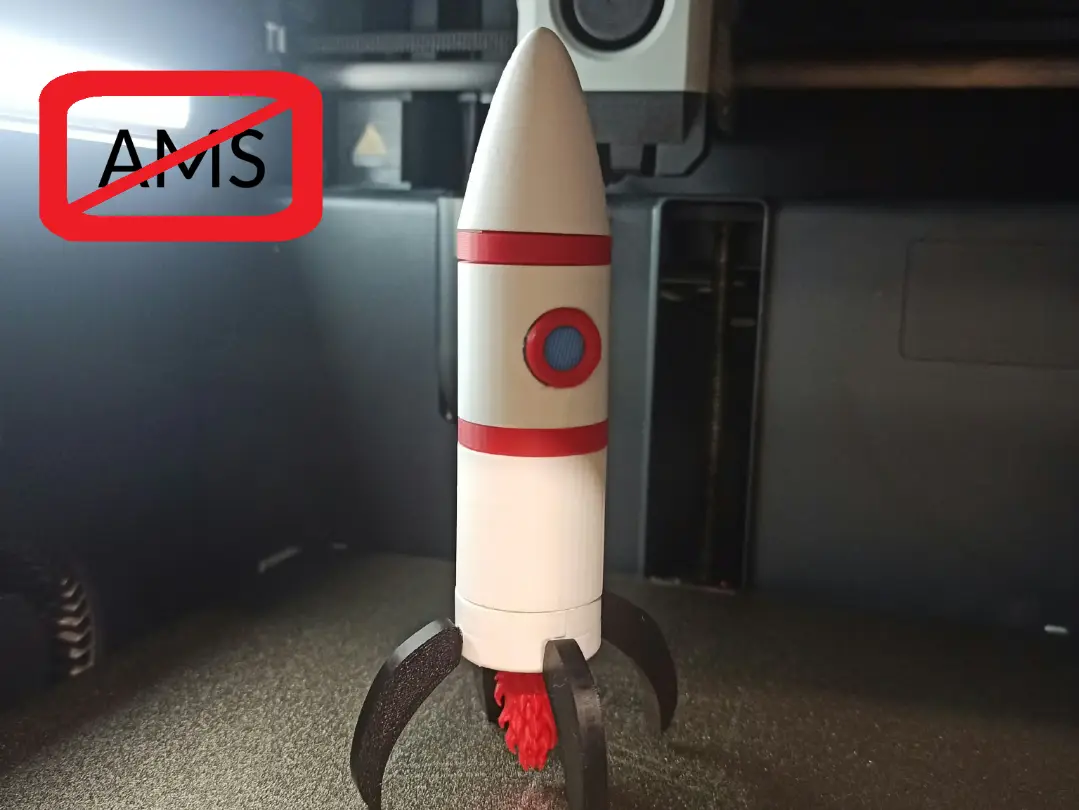

A rocket without AMS — modelo 3D

A rocket without AMS

por Michał en MakerWorld

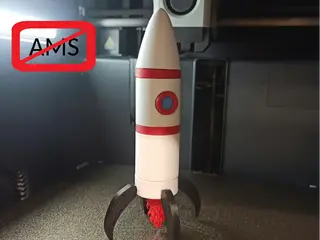

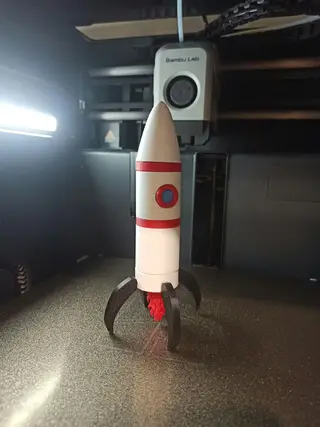

Boost MeI’d really appreciate it if you could leave a boost. It only takes a few clicks and 5 seconds of your time, but it helps me out a lot!This is a model of a space rocket. You can print it without owning an AMS system. It weighs only 47 g, which equals about $1.00 worth of filament.

Descargar en MakerWorld

MakerWorld entrega los archivos a usuarios con cuenta gratuita

Licencia

Solo uso personal

CC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual

Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.

Al descargar aceptas respetar la licencia y dar crédito a Michał.

Archivos (9)
  • top.fcstd FCSTD · 21 KB
  • body5.fcstd FCSTD · 19 KB
  • body10bottom.fcstd FCSTD · 25 KB
  • body30.fcstd FCSTD · 26 KB
  • body30window.fcstd FCSTD · 64 KB
  • leg.fcstd FCSTD · 148 KB
  • window.fcstd FCSTD · 25 KB
  • windowframe.fcstd FCSTD · 43 KB
  • core.fcstd FCSTD · 14 KB
Categoría
Educación
Formatos
FCSTD
Descargas
1
Publicado

Sobre este modelo

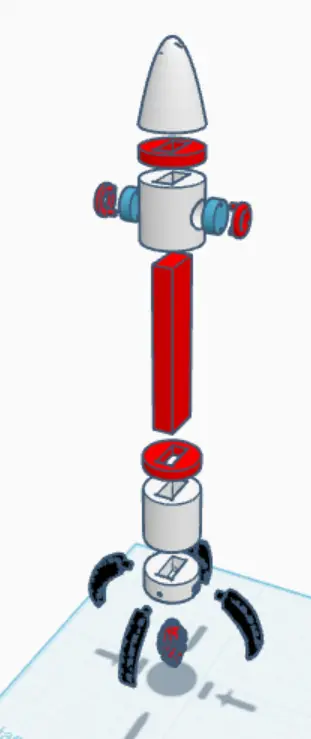

Boost MeI’d really appreciate it if you could leave a boost. It only takes a few clicks and 5 seconds of your time, but it helps me out a lot!This is a model of a space rocket. You can print it without owning an AMS system. It weighs only 47 g, which equals about $1.00 worth of filament. I created this model myself. I was browsing through the ongoing contests on MakerWorld and decided to design it out of pure boredom. I doubt I will win, but I still hope so. It would be awesome! Here is the entire assembly:

Here is the assembly of the top section only:

Here is the assembly of the middle section only:

Here is the assembly of the bottom section only:

And here are all the separate parts together:

If any parts are too tight to fit together, you can easily fix it using pliers and sandpaper. I highly recommend using sandpaper for the windows. For the frame in the very middle of the rocket, you might need both sandpaper and a hammer – it has a tight fit, so be careful not to break it. I would really appreciate it if you could print the model, download it, give it a thumbs up, and add it to your collection. If you like my work, please consider leaving a boost and writing a comment – preferably with a good rating. I hope you enjoy it!

Descripción original del autor, publicada en MakerWorld.
