A Multipurpose Tripod Stand
por gillis en Printables

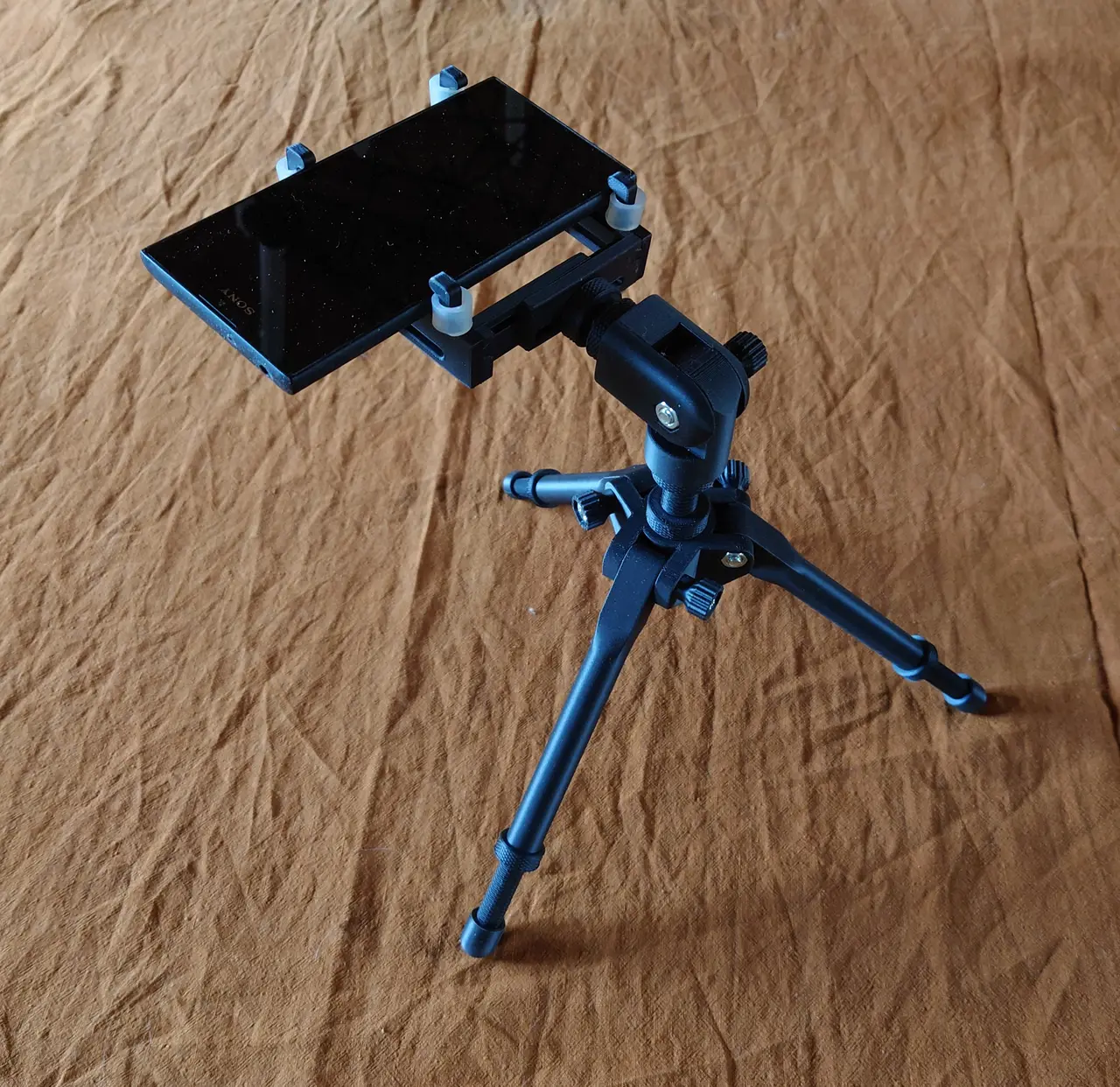

A tripod stand holder for mobile phone Take photos from a fixed place
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a gillis.
Archivos (68)
- DeviceHolderScrew_50mm.3mf 3MF · 1,3 MB
- DeviceHolderSwitchPlate_Manfrotto.3mf 3MF · 820 KB
- DeviceHolderSwitchPlate_Velbon.3mf 3MF · 701 KB
- DeviceHolderScrew_50mm.stl STL · 4,4 MB
- DeviceHolderSwitchPlate_Velbon.stl STL · 1,5 MB
- DeviceHolderSwitchPlate_Manfrotto.stl STL · 1,9 MB
- DeviceHolderSwitchPlateKnob.stl STL · 978 KB
- StandTripod_COMPLETE.3mf 3MF · 20,0 MB
- PhoneHolder_COMPLETE.3mf 3MF · 9,2 MB
- StandTripodBody.3mf 3MF · 542 KB
- StandTripodBodyScrewCap_M6.3mf 3MF · 932 KB
- StandTripodScrew_80mm.3mf 3MF · 1,4 MB
- StandTripodLeg.3mf 3MF · 554 KB
- StandTripodFoot.3mf 3MF · 558 KB
- StandTripodStopNut_C.3mf 3MF · 1,5 MB
- StandTripodJointConnectionUpperLarge.3mf 3MF · 598 KB
- StandTripodJointConnectionLowerLarge.3mf 3MF · 584 KB
- StandTripodJointConnectionUpper.3mf 3MF · 419 KB
- StandTripodJointConnectionLower.3mf 3MF · 415 KB
- StandTripodJointConnectionFixed.3mf 3MF · 652 KB
- StandTripodJointConnectionJointLongFixed.3mf 3MF · 1017 KB
- StandTripodBallJoint.3mf 3MF · 1,7 MB
- StandTripodBallJointScrew.3mf 3MF · 1,4 MB
- StandTripodStopNut_B_4wings.3mf 3MF · 1000 KB
- StandTripodStopNut_C_4wings.3mf 3MF · 1,3 MB
- StandTripodLegExtension.3mf 3MF · 1,1 MB
- StandTripodCennectorFtoF.3mf 3MF · 805 KB
- StandTripodExtenderConnector.3mf 3MF · 746 KB
- StandTripodScrew_80mm_horz.3mf 3MF · 957 KB
- StandTripodScrew_160mm_horz.3mf 3MF · 1,2 MB
- StandTripodScrew_160mm.3mf 3MF · 2,1 MB
- PhoneHolderArms.3mf 3MF · 73 KB
- PhoneHolderForScrewM4.3mf 3MF · 1,4 MB
- PhoneHolderAttachScrewForJoint.3mf 3MF · 1,7 MB
- StandTripodBody.stl STL · 1,7 MB
- StandTripodBodyScrewCap_M6.stl STL · 3,7 MB
- StandTripodLeg.stl STL · 1,8 MB
- StandTripodScrew_80mm.stl STL · 4,7 MB
- StandTripodStopNut_C.stl STL · 5,3 MB
- StandTripodFoot.stl STL · 2,0 MB
- StandTripodJointConnectionUpperLarge.stl STL · 2,0 MB
- StandTripodJointConnectionLowerLarge.stl STL · 2,0 MB
- StandTripodJointConnectionUpper.stl STL · 1,5 MB
- StandTripodJointConnectionLower.stl STL · 1,4 MB
- StandTripodJointConnectionFixedA.stl STL · 1,1 MB
- StandTripodJointConnectionFixedB.stl STL · 1,1 MB
- StandTripodJointConnectionJointLongFixedB.stl STL · 1,7 MB
- StandTripodJointConnectionJointLongFixedA.stl STL · 1,7 MB
- StandTripodBallJoint.stl STL · 6,4 MB
- StandTripodBallJointScrew.stl STL · 5,2 MB
- StandTripodStopNut_A.stl STL · 1,2 MB
- StandTripodStopNut_B.stl STL · 4,2 MB
- StandTripodStopNut_B_4wings.stl STL · 3,7 MB
- StandTripodStopNut_C_4wings.stl STL · 4,7 MB
- StandTripodLegExtension.stl STL · 3,6 MB
- StandTripodScrew_80mm_horz.stl STL · 3,3 MB
- StandTripodScrew_160mm_horz.stl STL · 4,2 MB
- StandTripodScrew_160mm.stl STL · 7,0 MB
- StandTripodExtenderConnector.stl STL · 2,4 MB
- StandTripodCennectorFtoF.stl STL · 2,6 MB
- Categoría
- Tecnología
- Formatos
- 3MF, STL
- Descargas
- 388
- Publicado
Sobre este modelo
A tripod stand holder for soldering, mobile phone magnifier when soldering, or digital distance meter, holder for laser et cetera or … maybe a way to document your work by attaching a mobile phone/camera and take pictures along the way… 28 mars added stop nuts with wings, see under Accessories also added 3MF_SwitchPlates and STL_SwitchPlates, Manfrotto and Velbon Note that the screw to the knob to the switchplates is M4 round head (as the other M4). Don't tighten too much … you will notice … 31 mars added JointConnectionFixed for fixed angle in 15 degrees step, see under Accessories (and see images below)
Quite a few parts First of all you need this hardware 4 screws and nuts M6 x 40 (hexagonal head for the screw) 3 screws and nuts M4 x 25 (round head for the screw and 19 mm should be enough)
For the soldering item/phone stand I've cut 1 cm of a silicone hose (diameter 12mm outer, 8 mm inner) for each hook ( a common beer-maker hose :-))
Glue if neccessary (the phone stand) Leg Body and Phoneholder SwitchPlate
JointConnectionFixed

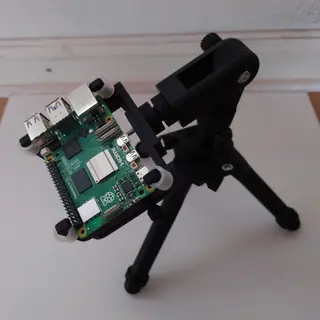

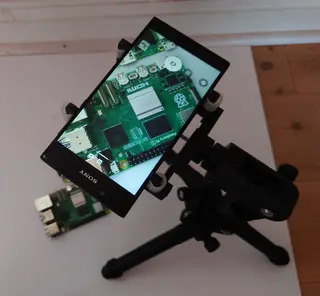

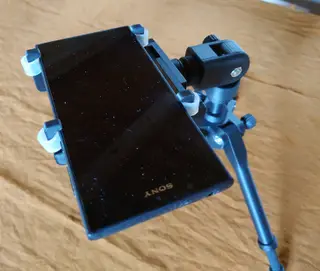

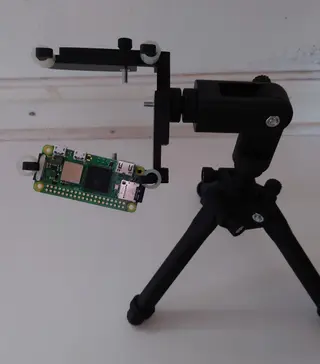

Other photos
Feel free https://www.paypal.com/paypalme/gillislindstrom
Descripción original del autor, publicada en Printables.
