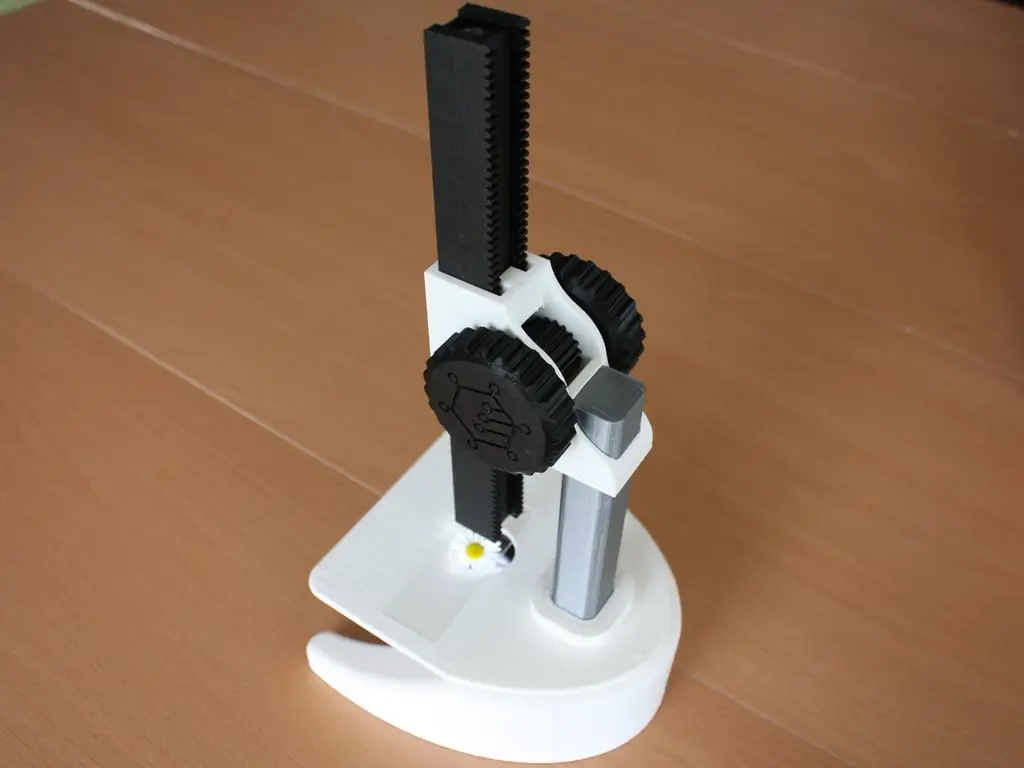

A Fully Printable Microscope

Well almost, you still need to locate 4 lenses from some disposable cameras and a light source. For the light source use an LED or mirror, whatever you have. I used a cheap LED wall light from Wal-Mart. For the lenses, I went to a local photography shop and they were very kind to give me an entire bag full (Thank you Lens and Shutter! http://www.lensandshutter.com/). Since I had so many, I designed it to work with them all. There is a different optical tube that you have to print for the Fujifilm lenses (11.9mm outer diameter) vs. the Kodak lenses (13.2mm outer diameter). It should work with the following as I measured them all and will likely work with others as well: (CAUTION there is a significant shock hazard if you plan to open a flash camera from the capacitor!) Fujifilm QuickSnap Outdoor Fujifilm QuickSnap Flash Fujifilm Flash Kodak FunSaver Flash Kodak unaned Kodak Max Outdoor I will try to keep an updated list of potential online sources for these lenses and other components at Project.Parts: https://project.parts/project/77450/ The magnification of this microscope is expected be near 74x (still need to confirm precisely). Upgrades: Focus Lock: : http://www.thingiverse.com/thing:85698 Smartphone Adapter: http://www.thingiverse.com/thing:92355 This project was also inspired by this excellent project: http://www.funsci.com/fun3_en/ucomp1/ucomp1.htm and this: http://www.thingiverse.com/thing:31632
