90 Degree Bracket for 2020 Extrusion for Ender-5, Pro, Plus
por EB3D_Printing en Printables
This is a remix of:https://www.thingiverse.com/thing:3644062 I liked the design of the original bracket, but wanted to…
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a EB3D_Printing.
Archivos (2)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 2,721
- Publicado
Sobre este modelo
This is a remix of:
https://www.thingiverse.com/thing:3644062

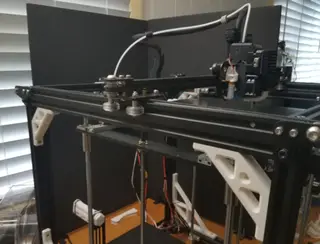

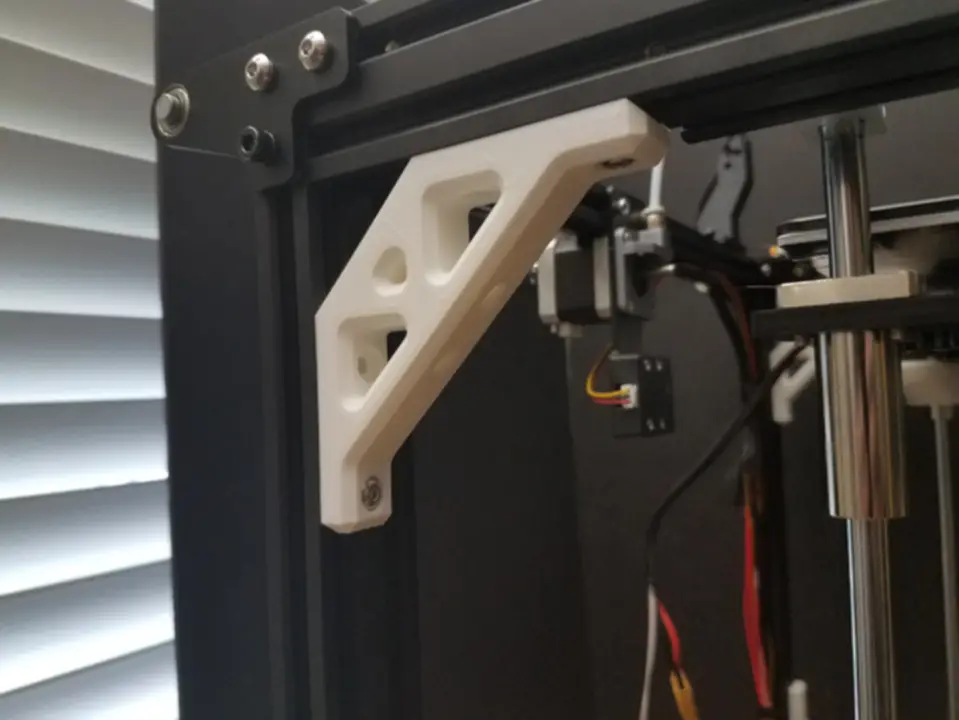

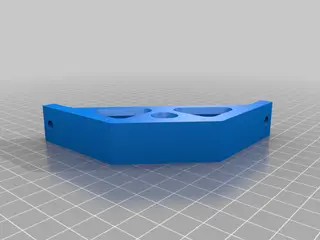

I liked the design of the original bracket, but wanted to try and make it a little smaller. This design is about 50% scale of the larger bracket. Included is both a 2 bolt and 4 bolt version. Bolt holes are for a 5mm x 12mm Button Head hex bolt to be used with matching T-nuts. Two bolts should hold just fine, but for added security, I also included a 4 bolt version.
Print Settings
Printer Brand:
Creality
Printer: Ender 5
Rafts:
No
Supports: No
Resolution:
.2
Infill: 15% Gyroid
Filament:
Duramic3D PLA+ White
Category: 3D Printer Parts
Descripción original del autor, publicada en Printables.
