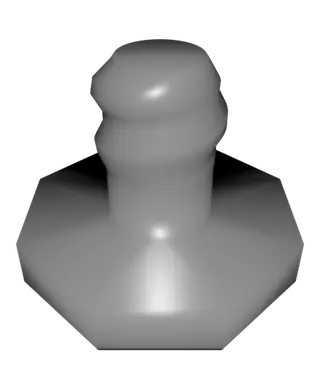

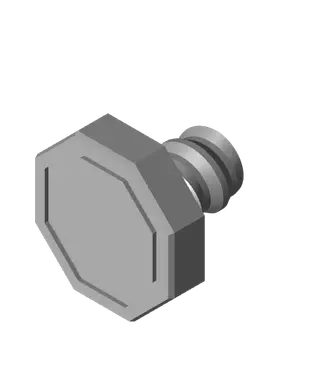

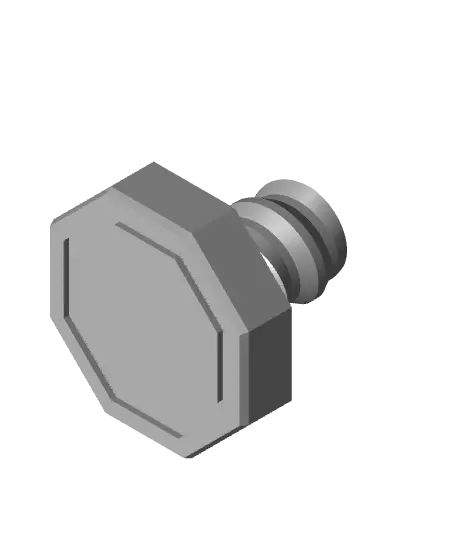

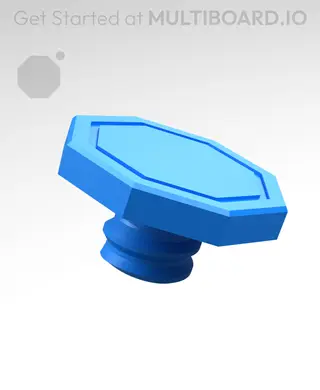

9 mm Small Thread, Flat Head, Shank Bolt

This bolt has a “small thread” that can screw into the pegboard holes, or into any bolt/rod that has a small thread hole.

The 9mm thread length is perfect for attaching standard 3mm accessories to Multiboard tiles without protruding through the other side, making it ideal for Multibords mounted on a surface.

The shaft also has a 3mm shank allowing you to fasten threaded accessories without the bolt causing any unintended shifting or rotation of the accessory.

It has a “flat” head to facilitate clearance in case the bolt head is in the way (like a corner in a shelf bracket).

It doesn’t have any holes, so you can’t insert accessories into it.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io
