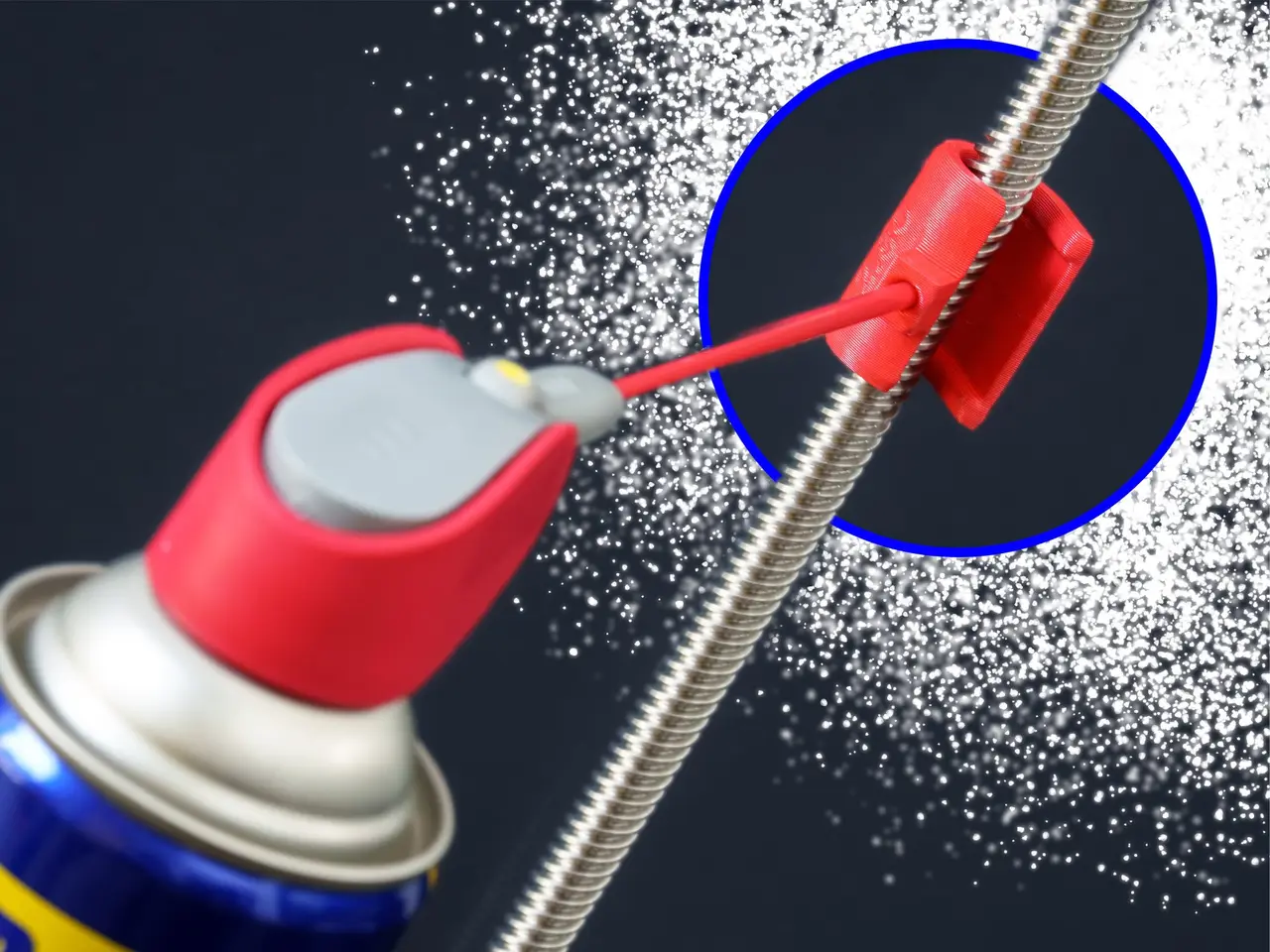

8mm Overspray Shield
por Oliver K en Thingiverse
Remixes of HenrytheV's original and side-protection Z Rod Grease Can Focusers: - Duplicated the bottom web on top so the parts can be used either way up. - Added material around the tapered straw entry. - Versions for straws measuring 2.20mm, 2.80mm and 3.34mm diameter. - Made the parts a bit...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Oliver K.
Archivos (14)
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_220.STL STL · 3,0 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_220.STL STL · 3,1 MB
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_280.STL STL · 3,1 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_280.STL STL · 3,2 MB
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_335.STL STL · 3,0 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_335.STL STL · 3,1 MB
- 8mm_Z-SCREW_GREASE_APPLICATOR.STL STL · 112 KB
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_220.STEP STEP · 1,6 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_220.STEP STEP · 1,7 MB
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_280.STEP STEP · 1,8 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_280.STEP STEP · 2,0 MB
- 8mm_SPRAY_LUBE_SHIELD_ANGLED_335.STEP STEP · 1,3 MB
- 8mm_SPRAY_LUBE_SHIELD_STRAIGHT_335.STEP STEP · 1,5 MB
- 8mm_Z-SCREW_GREASE_APPLICATOR.STEP STEP · 249 KB
- Categoría
- Para tu impresora
- Formatos
- STL, STEP
- Descargas
- 1,969
- Publicado
Sobre este modelo

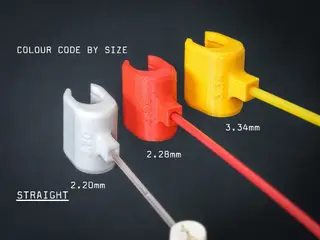

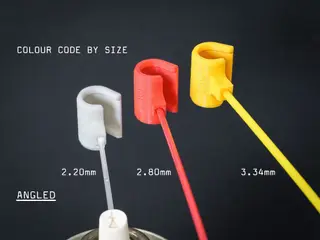

Remixes of HenrytheV's original and side-protection Z Rod Grease Can Focusers: - Duplicated the bottom web on top so the parts can be used either way up. - Added material around the tapered straw entry. - Versions for straws measuring 2.20mm, 2.80mm and 3.34mm diameter. - Made the parts a bit smaller & lighter.

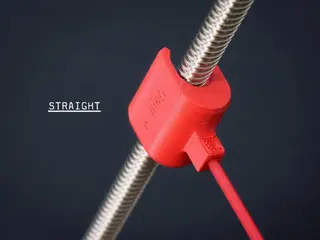

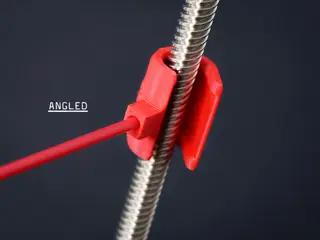

Both versions are very effective when used gently and in combination with a tissue/rag. Images updated with some suggestions on lead-screw lubrication. Pro-ish tip: cut the straw down for more control - reduces bounce & wiggle.
Check out more useful things from Department_Nine!
All trademarks or registered trademarks are the property of their respective holders. No relationship exists or is implied between Department 9 or any other company.
Descripción original del autor, publicada en Thingiverse.
