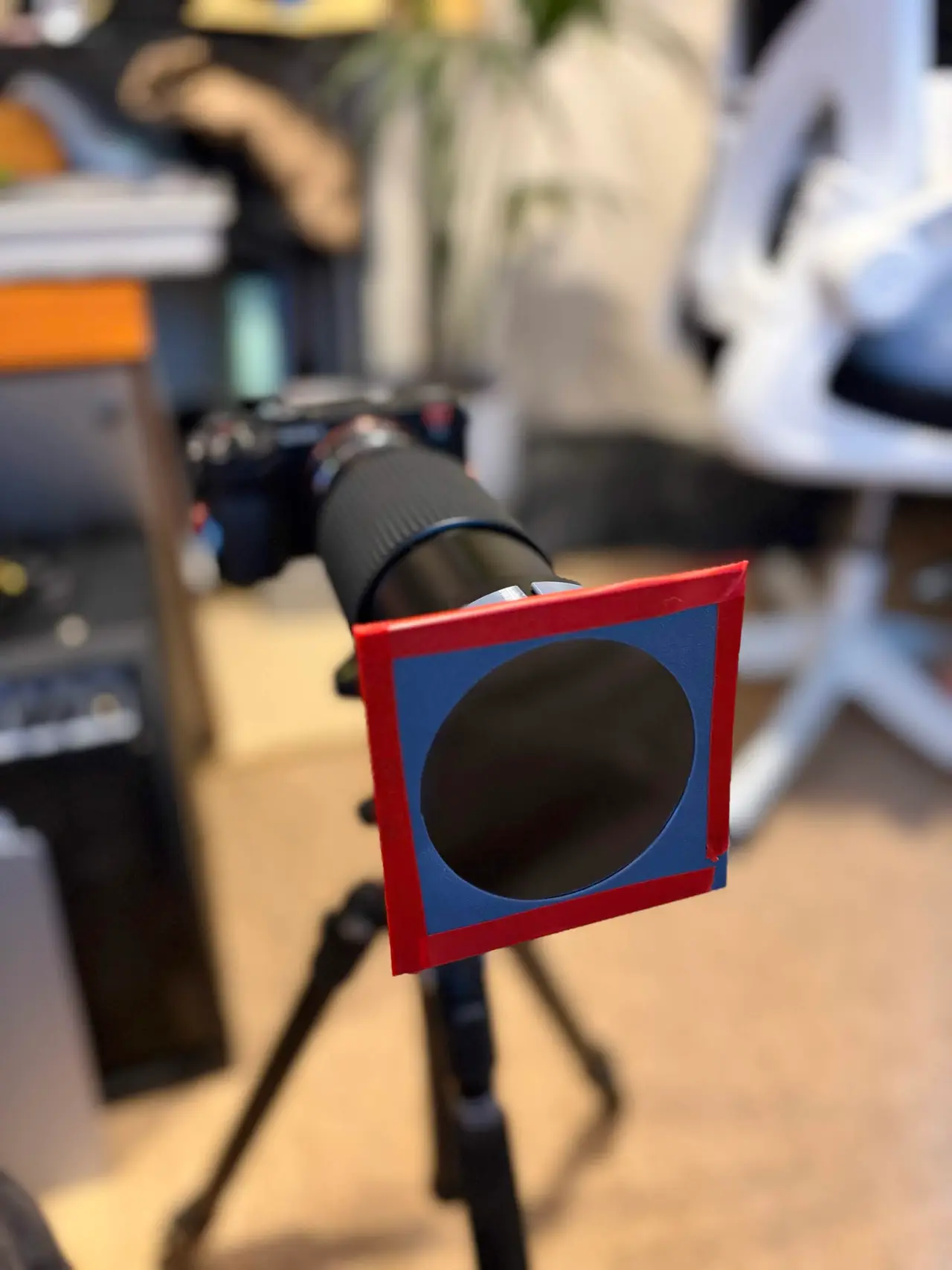

ø77 Slip-On Solar Filter Cell for Camera lens (Baader AstroSolar / OD5 film)
por Benjamin K en Thangs
Two plates. Film sandwiched between them, taped round the outside edge, and the whole thing is an interference fit over the barrel. No screws, no glue.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Benjamin K.
Archivos (2)
- Fit Photo Solar Sheet - Press Side.step STEP · 9 KB
- Fit Photo Solar Sheet - Camera Side.step STEP · 31 KB
- Categoría
- Tecnología
- Formatos
- STEP
- Descargas
- 2
- Publicado
Sobre este modelo

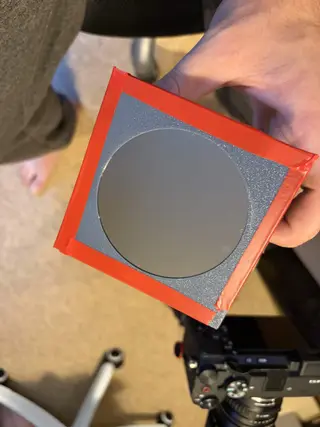

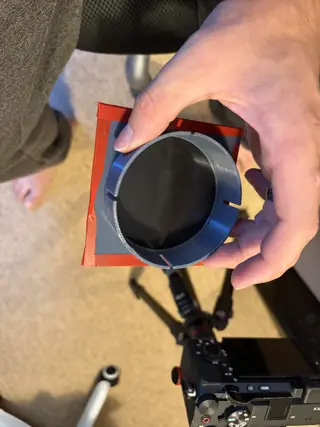

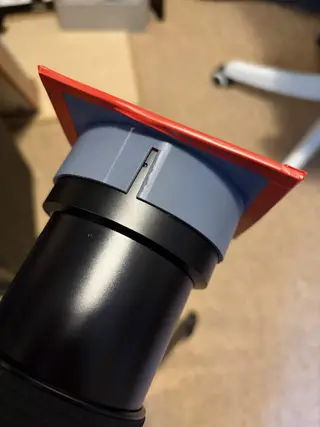

Two plates. Film sandwiched between them, taped round the outside edge, and the whole thing is an interference fit over the barrel. No screws, no glue.
Sized on a Tokina AT-X 100-300mm f/4. Check your own barrel with calipers first. a 77mm filter thread 80mm outside. Print a 10mm slice of the skirt to test the fit before the full part.
Lay the film in slack. Stretched AstroSolar is measurably worse than slack AstroSolar; wrinkles are fine. Tape only round the outer edge, NOT across the aperture. Clear aperture is 80mm, which clears the 75mm entrance pupil of a 300mm f/4.
PETG or ASA, not PLA. this sits in direct sun for hours and PLA will creep. Minimum 4 perimeters, or the wall glows light around the film.
Safety: certified ND5 solar film only, never photographic ND. Check for pinholes against a bare bulb before every session. Tether it. Camera use only direct viewing needs ISO 12312-2 eyewear.
