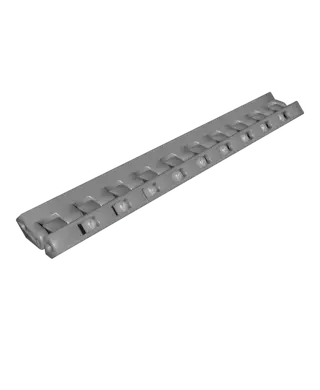

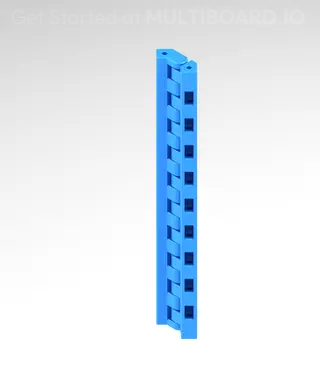

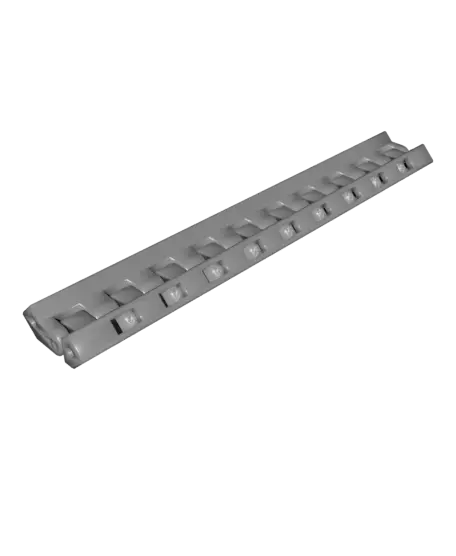

5 MU L - Multiboard Hinge Beam

Multiboard Beams are designed to connect with tiles or plates to form 3D structures. They attach to tiles or plates using Dual Clips (https://link.Multiboard.io/dual-clips). Beams can also connect to each other using Dual Clips.

The beam ends have holes for filament pieces to be inserted. The filament is used to secure other connected beams or lock the side dual clips into place.

This part also has small holes that allow you to remove dual clips with a small Allen key.

This is a 5 MU (125 mm) beam that fits with 6 MU tiles. They don't have corners or end caps.

This part comes with two tolerances: Standard and Tight. Standard works for most printers. Tight works for well calibrated printers.

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

---

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts to create the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
