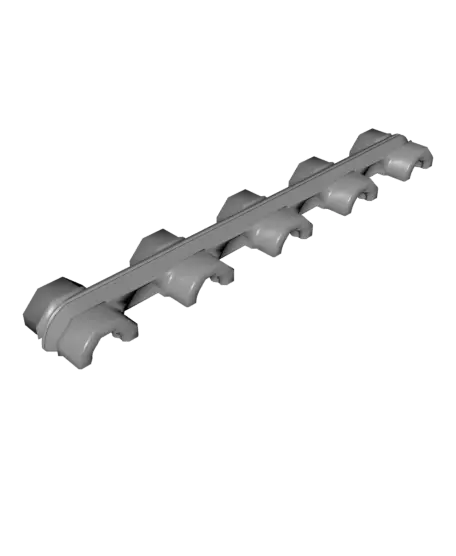

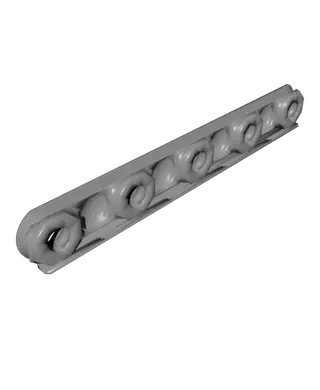

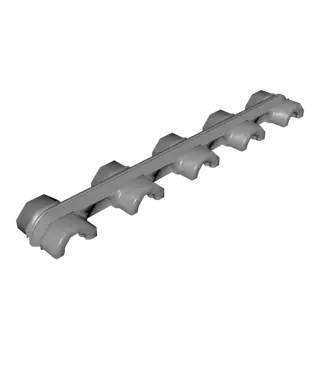

5 MU Fix Point Bolt-Locked Insert - Rail

Rails allow you to slide-on accessories that have a negative Rail, like "Rail Multibins" or "Shelf Rail Sliders". This Rail is 5 Multiholes long.

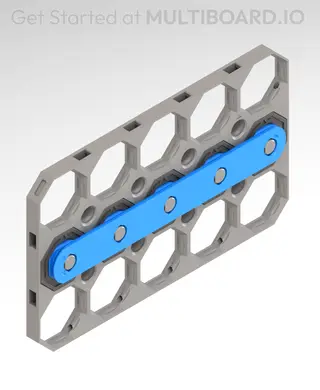

This is a "Insert" Rail that can be attached to the Multiboard Snaps (https://link.Multiboard.io/snaps) (Weight Bearing Snaps (https://than.gs/m/1311034) are recommended).

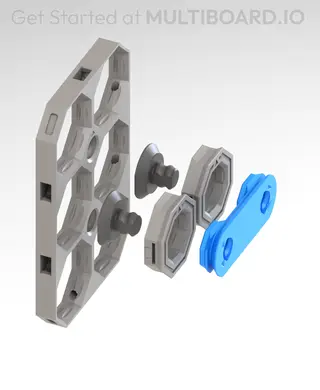

"Bolt-Lock" the Rail into place by screwing in a "Small Thread Fix Point (https://than.gs/m/1123334)" from the back of the Snap, this way the Rail won't slip out.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).

---

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
