4x5 Custom Macro Pad Case - 20 Key, Pro Micro

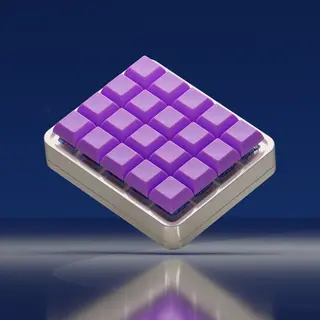

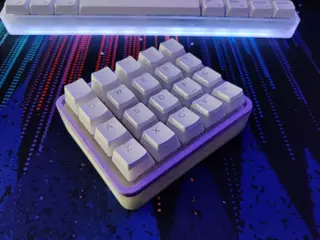

A 3D printed case for a 20 key (4 by 5) mechanical macro pad. Three parts: a switch plate, a middle ring and a bottom. It is designed around the SparkFun Pro Micro, either the cheaper micro USB version or the USB-C version.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Michael L.
Archivos (3)
- 4x5Switchplate.stl STL · 60 KB
- 4x5Ring.stl STL · 14 KB
- 4x5Bottom.obj OBJ · 155 KB
- Categoría
- Herramientas
- Formatos
- STL, OBJ
- Descargas
- 2
- Publicado
Sobre este modelo

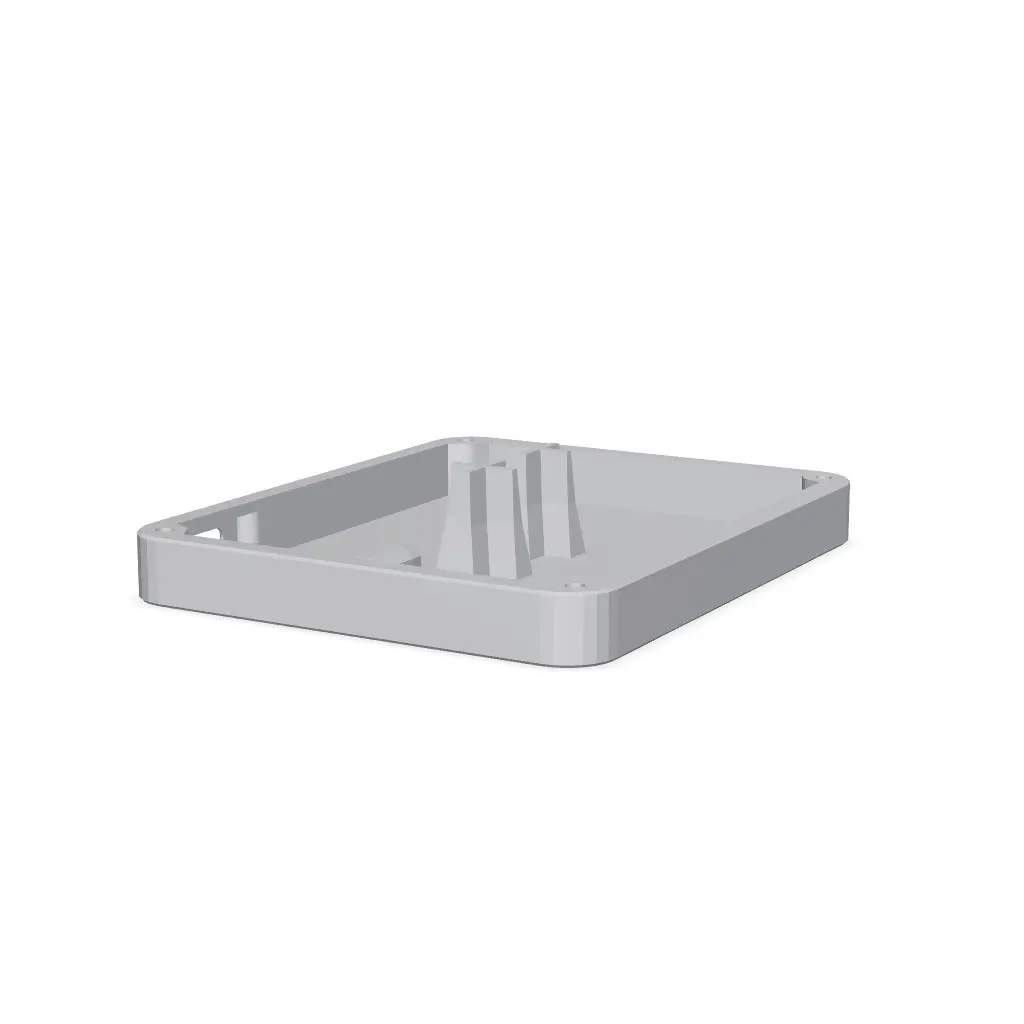

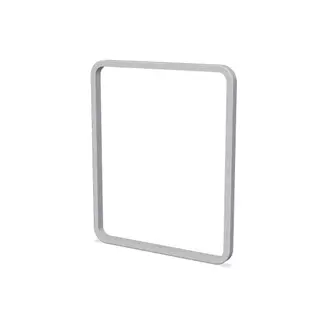

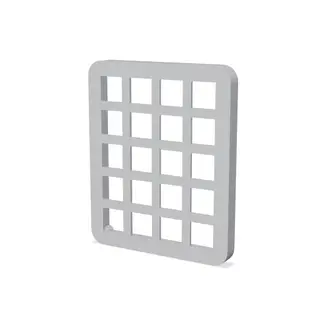

A 3D printed case for a 20 key (4 by 5) mechanical macro pad. Three parts: a switch plate, a middle ring and a bottom. It is designed around the SparkFun Pro Micro, either the cheaper micro USB version or the USB-C version. Files included - 4x5Switchplate.stl - top plate that holds the switches - 4x5Ring.stl - middle spacer ring - 4x5Bottom.obj - bottom shell with the controller mount Electronics
Designed for this microcontroller: SparkFun Pro Micro (https://www.sparkfun.com/products/12640). You can use either the cheaper micro USB Pro Micro or the USB-C version.
I lost the Arduino code so good luck :D
Made in Fusion 360. Also available on - Printables (https://www.printables.com/model/416783) - Thangs (https://thangs.com/designer/beekrbonkr/3d-model/1611490)
