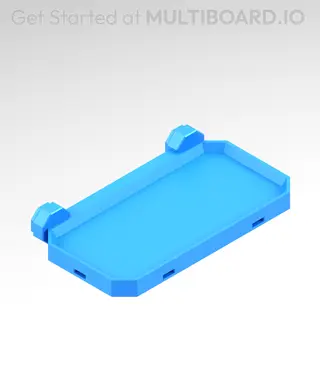

4x2 MU - Simple Bolt-Locked Shelf

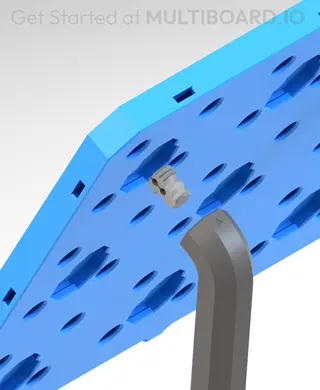

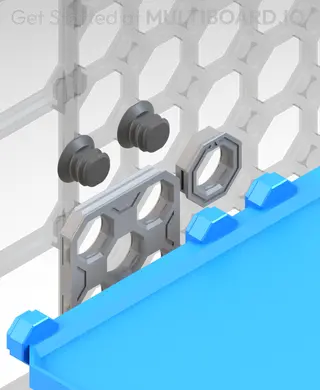

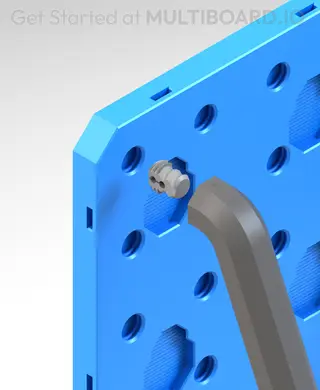

This shelf connects to Moderate Snaps (https://than.gs/m/1311034) or Heavy Hook Snaps (https://than.gs/m/1311032) and is secured using Locking Bolts (https://than.gs/m/1310062). Keep in mind, Heavy Hook Snaps are stronger than Moderate Snaps but they don't work with flush mounted boards.

Special support brackets (https://link.Multiboard.io/bolt-locked-shelf-support-brackets) can also be added to this Shelf for extra support.

This shelf is 2x1 cells (100x50 mm)

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).

---

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
