4x1 Shelf - Rail Slider
por Jonathan K en Thangs

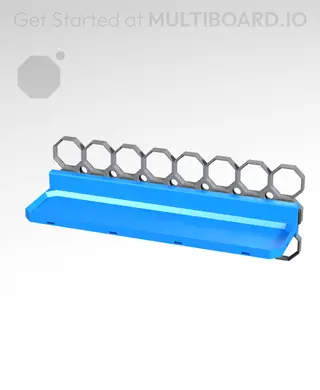

Rail Sliders slide onto Multipoint Rails. This Rail Slider has a shelf.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicionesMULTIBOARD LICENCE - Download Terms and Conditions - 12-June-2024
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Jonathan K.
Archivos (1)
- 4x1 Shelf - Rail Slider.stl STL · 224 KB
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 822
- Publicado
Sobre este modelo
Rail Sliders slide onto Multipoint Rails. This Rail Slider has a shelf.

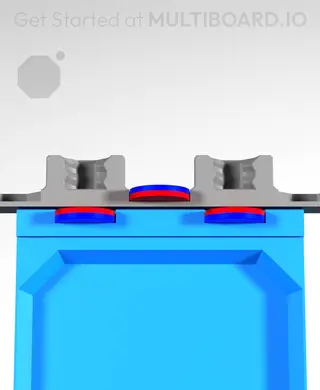

Rail Sliders have magnet holes for 10x2 N52 Neodymium Disk Magnets. Magnets are inserted in a way that repel each other (look at the images.)
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.
The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
For more information about printer settings, click here (https://multiboard.io/knowledge-hub/printing-guidelines).
---
This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
